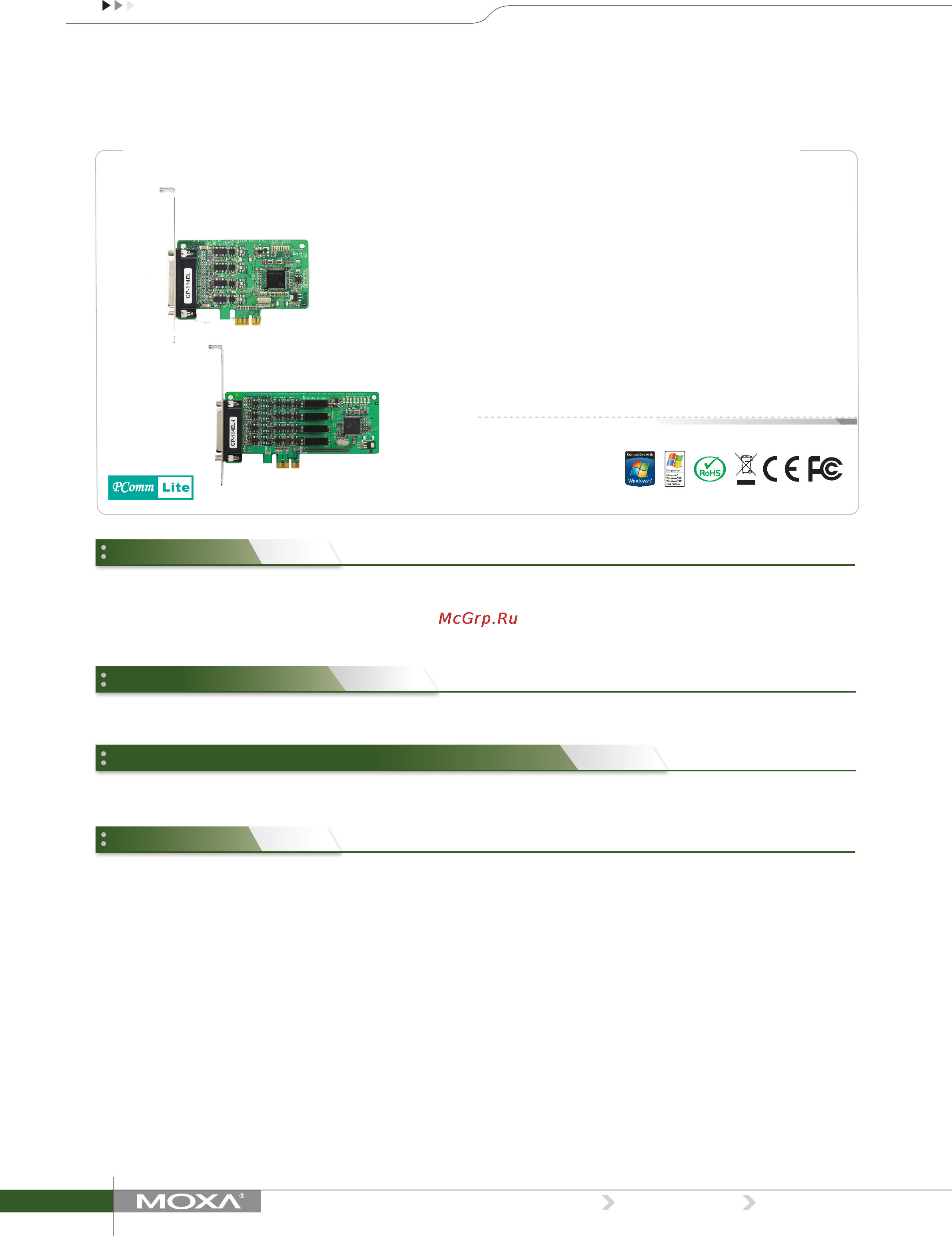

CP-114EL/EL-I
4-port RS-232/422/485 PCI Express boards with optional 2 kV isolation
The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards
designed for POS and ATM applications. The boards are a top choice
of industrial automation engineers and system integrators, and support
many different operating systems, including Windows and Linux. In
The CP-114EL and CP-114EL-I are low profile boards that are
compatible with any PCI Express slot. The boards require only a 3.3
Moxa continues to support a wide variety of operating systems, and
the CP-114EL/EL-I boards are no exception. Reliable Windows COM
addition, each of the boards’ 4 RS-232/422/485 serial ports supports
a super fast 921.6 kbps baudrate. The CP-114EL and CP-114EL-I
provide full modem control signals to ensure compatibility with a wide
range of serial peripherals, and their PCI Express “x1” classification
allows the boards to be installed in any PCI Express slot.
VDC power supply, which means that the boards fit any host computer,
ranging from shoebox to standard-sized PCs.
and Linux TTY drivers are provided for all Moxa boards, and other
operating systems, such as WEPOS, are also supported for embedded
integration.
CP-114EL
CP-114EL-I
› PCI Express x1 compliant
› 921.6 kbps maximum baudrate for super fast data transmission
› 128-byte FIFO and on-chip H/W, S/W flow control
› Low profile form factor fits small-sized PCs
› Drivers provided for a broad selection of operating systems,
including the latest Windows and Linux
› 15 kV ESD protection on the board
Hardware
Comm. Controller: 16C550C compatible
Bus: PCI Express x1
Connector: DB44 female
Serial Interface
Number of Ports: 4
Serial Standards: RS-232/422/485
Max. No. of Boards per PC: 4
Serial Line Protection
ESD Protection: 15 kV on the board
Electrical Isolation: 2 kV (CP-114EL-I only)
Performance
Baudrate: 50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND
Operating Systems
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows
XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012
R2 (x64), DOS
Fixed TTY Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x
Note: Please refer to Moxa’s website for the latest driver support information.
Physical Characteristics
Dimensions:
CP-114EL: 67.21 x 103 mm (2.69 x 4.06 in)
CP-114EL-I: 67.21 x 135 mm (2.69 x 5.31 in)
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Specifications
Overview
Smaller Form Factor
Drivers Provided for Windows, Linux, and Unix
1
www.moxa.com
info@moxa.com
Multiport Serial Boards
