Moxa CP-114EL-I-DB25M [2/2] Ordering information

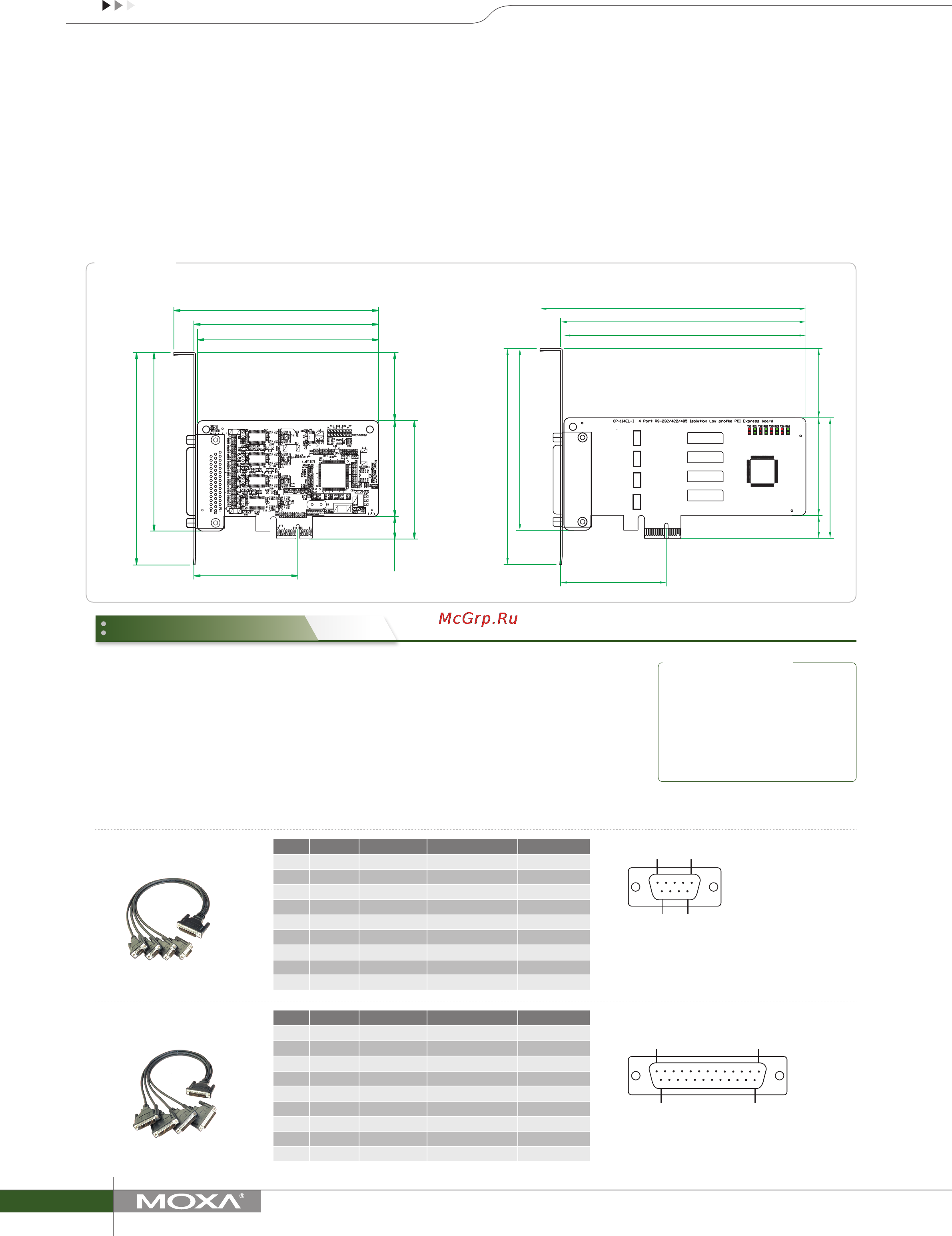

Dimensions

Unit: mm (inch)

CP-114EL CP-114EL-I

14 25

6 9

CBL-M44M9x4-50

DB44 male to DB9 male x 4

(50 cm cable)

DB9 male

DB25 male

CBL-M44M25x4-50

DB44 male to DB25 male x 4

(50 cm cable)

PIN RS-232 RS-422 RS-485-4w RS-485-2w

1 DCD TxD–(A) TxD–(A) –

2 RxD TxD+(B) TxD+(B) –

3 TxD RxD+(B) RxD+(B) Data+(B)

4 DTR RxD–(A) RxD–(A) Data–(A)

5 GND GND GND GND

6 DSR – – –

7 RTS – – –

8 CTS – – –

9 – – – –

PIN RS-232 RS-422 RS-485-4w RS-485-2w

2 TxD RxD+(B) RxD+(B) Data+(B)

3 RxD TxD+(B) TxD+(B) –

4 RTS – – –

5 CTS – – –

6 DSR – – –

7 GND GND GND GND

8 DCD TxD–(A) TxD–(A) –

20 DTR RxD–(A) RxD–(A) Data–(A)

22 – – – –

Available Models

CP-114EL: 4-port RS-232/422/485 low proﬁle PCI Express x1 serial board

CP-114EL-I: 4-port RS-232/422/485 low proﬁle PCI Express x1 serial board with electrical isolation

CP-114EL-DB9M: 4-port RS-232/422/485 low proﬁle PCI Express x1 serial board (includes DB9 male cable)

CP-114EL-DB25M: 4-port RS-232/422/485 low proﬁle PCI Express x1 serial board (includes DB25 male cable)

CP-114EL-I-DB9M: 4-port RS-232/422/485 low proﬁle PCI Express x1 serial board with electrical isolation

(includes DB9 male cable)

CP-114EL-I-DB25M: 4-port RS-232/422/485 low proﬁle PCI Express x1 serial board with electrical isolation

(includes DB25 male cable)

Connection Options (can be purchased separately)

Package Checklist

• 1 CP-114EL or CP-114EL-I board

• Standard bracket and low proﬁle

bracket

• Documentation and software CD

• Quick installation guide (printed)

• Warranty card

Storage Temperature: -20 to 85°C (-4 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Altitude: Up to 2000 m

Note: Please contact Moxa if you require products guaranteed to function

properly at higher altitudes.

Standards and Certiﬁcations

EMC: CE, FCC

EMI: EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B

Class B

EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC

61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)

Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 684,289 hrs

Database: Telcordia (Bellcore), GB

Power Requirements

Power Consumption:

CP-114EL: 835 mA @ 3.3 V

CP-114EL-I: 1170 mA @ 3.3 V

Warranty

Warranty Period: 5 years

Details: See www.moxa.com/warranty

Ordering Information

CP-114EL-I

MOXA

148.36 (5.84)

135 (5.31)

38.63 (1.52)

54.45 (2.14)

101.34 (3.99)

120.52 (4.74)

136.93 (5.39)

59.06 (2.33)

67.21 (2.65)

12.76

(0.50)

101.34 (3.990)

59.06 (2.325)

103 (4.055)

116.36 (4.581)

38.63 (1.521)54.45 (2.144)

12.76

(0.502)

120.52 (4.745)

104.93 (4.131)

67.21 (2.646)
