Moxa CP-102EL-DB9M [2/2] Ordering information

CBL-M25M9x2-50

DB25 male to DB9 male x 2

(50 cm cable)

1 2 3 4 5

6 7 8 9

PIN RS-232

1 DCD

2 RxD

3 TxD

DB9 male

CP-102E: 2-port RS-232 PCI Express x1 serial board

CP-102EL-DB9M: 2-port RS-232 low profile PCI Express serial board (includes DB9 male cable)

Connection Options (CP-102EL only, can be purchased separately)

• 1 CP-102E or CP-102EL board

• Low profile bracket (CP-102EL only)

• Documentation and software CD

• Quick installation guide (printed)

• Warranty card

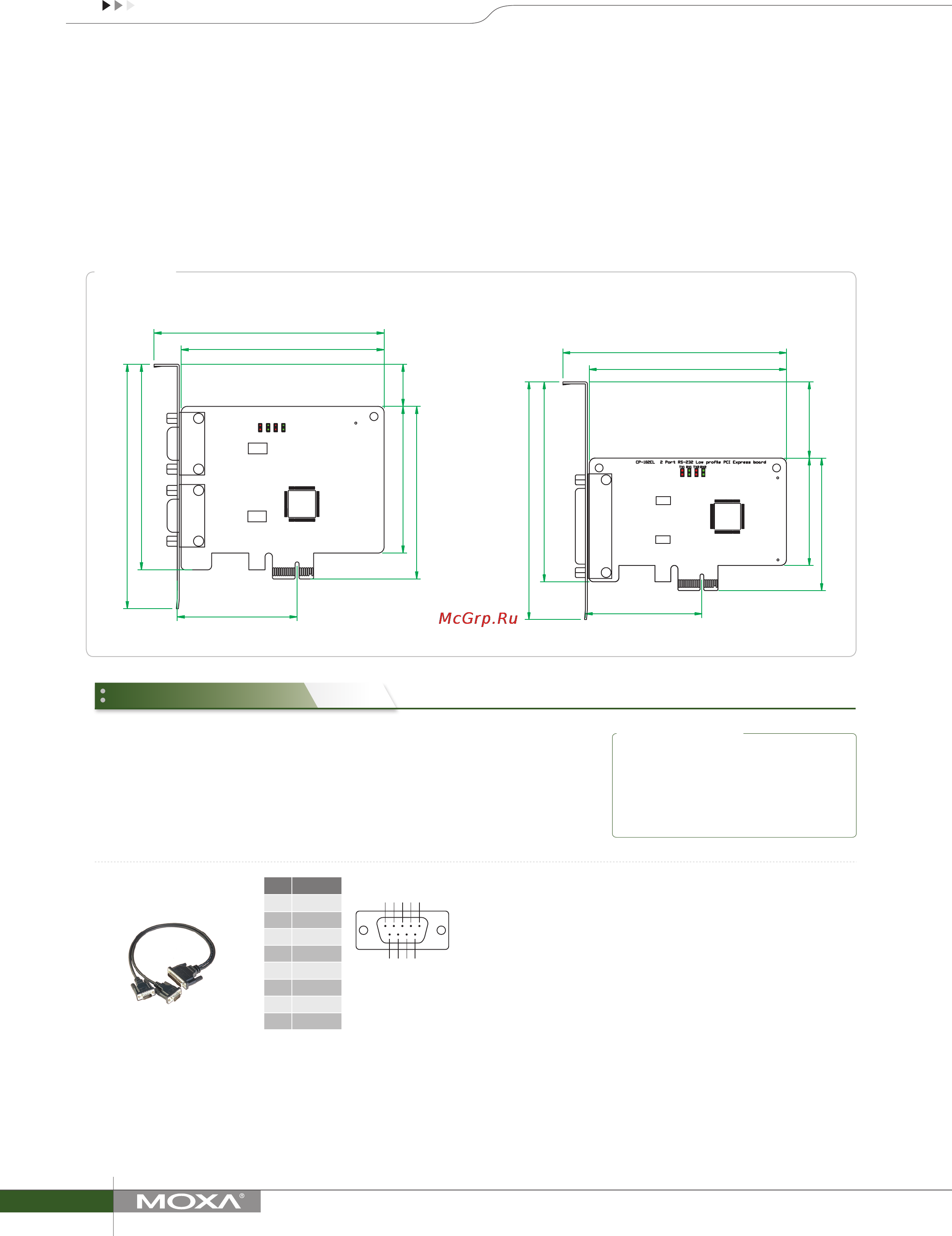

Dimensions

72.28 (2.85)

85.04 (3.35)

20.79

(0.82)

59.05 (2.32)

100 (3.94)

113.4 (4.46)

Standards and Certifications

EMC: CE, FCC

EMI: EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B

Class B

EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC

61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)

Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 3,901,175 hrs

2

© Moxa Inc. All Rights Reserved. Updated Nov. 25, 2014. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
