CP‐118EL‐A,CP‐168EL‐A,CP‐104EL‐A:Руководствопобыстройустановке

www.moxa.rusales@moxa.rusupport@moxa.ru

CP-168EL-A

CP‐168EL‐A

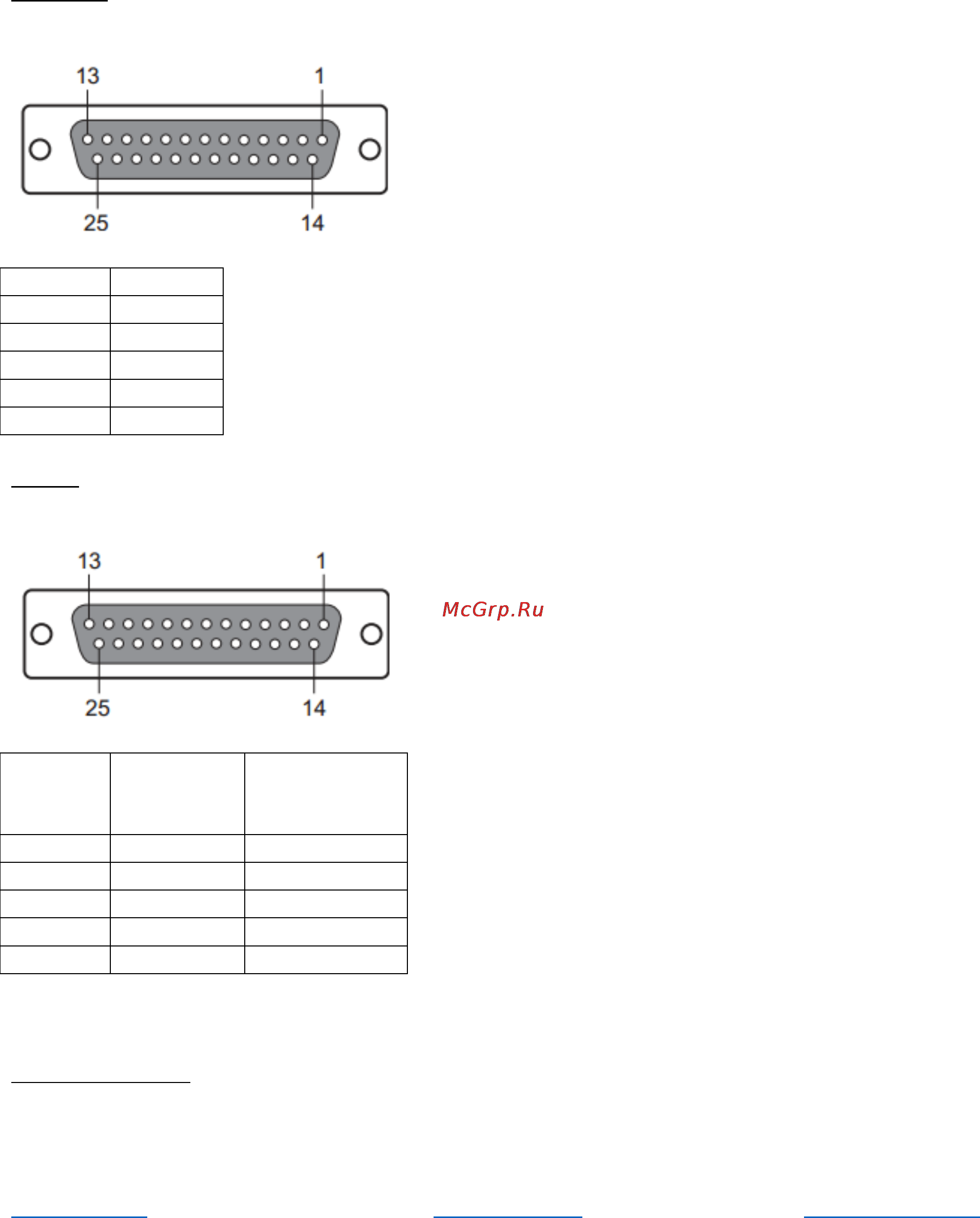

Opt8F+/Z+



DB25“мама”



Контакт RS‐422

2 RxD+(B)

3 TxD+(B)

14 RxD‐(A)

16 TxD‐(A)

7 GND

Opt8K+

DB25“мама”



Контакт RS‐422/4‐

проводный

RS‐485

2‐проводный

RS‐485

2 RxD+(B) Data+(B)

3 TxD+(B)‐‐‐

14 RxD‐(A) Data‐(A)

16 TxD‐(A)‐‐‐

7 GND GND

CP‐104EL‐A

CBL‐M44M25x4‐50:

DB44“папа”вDB25“папа”x4,5см


