Windows NT Driver Installation
1. After powering on your PC, log into NT as Administrator.
2. Copy the folder CP-104UL v2\Software\WinNT\Windows.nt to
your hard drive.
3. Open the Control Panel, click on the Network icon, and select the
Adaptors tab.
4. Click the Add button, and then Have Disk… in the Select Network
Adapter window.
5. Specify the exact path to the folder created in step 2. above.
6. Select MOXA Smartio/Industio Family multiport board in the
Select OEM Option window, and then click on OK to start installing
the driver.
5. When the Moxa Smartio/Industio Configuration Panel dialog box
appears, click on Add to open the Property window to modify port
settings and advanced FIFO configuration done by the system
automatically.
Linux Driver Installation
1. Execute the following commands from the Linux prompt:
#mount /dev/cdrom /mnt/cdrom
#cd /
#mkdir moxa
#cd moxa
#cp /mnt/cdrom/<driver directory>/mxser.tgz .
#tar xvfz mxser.tgz
2. #cd mxser
#make clean; make install
3. #cd /moxa/mxser/driver
#./msmknod
4. #modprobe mxser
5. Use the Moxa diagnostic utility to verify the driver status:
#cd /moxa/mxser/utility/diag
#./msdiag
6. Use the Moxa terminal utility to test the tty ports:
#cd /moxa/mxser/utility/term
#./msterm

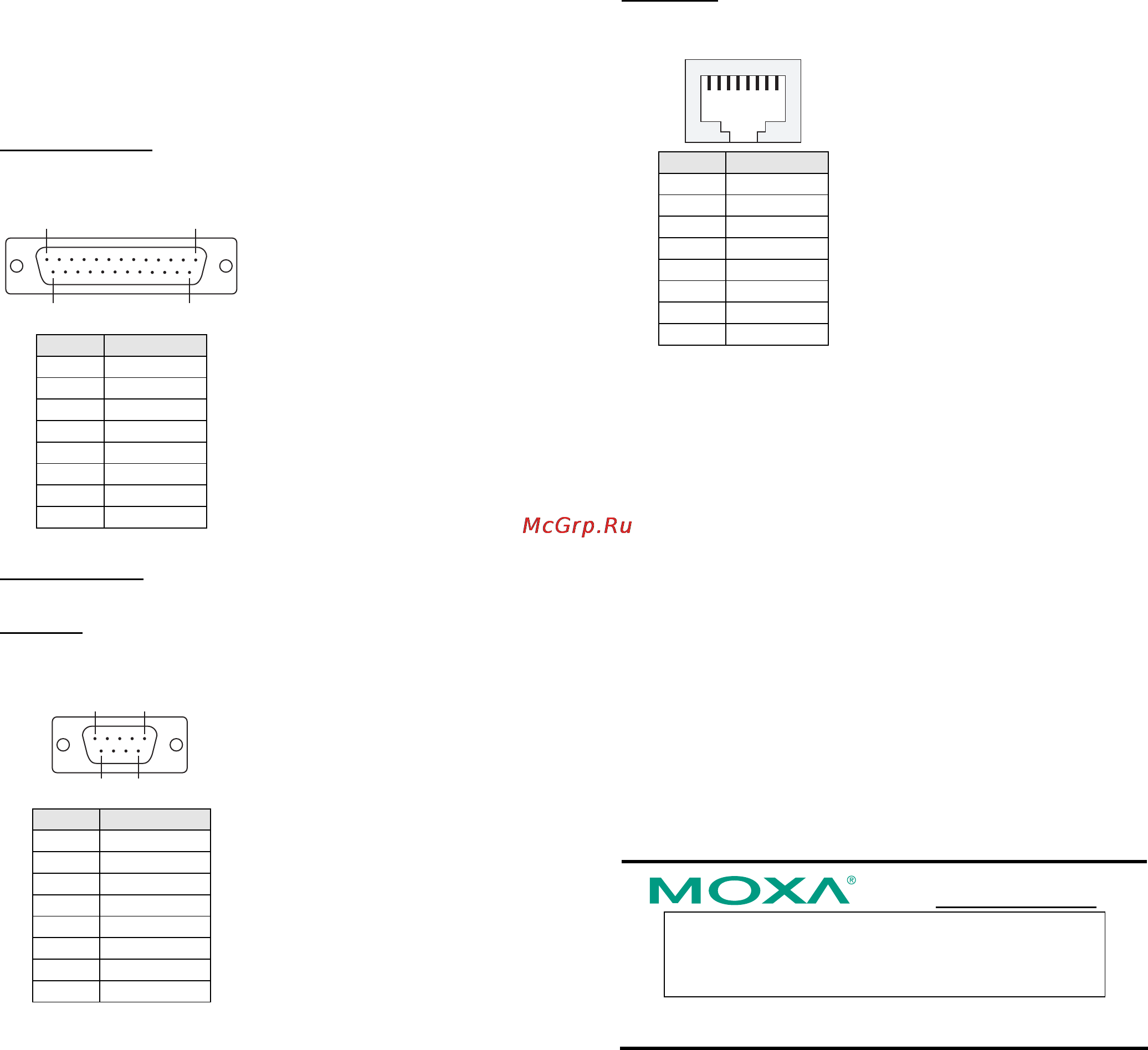

5. Pin Assignments and Cable Wiring
CP-104UL boards have one female DB44 connector on the board. You
may use the cable included as a standard accessory to connect to your
serial devices, or purchase one of the following optional accessories. In
the following figures, we give the pin assignments for the serial device
side of the four connection options.
CBL-M44M25x4-50
:
Male DB44 to male DB25 x 4
Male DB25
1
14
13
25
Pin RS-232
2 TxD
3 RxD
4 RTS
5 CTS
6 DSR
7 GND
8 DCD
20 DTR
CBL-M44M9x4-50:
Male DB44 to male DB9 x 4
Opt4-M9A
:
Male DB44 to male DB9 x 4
Male DB9
15
69
Pin RS-232
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
Opt4-RJ45A:
Male DB44 to 8-pin RJ45 x 4
8-pin RJ45
18
Pin RS-232
1 DSR
2 RTS
3 GND
4 TxD
5 RxD
6 DCD
7 CTS
8 DTR
Click here for online support:
www.moxa.com/support
The Americas: +1-714-528-6777 (toll-free: 1-888-669-2872)
Europe: +49-89-3 70 03 99-0
Asia-Pacific: +886-2-8919-1230
China: +86-21-5258-9955 (toll-free: 800-820-5036)
© 2008 Moxa Inc., all rights reserved.
