www.moxa.com
info@moxa.com
Multiport Serial Boards

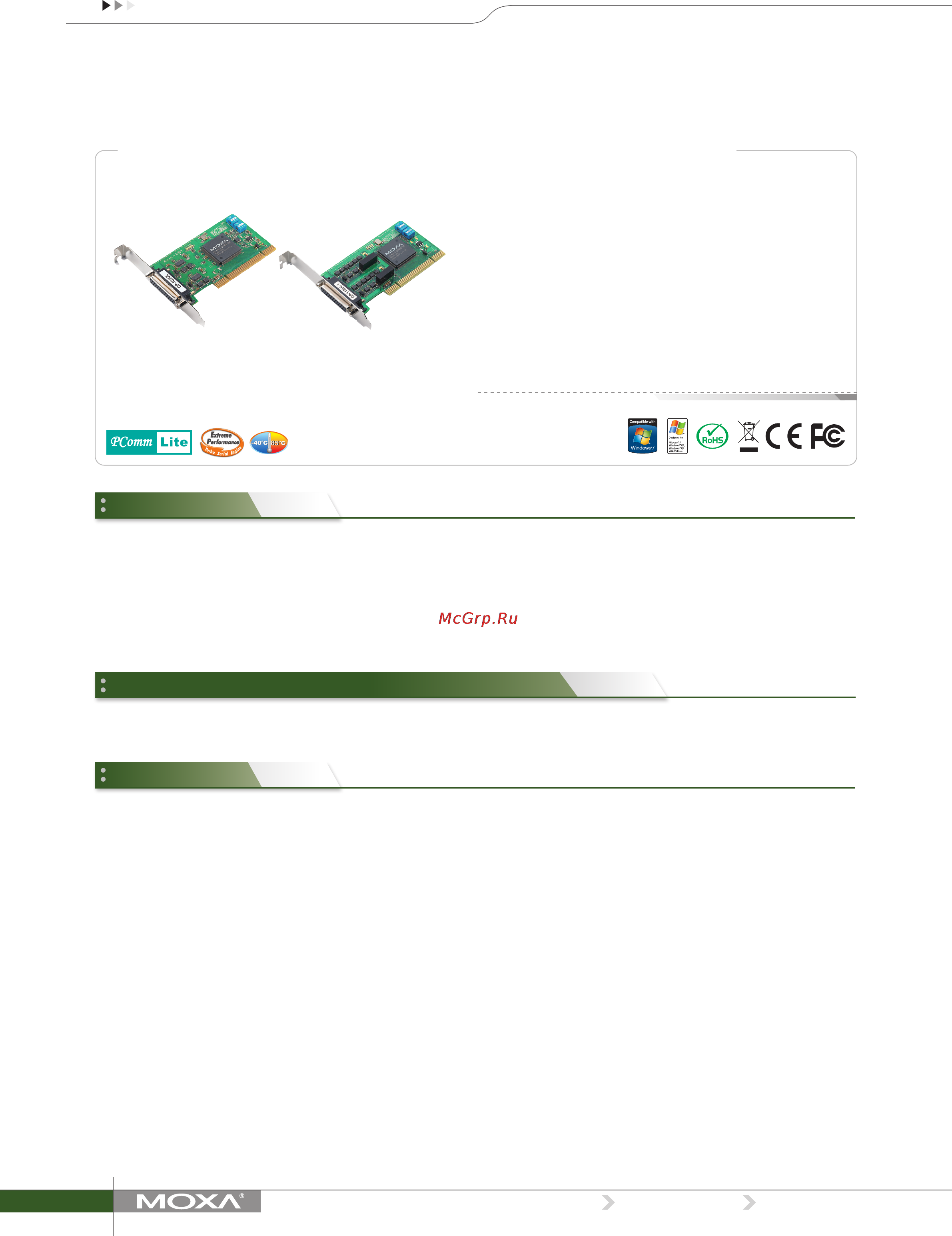

CP-112UL/UL-I Series
2-port RS-232/422/485 Universal PCI serial boards with optional
2 kV isolation
Moxa’s CP-112UL/UL-I series of multiport serial boards are designed
to be used by industrial automation system integrators for long
distance, multi-point, PC-based data acquisition applications. On-chip
Automatic Data Direction Control for precision RS-485 communication
requires precise timing control for enabling and disabling the line
driver. Moxa’s Turbo Serial Engine
TM
chip that powers the CP-112UL/
UL-I boards comes with on-chip ADDC®, which makes RS-485 as
Moxa continues to support a wide variety of operating systems, and
the CP-112UL/UL-I boards are no exception. Reliable Windows COM
easy to use as RS-232. The boards come with 2 RS-422/485 serial
ports, both of which can achieve data rates up to 921.6 kbps. In
RS-485 mode, the serial port can connect up to 31 daisy-chained
RS-485 devices within a range of 1.2 km. For long distance RS-485
communication, 2 kV electrical isolation protection is available to
prevent equipment damage.
and Linux/Unix TTY drivers are provided for all Moxa boards, and other
operating systems, such as WEPOS, are also supported for embedded
integration.
› Over 700 kbps data throughput for top performance
› 128-byte FIFO and on-chip H/W, S/W flow control
› Universal PCI compatible with 3.3/5 V PCI and PCI-X
› Serial communication speed up to 921.6 kbps
› Drivers provided for a broad selection of operating systems,
including the latest Windows and Linux
› Easy maintenance with on-board LED display
› On-board 15 kV ESD and 2 kV electrical isolation
› Wide temperature model available for -40 to 85°C environments
Hardware
Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connector: DB25 female
Serial Interface
Number of Ports: 2
Serial Standards: RS-232/422/485
Max. No. of Boards per PC: 4
ESD Protection: 15 kV on the board
Electrical Isolation: 2 kV (CP-112UL-I only)
Performance
Baudrate: 50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
I/O Address: Assigned by BIOS
IRQ: Assigned by BIOS
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND
Operating Systems
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows
XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012
R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP
Embedded
Fixed TTY Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10,
FreeBSD
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x
Note: Please refer to Moxa’s website for the latest driver support information.
Physical Characteristics
Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)
Environmental Limits
Operating Temperature:
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
CP-112UL-I
CP-112UL
Specifications
Overview
Drivers Provided for Windows, Linux, and Unix
