Технические характеристики Страница: 2

Moxa CP-112UL-DB9M [2/2] Ordering information

Moxa CP-112UL-T [2/2] Ordering information

Multiport Serial Boards

6 9

PIN RS-232 RS-422 RS-485-4W RS-485-2W

1 DCD Txd-(A) Txd-(A) –

2 RxD Txd+(B) Txd+(B) –

3 TxD RxD+(B) RxD+(B) Data+(B)

4 DTR RxD-(A) RxD-(A) Data+(A)

5 GND GND GND GND

6 DSR – – –

7 RTS – – –

8 CTS – – –

9 – – – –

DB9 maleCBL-M25M9x2-50

DB25 male to DB9 male x 2

(50 cm cable)

CP-112UL-ICP-112UL

Available Models

CP-112UL-DB9M: 2-port RS-232/422/485 low proﬁle Universal PCI board, 0 to 55°C operating

temperature (includes DB9 male cable)

CP-112UL-I-DB9M: 2-port RS-232/422/485 low proﬁle Universal PCI board with electrical isolation,

0 to 55°C operating temperature (includes DB9 male cable)

CP-112UL-T: 2-port RS-232/422/485 low proﬁle Universal PCI board, -40 to 85°C operating

temperature

CP-112UL-I-T: 2-port RS-232/422/485 low proﬁle Universal PCI board with electrical isolation,

-40 to 85°C operating temperature

Connection Options (can be purchased separately)

Package Checklist

• 1 CP-112UL or CP-112UL-I board

• Low proﬁle bracket

• Documentation and software CD

• Quick installation guide (printed)

• Warranty card

Altitude: Up to 2000 m

Note: Please contact Moxa if you require products guaranteed to function

properly at higher altitudes.

Standards and Certiﬁcations

EMC: CE, FCC

EMI: EN 55022, FCC Part 15 Subpart B Class B

EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3

Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 219,971 hrs

Database: Telcordia (Bellcore), GB

Power Requirements

Power Consumption:

CP-112UL: 175 mA @ 5 VDC

CP-112UL-I: 290 mA @ 5 VDC

Warranty

Warranty Period: 5 years

Details: See www.moxa.com/warranty

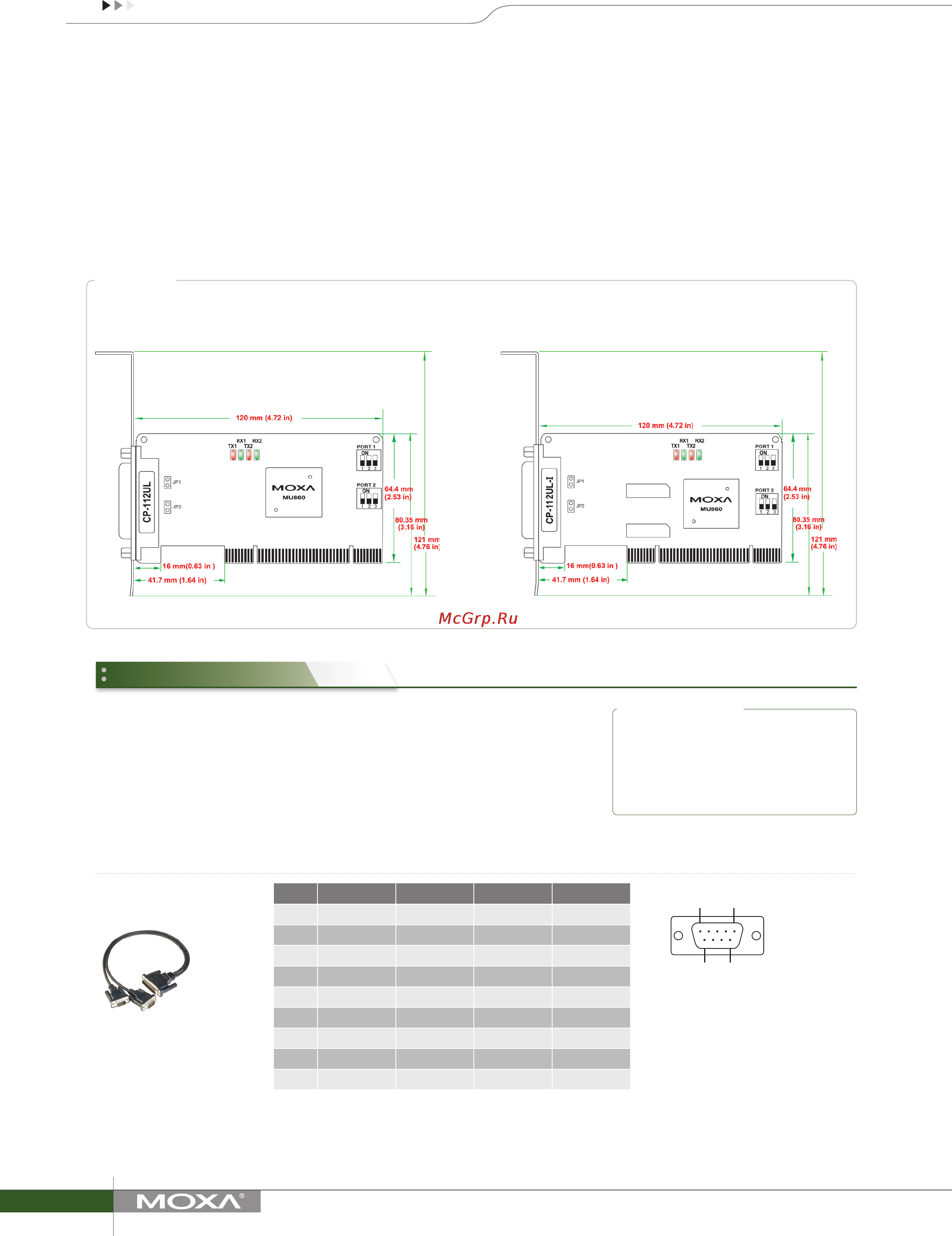

Dimensions

Unit: mm (inch)

Ordering Information

Moxa CP-112UL-DB9M [2/2] Ordering information
