PCI Express Boards Pin Assignments
5-9

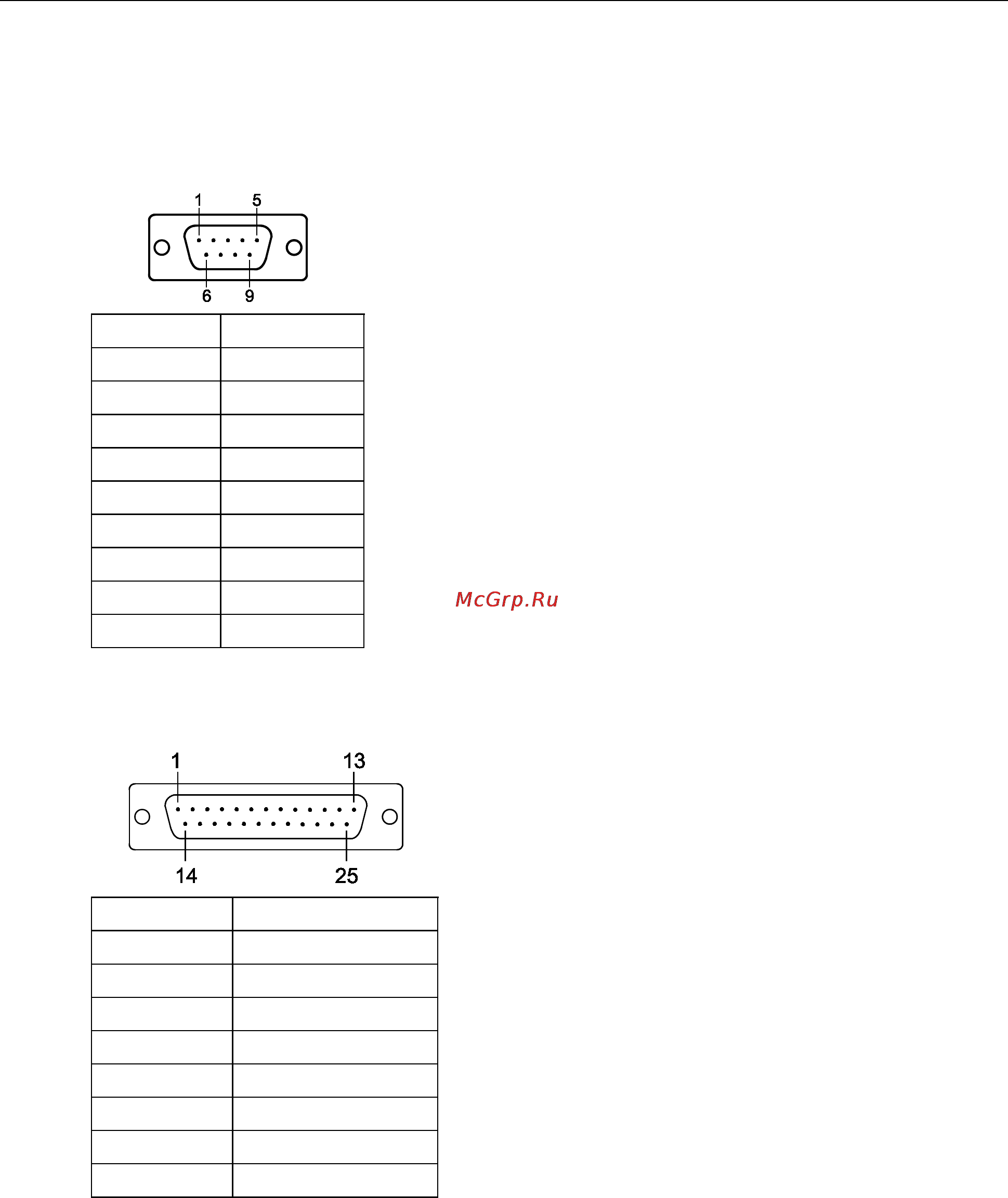

Device Side Pin Assignments
Male DB9 (CBL-M44M9x4-50)
Pin
RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
---
Male DB25 (CBL-M44M25x4-50)
Pin
RS-232
2
TxD
3
RxD
4
RTS
5
CTS
6
DSR
7
GND
8
DCD
20
DTR
