2
Multiport Serial Boards
© Moxa Inc. All Rights Reserved. Updated Mar. 28, 2014. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
On-board LEDsCP-104UL
CP-104JU
PIN RS-232
2 TxD
3 RxD
4 RTS
5 CTS
PIN RS-232
6 DSR
7 GND
8 DCD
20 DTR
CBL-M44M9x4-50
DB44 male to DB9 male x 4
(50 cm cable)
CBL-M44M25x4-50
DB44 male to DB25 male x 4
(50 cm cable)
CBL-RJ45M9-150
8-pin RJ45 to DB9 male
(150 cm cable)
CBL-RJ45M25-150
8-pin RJ45 to DB25 male
(150 cm cable)
DB25 male
DB9 male
PIN RS-232
1 DCD
2 RxD
3 TxD
4 DTR
PIN RS-232
5 GND
6 DSR
7 RTS
8 CTS
Available Models
CP-104UL-DB9M: 4-port RS-232 low profile Universal PCI serial board, 0 to 55°C operating
temperature (includes DB9 male cable)
CP-104UL-DB25M: 4-port RS-232 low profile Universal PCI serial board, 0 to 55°C operating
temperature (includes DB25 male cable)
CP-104JU: 4-port RS-232 Universal PCI serial board with RJ45 ports on the board, 0 to 55°C
operating temperature
CP-104UL-T: 4-port RS-232 low profile Universal PCI serial board, -40 to 85°C operating temperature
CP-104JU-T: 4-port RS-232 Universal PCI serial board with RJ45 ports on the board, -40 to 85°C
operating temperature
Connection Options (can be purchased separately)
Package Checklist
• 1 CP-104UL or CP-104JU board
• Low profile bracket (CP-104UL only)
• DB9-M or DB25-M cable included
(CP-104UL only)
• Documentation and software CD
• Quick installation guide (printed)
• Warranty card

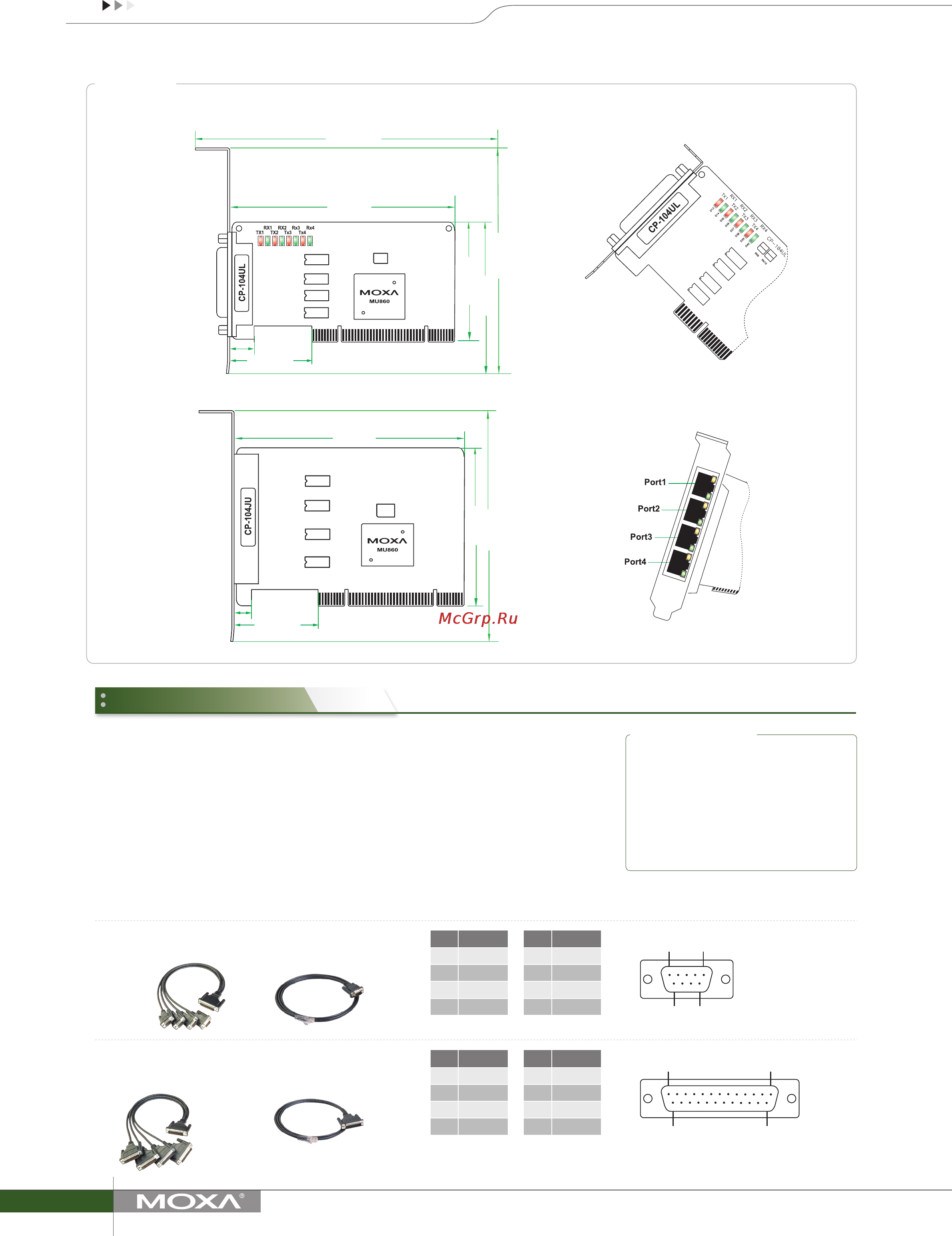

Dimensions
Unit: mm (inch)
1
13
14 25
1
5
6 9
133.25 (5.25)
120 (4.72)
16 (0.63)
41.7 (1.64)
64.4 (2.53)
80 (3.15)
121 (4.76)
120 (4.72)
10 (0.39)
41.7 (1.64)
83 (3.27)
121 (4.76)
Ordering Information
