Multiport Serial Boards
1
www.moxa.com

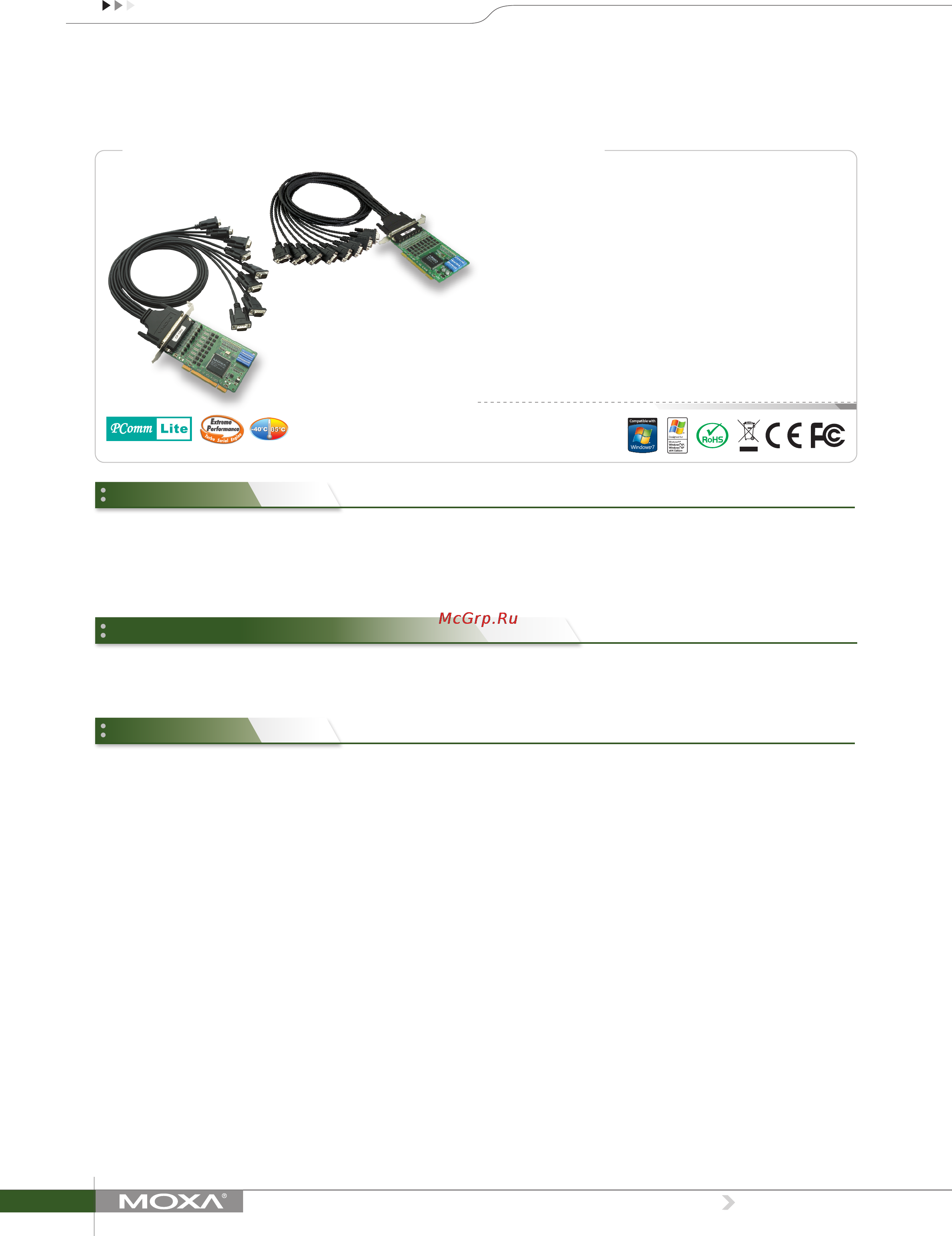

CP-118U/138U
8-port RS-232/422/485 Universal PCI serial boards
CP-118U
CP-138U
The CP-118U and CP-138U are smart, 8-port Universal PCI serial
boards designed for POS and ATM applications and for use by
industrial automation system manufacturers and system integrators.
Both boards are compatible with all major operating systems. In
addition, the CP-118U’s 8 RS-232/422/485 ports and the CP-138U’s
One of Moxa’s highest priorities is to provide drivers for all mainstream
operating systems. Reliable, well-tested Windows and Linux/Unix
drivers are available for use with the CP-118U and CP-138U serial
8 RS-422/485 ports support data rates up to 921.6 kbps and provide
full modem control signals to ensure compatibility with a wide range
of serial peripherals. The CP-118U and CP-138U support both 3.3 V
and 5 V PCI buses, making them suitable for installation in most PC
servers.
boards. Other operating systems, such as Windows XP embedded and
WEPOS, are also supported to accommodate embedded integration
applications.
› Over 700 kbps data throughput for top performance
› 921.6 kbps maximum baudrate for super fast data transmission
› 128-byte FIFO and on-chip H/W, S/W flow control
› Compatible with 3.3/5 V PCI and PCI-X
› Drivers provided for a broad selection of operating systems,
including the latest Windows and Linux
› Easy maintenance with on-board LED display, and management
software
› Wide temperature model available for -40 to 85°C environments
Hardware
Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connector: DB62 female
Serial Interface
Number of Ports: 8
Serial Standards:
CP-118U: RS-232/422/485
CP-138U: RS-422/485
Max. No. of Boards per PC: 4
Performance
Baudrate: 50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND
Physical Characteristics
Dimensions: 82 x 135 mm (3.22 x 5.31 in)
Driver Support
Windows: Windows 95/98/ME/NT/2000, Windows XP/2003/
Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2
(x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux: Linux 2.4.x, 2.6.x, 3.x
Unix-like Systems: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10,
FreeBSD
Note: Please refer to Moxa’s website for the latest driver support information.
Environmental Limits
Operating Temperature:
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
MTBF (mean time between failures)
Time:
CP-118U: 1,073,385 hrs
CP-138U: 1,147,210 hrs
Standard: Telcordia (Bellcore) SR-332
Specifications
Overview
Drivers Provided for Windows and Linux
