Multiport Serial Boards
2
© Moxa Inc. All rights reserved. Updated Jul. 18, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
CP-118U CP-138U
13
1
25 14
1
13
14 25
1
5
6 9
PIN RS-232
1 DCD
2 RxD
3 TxD
4 DTR
PIN RS-232
2 TxD
3 RxD
4 RTS
5 CTS
PIN RS-232
5 GND
6 DSR
7 RTS
8 CTS
PIN RS-232
6 DSR
7 GND
8 DCD
20 DTR
OPT8-M9
DB9 male x 8 (150 cm cable)
OPT8B
DB25 male x 8 (150 cm cable)
CBL-M62M9x8-100 (OPT8D)
DB9 male x 8 (100 cm cable)
CBL-M62M25x8-100 (OPT8C)
DB25 male x 8 (100 cm cable)
PIN RS-232
2 RxD
3 TxD
4 CTS
5 RTS
PIN RS-232
1 DSR
2 RTS
3 GND
4 TxD
PIN RS-232
6 DTR
7 GND
8 DCD
20 DSR
PIN RS-232
5 RxD
6 DCD
7 CTS
8 DTR
OPT8A
DB25 female x 8 (150 cm cable)
OPT8S
DB25 female x 8 (150 cm cable)
OPT8-RJ45
8-pin RJ45 x 8 (30 cm cable)
DB9 male
DB25 male
DB25 female
8-pin RJ45
Available Models
CP-118U: 8-port RS-232/422/485 Universal PCI serial board, 0 to 55°C operating temperature
CP-138U: 8-port RS-422/485 Universal PCI serial board, 0 to 55°C operating temperature
CP-118U-T: 8-port RS-232/422/485 Universal PCI serial board, -40 to 85°C operating temperature
CP-138U-T: 8-port RS-422/485 Universal PCI serial board, -40 to 85°C operating temperature
Connection Options (can be purchased separately)
CBL-M62M9x8-100: M62 to 8 x DB9-M cable, 100 cm
CBL-M62M25x8-100: M62 to 8 x DB25-M cable, 100 cm
Optional Connectors (choose one per board)
OPT8A: M62 to 8 x DB25-F connection box with 150 cm DB62-M to DB62-F cable
OPT8B: M62 to 8 x DB25-M connection box with 150 cm DB62-M to DB62-F cable
OPT8S: M62 to 8 x DB25-F connection box w/ surge protection, with 150 cm DB62-M to DB62-F cable
OPT8-M9: M62 to 8 x DB9-M connection box with 150 cm DB62-M to DB62-F cable
OPT8-RJ45: M62 to 8 x RJ45 (8-pin) connection box with 30 cm cable
Package Checklist
• 1 CP-118U or CP-138U board
• Documentation and software CD
• Quick installation guide (printed)
• Warranty card

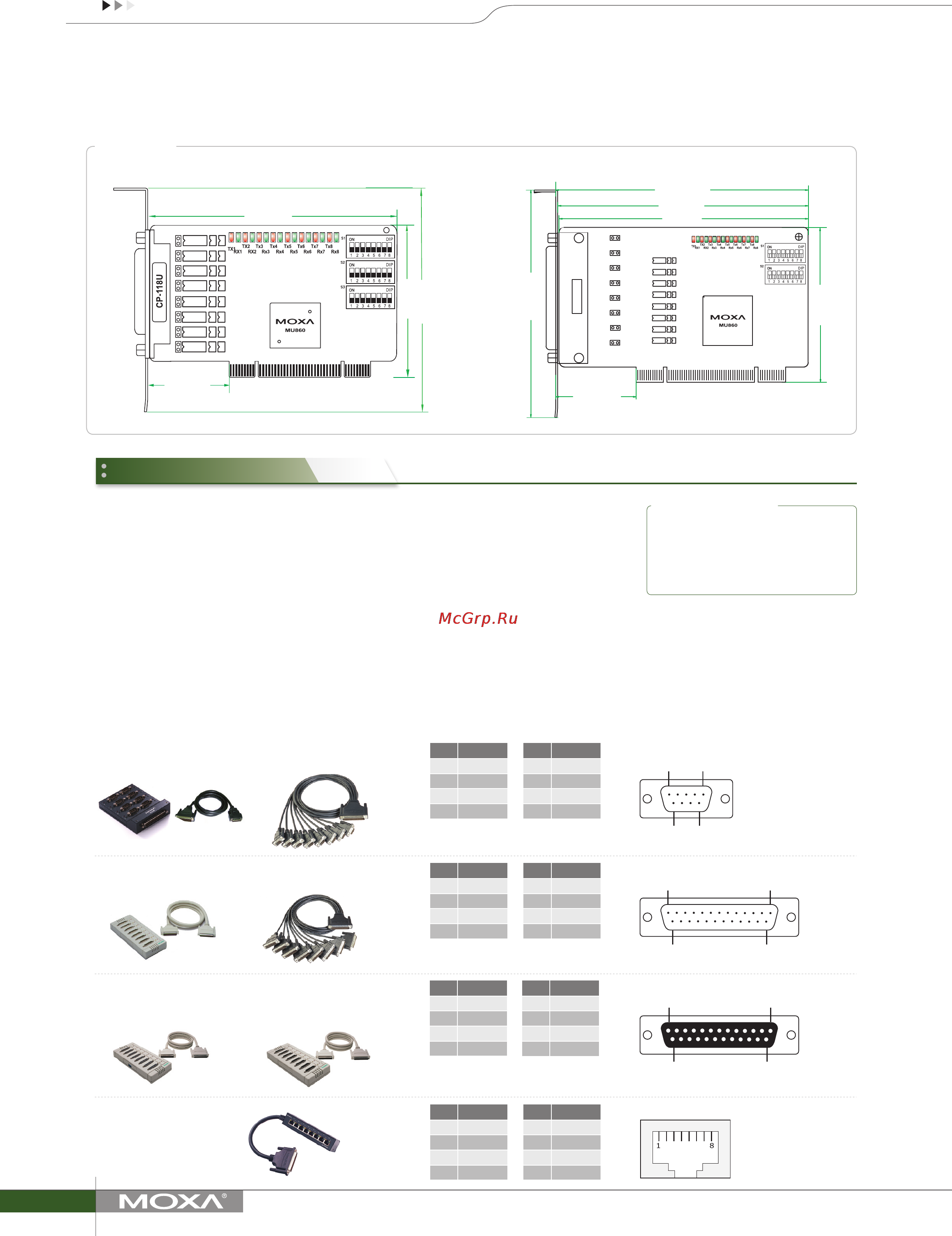

Dimensions
Unit: mm (inch)
Power Requirements
Input Current:
CP-118U: 240 mA @ 5 VDC (RS-232); 300 mA @ 5 VDC (RS-422)
CP-138U: 135 mA @ 5 VDC (RS-422)
135 (5.31)
41.7 (1.64)
82 (3.22)
121 (4.76)
41.7 (1.64)
82 (3.22)
121 (4.76)
132 (5.2)
135 (5.31)
145.25 (5.72)
U831-PC
JP1
JP2
JP3
JP4
JP5
JP6
JP7
JP8
Ordering Information
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
