www.moxa.com
info@moxa.com
Multiport Serial Boards

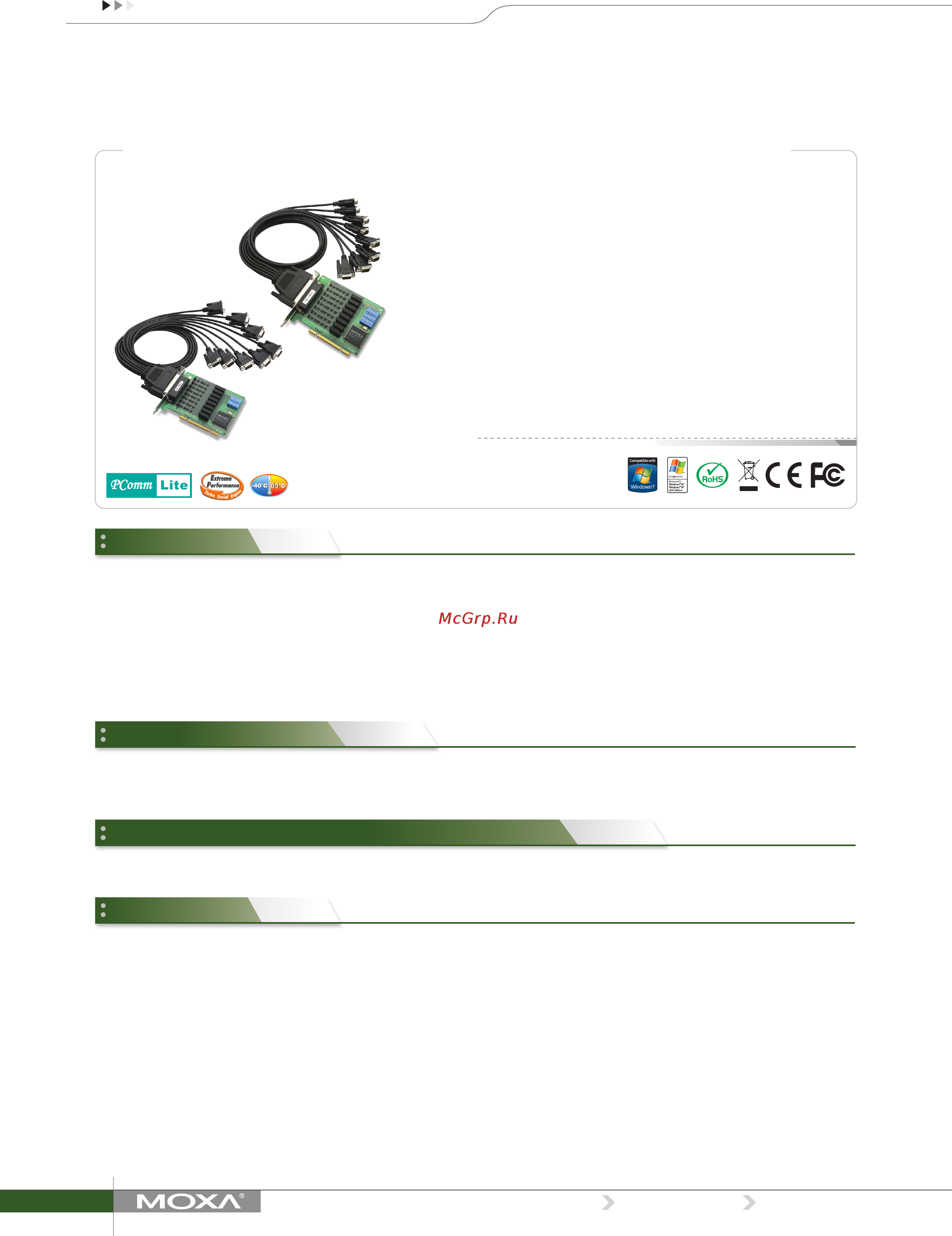

8-port RS-232/422/485 Universal PCI serial boards with 2 kV isolation
CP-118U-I
CP-118U-I/138U-I
The CP-118U-I and CP-138U-I are 8-port serial boards designed for
long distance, multi-point, PC-based data acquisition applications.
Industrial automation system integrators will be eager to use these
boards for many of their industrial automation projects.
On-chip ADDC® for precise RS-485 communication
RS-485 communication requires precise timing control to enable
and disable the line driver, and the Moxa Turbo Serial Engine™ chip
that powers the CP-118U-I and CP-138U-I boards come with on-chip
With 20-plus years of experience in serial board design, Moxa is now
concentrating on a new high performance serial data transmission
chip. The Turbo Serial Engine™ chip provides serial boards with a 128-
Moxa continues to support a wide variety of operating systems, and
the CP-118U-I and CP-138U-I boards are no exception. Reliable
byte FIFO, on-chip hardware and software flow control, and burst data
mode. Thanks to the Turbo Serial Engine™, Moxa is able to offer the
world’s best performing smart serial boards.
Windows COM and Linux/Unix TTY drivers are provided for most
Moxa boards, and other operating systems, such as WEPOS, are also
supported for embedded integration.
ADDC® (automatic data direction control) to make RS-485 as easy to
use as RS-232.
RS-485 multidrop for up to 31 devices within 1.2 km
The CP-118U-I’s 8 RS-232/422/485 ports and the CP-138U-I’s 8
RS-422/485 ports can achieve data rates up to 921.6 kbps, and in
RS-485 mode, one serial port can connect up to 31 daisy-chained RS-
485 devices within a range of 1.2 km. In addition, the 2 kV electrical
isolation protection on the CP-118U-I and CP-138U-I boards helps
prevent equipment damage for long distance RS-485 communication.
› Over 700 kbps data throughput for top performance
› 921.6 kbps maximum baudrate for super fast data transmission
› 128-byte FIFO and on-chip H/W, S/W flow control
› Compatible with 3.3/5V PCI and PCI-X
› Drivers provided for a broad selection of operating systems,
including the latest Windows and Linux
› Easy maintenance with on-board LED display, and management
software
› 15 kV ESD protection and 2 kV electrical isolation on the board
› Wide temperature model available for -40 to 85°C environments
Hardware
Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connector: DB78 female
Serial Interface
Number of Ports: 8
Serial Standards:
CP-118U-I: RS-232/422/485
CP-138U-I: RS-422/485
Max. No. of Boards per PC: 4
Serial Line Protection
ESD Protection: 15 kV on the board
Electrical Isolation: 2 kV
Performance
Baudrate: 50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
I/O Address: Assigned by BIOS
IRQ: Assigned by BIOS
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND
CP-138U-I
Specifications
Overview
Top Serial Performance
Drivers Provided for Windows, Linux, and Unix
