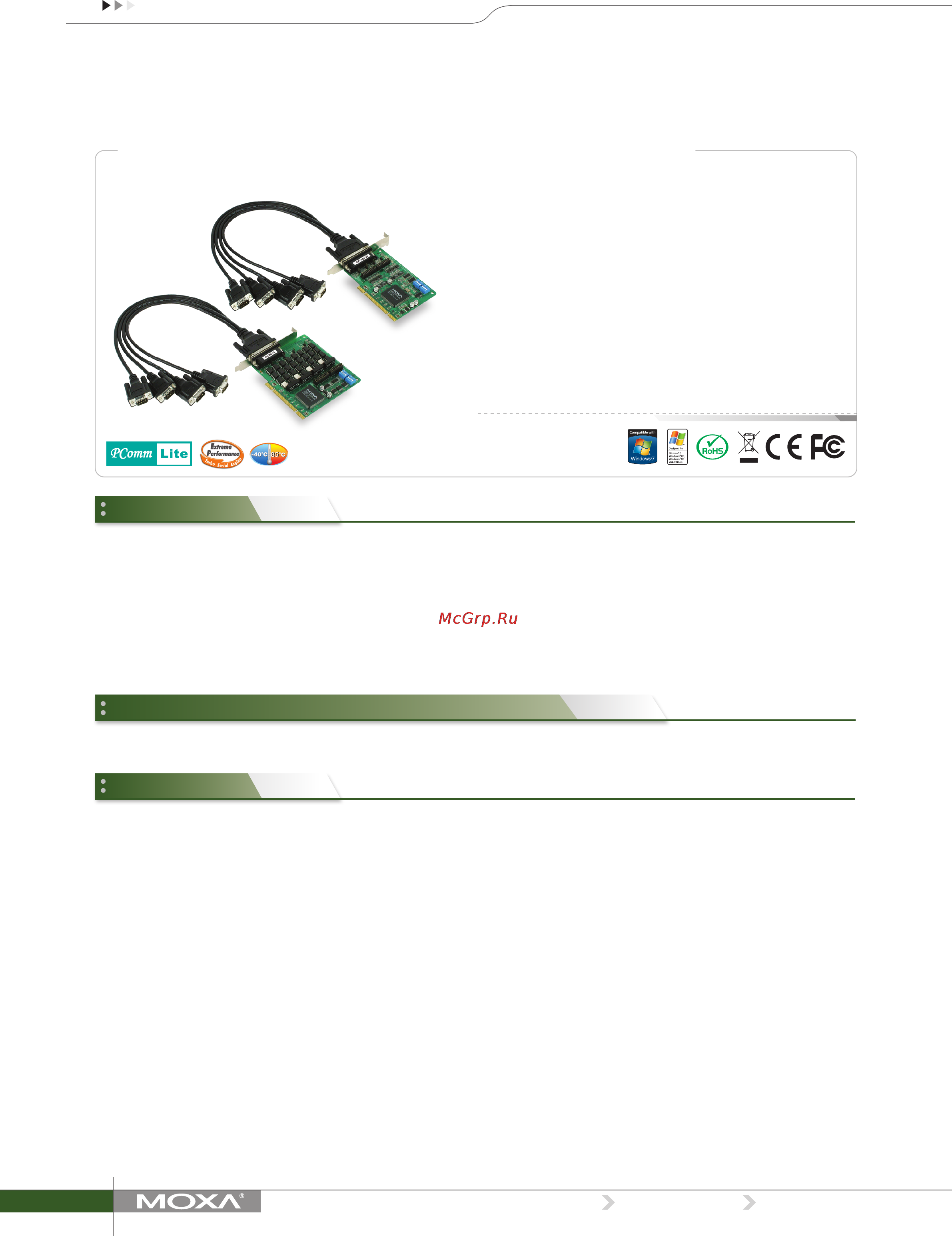

Multiport Serial Boards

CP-134U/U-I

4-port RS-422/485 Universal PCI serial boards with optional

2 kV isolation

The CP-134U and CP-134U-I 4-port universal PCI boards are designed

for industrial automation applications that require a long distance,

multi-point, PC-based data acquisition solution.

On-chip Automatic Data Direction Control for precise

RS-485 communication

RS-485 communication requires precise timing control to enable

and disable the line driver. The Moxa Turbo Serial Engine™ chip that

powers the CP-134U board comes with on-chip ADDC®, which makes

RS-485 as easy to use as RS-232.

Moxa continues to support a wide variety of operating systems,

and the CP-134U and CP-134U-I boards are no exception. Reliable

RS-485 multidrop for up to 31 devices within 1.2 km

The CP-134U universal PCI board has 4 RS-422/485 serial ports, each

of which can achieve data rates up to 921.6 kbps. In RS-485 mode,

the board can connect up to 31 daisy-chained RS-485 devices within

a range of 1.2 km. For long distance RS-485 communication, choose

the CP-134U-I, which comes with 2 kV electrical isolation protection to

prevent equipment damage.

Windows COM and Linux/Unix TTY drivers are provided for all Moxa

boards, and other operating systems, such as WEPOS, are also

supported for embedded integration.

CP-134U

CP-134U-I

› Over 700 kbps data throughput for top performance

› 921.6 kbps maximum baudrate for super fast data transmission

› ADDC® provides automatic data direction control for RS-485

signals

› 128-byte FIFO and on-chip H/W, S/W ﬂow control

› Compatible with 3.3/5V PCI and PCI-X

› Drivers provided for a broad selection of operating systems,

including the latest Windows and Linux

› 15 kV ESD protection on the board

› Added bonus! Ports 1 and 2 support RS-232 and RS-422/485

› Wide temperature model available for -40 to 85°C environments

Hardware

Comm. Controller: MU860 (16C550C compatible)

Bus: 32-bit Universal PCI

Connector: DB44 female

Serial Interface

Number of Ports: 4

Serial Standards: 2 x RS-232/422/485, 2 x RS-422/485

Max. No. of Boards per PC: 4

Serial Line Protection

ESD Protection: 15 kV on the board

Electrical isolation: 2 kV (CP-134U-I conﬁgured for RS-422/485 only)

Performance

Baudrate: 50 bps to 921.6 kbps

Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS, XON/XOFF

I/O Address: Assigned by BIOS

IRQ: Assigned by BIOS

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B), RTS-(A),

CTS+(B), CTS-(A), GND

RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

RS-485-2w: Data+(B), Data-(A), GND

Operating Systems

Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows

XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012

R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP

Embedded

Fixed TTY Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10,

FreeBSD

Linux Real TTY Drivers: Linux 2.4.x, 2.6.x

Note: Please refer to Moxa’s website for the latest driver support information.

Physical Characteristics

Dimensions:

CP-134U: 82.5 x 120 mm (3.24 x 4.72 in)

CP-134U-I: 115 x 120 mm (4.52 x 4.72 in)

Environmental Limits

Operating Temperature:

Standard Models: 0 to 55°C (32 to 131°F)

Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Speciﬁcations

Overview

Drivers Provided for Windows, Linux, and Unix
