Moxa CP-134U-T [2/2] Warranty period 5 years details see www moxa com warranty

2

Multiport Serial Boards

© Moxa Inc. All Rights Reserved. Updated Nov. 25, 2014. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.

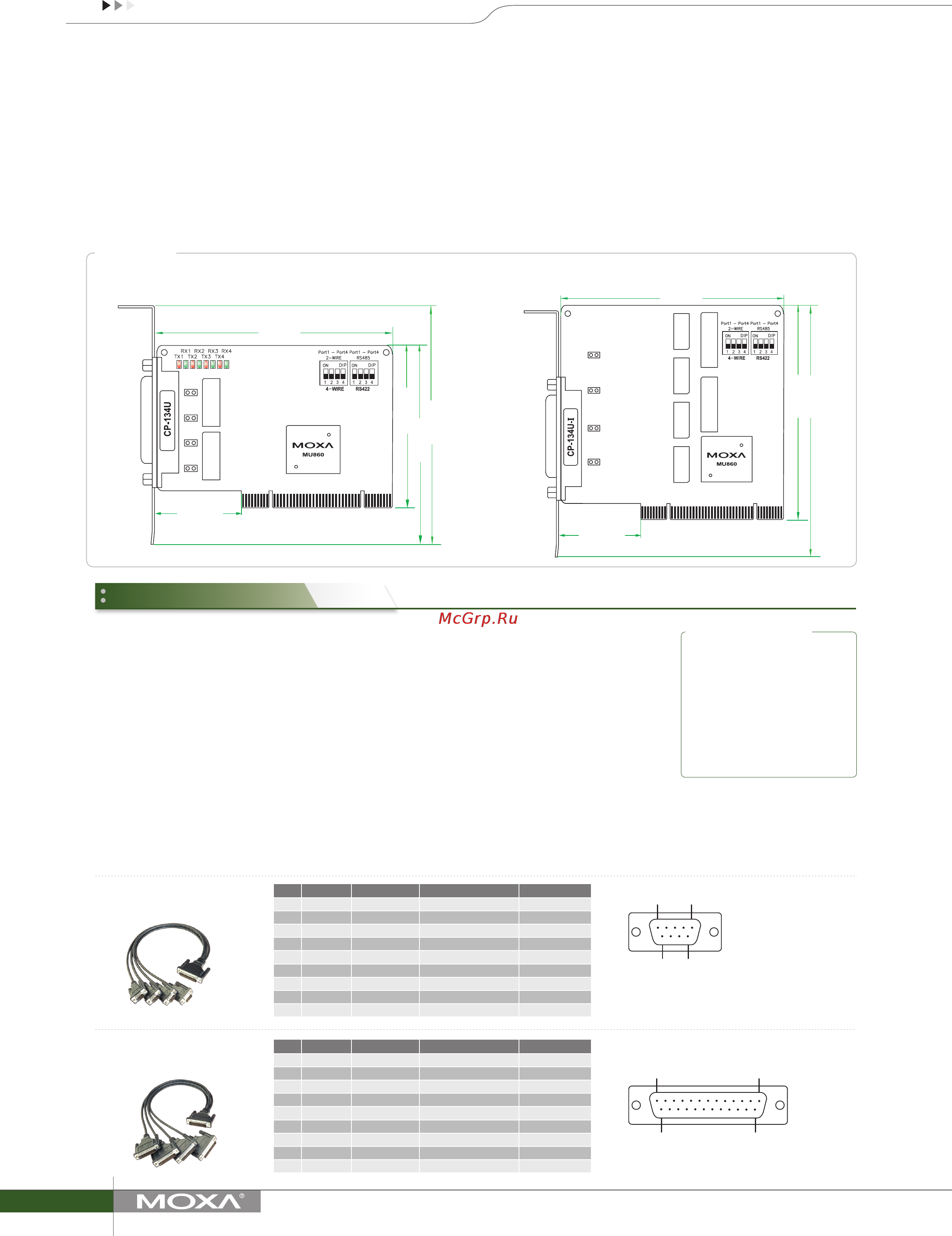

CP-134U-ICP-134U

CBL-M44M9x4-50

DB44 male to DB9 male x 4

(50 cm cable)

DB9 male

DB25 male

CBL-M44M25x4-50

4 DTR RxD-(A) RxD-(A) Data-(A)

5 GND GND GND GND

6 DSR RTS-(A) – –

7 RTS RTS+(B) – –

8 CTS CTS+(B) – –

9 – CTS-(A) – –

PIN RS-232 RS-422 RS-485-4w RS-485-2w

2 TxD RxD+(B) RxD+(B) Data+(B)

3 RxD TxD+(B) TxD+(B) –

4 RTS RTS+(B) – –

Available Models

CP-134U: 4-port RS-422/485 Universal PCI serial board, 0 to 55°C operating temperature

CP-134U-DB9M: 4-port RS-422/485 Universal PCI serial board, 0 to 55°C operating temperature (includes DB9

male cable)

CP-134U-DB25M: 4-port RS-422/485 Universal PCI serial board, 0 to 55°C operating temperature (includes DB25

male cable)

CP-134U-I: 4-port RS-422/485 Universal PCI serial board with electrical isolation, 0 to 55°C operating temperature

CP-134U-I-DB9M: 4-port RS-422/485 Universal PCI serial board with electrical isolation, 0 to 55°C operating

temperature (includes DB9 male cable)

CP-134U-I-DB25M: 4-port RS-422/485 Universal PCI serial board with electrical isolation, 0 to 55°C operating

Ambient Relative Humidity: 5 to 95% (non-condensing)

Altitude: Up to 2000 m

Note: Please contact Moxa if you require products guaranteed to function
