CA Series PC/104 Software Installation

3-20

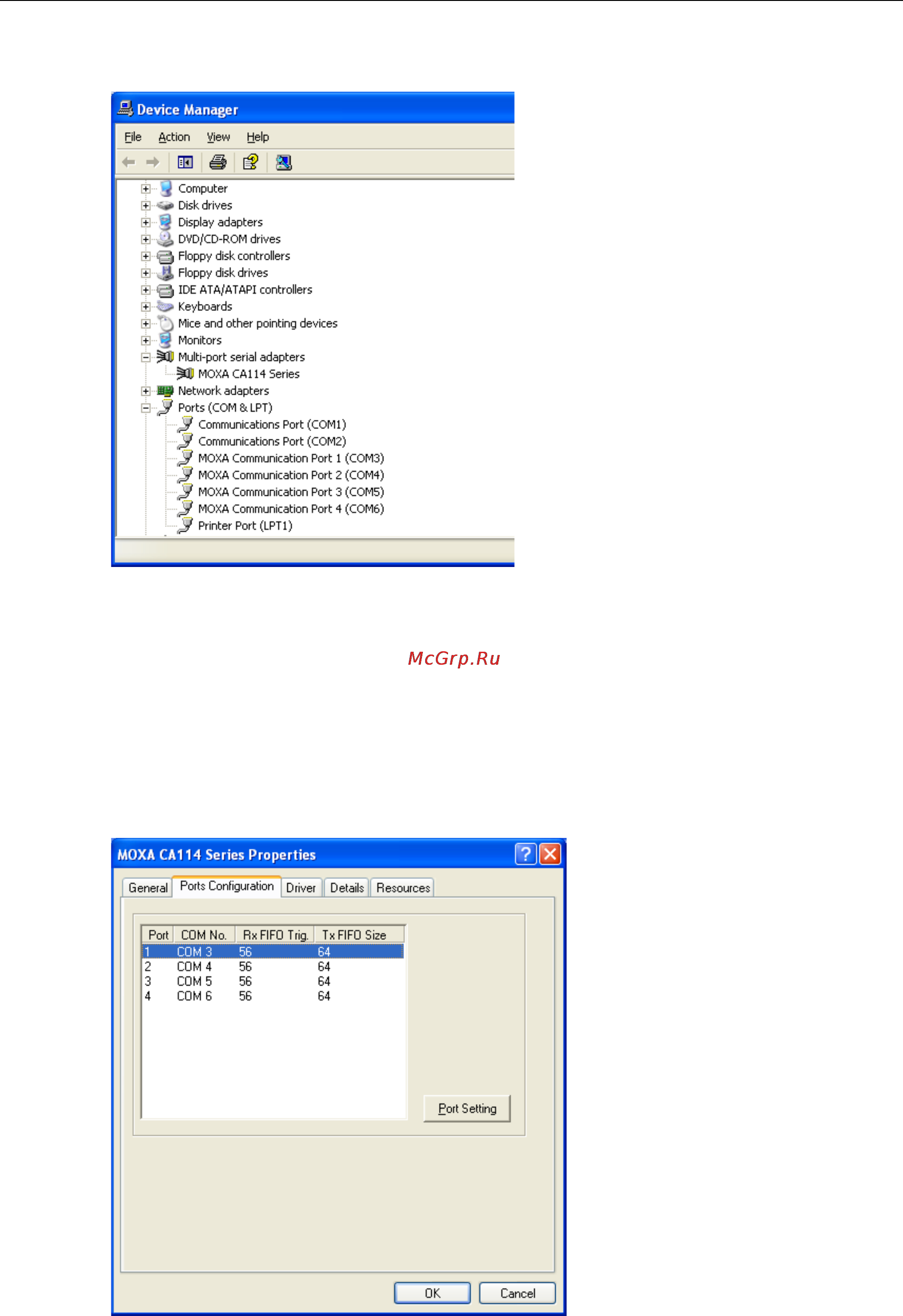

3. In the Device Manager window, you should see your CA Series module under Multi-port serial adapters.

You should also see MOXA communication ports under Ports (COM & LPT).

4. If you see any special marks, such as a question mark or an exclamation mark, next to the MOXA items, the

installation of your module or serial ports was not successful. Examine the Windows event log for details.

Port Configuration

After the driver is installed, a CA Series Properties window will appear. The system will map the serial ports

automatically. It will prompt you to take care of port configuration if another CA Series module has been

installed on the PC.

1. Select a specific port under the Port Configuration tab and click Port Setting.
