4. Hardware Installation
Do not install the drivers until the module has been installed in the
embedded computer. Install the module in the embedded
computer as follows:
STEP 1:
Turn the embedded computer off.
STEP 2:
On the module, set the I/O base address, interrupt
vector, IRQ, and serial interface (if applicable).
STEP 3:
Insert the module into an available PC/104 slot.
STEP 4:
Screw the control board in place.
STEP 5:
Connect the cables.
STEP 6:
Turn the embedded computer on.
5. Software Installation
For detailed software installation instructions, please refer to the
CA Series User’s Manual.
Windows Vista (32-bit)
1. After turning the embedded computer on, log into Windows as
Administrator.
2. Insert the Document and Software CD in the CD-ROM drive.
3. Select Add Hardware from the Control Panel.
4. A window will appear stating that “Windows needs your
permission to continue”. Click Continue.
5. The “Add Hardware Wizard” will open. Click Next to continue.
6. Select Install the hardware that I manually select from a
list (Advanced) and click Next to continue.
7. Select Multi-port serial adapters and click Next to continue.
8. Click Have Disk. For 32-bit (x86) platforms, select the \CA
Series\Software\Windows Vista\x86 folder on the CD
and click OK to continue.
9. Select your CA Series model and click Next to continue.
10. If you see a warning that the software has not passed Windows
Logo testing, click Install this driver software anyway.
11. The installation wizard will guide you through the port
installation procedure, starting with port 0.
12. If the default configuration is not used, you will need to change
the driver settings to match the hardware configuration. Use
Windows Device Manager to check and set the correct
resource.
Windows 2003 and XP (32-bit)
1. After turning the embedded computer on, log into Windows as
Administrator.
2. Insert the Document and Software CD in the CD-ROM drive.
3. Select Add/Remove Hardware from Control Panel.
4. Select Yes, I have already connected the hardware.
5. Select Add new hardware device.
6. Select Install the hardware that I manually select from a
list (Advanced).
7. Select Multi-port serial adapters.
8. Select Have Disk. Select the \CA Series\Software\
Windows XP_2003\x86 folder on the CD.
9. If you see a warning that the software has not passed Windows
Logo testing, click Continue Anyway.
10. Click Finish to complete the driver installation.
11. If the default configuration is not used, you will need to change
the driver settings to match the hardware configuration. Use
Windows Device Manager to check and set the correct
resource.
Windows 2000
1. After powering on your PC, log into Windows 2000 as
Administrator.
2. Insert the Document and Software CD in the CD-ROM drive.
3. Select Add/Remove Hardware from Control Panel.
4. Select Add/Troubleshoot a device.
5. Select Add new device.
6. Select No, I want to select the hardware from a list.
7. Select Multi-port serial adapters.
8. Select Have Disk. Select the \CA
Series\Software\Windows 2K folder on the CD and click
Next to continue.
9. If you see a warning that the software has not passed Windows
Logo testing, click Yes to proceed with the installation.
10. Click Finish to complete the driver installation.
11. If the default configuration is not used, you will need to change
the driver settings to match the hardware configuration. Use
Windows Device Manager to check and set the correct
resource.
Linux
Please refer to the user’s manual for instructions on installing the
Linux drivers.
6. Pin Assignments and Cable Wiring
The box header connector on the module can be used with optional
serial cables to connect to your serial devices. The pin assignments
are as follows:
RS-232 (CA-108*, CA-114, CA-104 V2)
Pin
Signal
Signal
Pin
Signal
Pin
Signal
1
DCD0
DCD1
21
DCD2
31
DCD3
2
DSR0
DSR1
22
DSR2
32
DSR3
3
RxD0
RxD1
23
RxD2
33
RxD3
4
RTS0
RTS1
24
RTS2
34
RTS3
5
TxD0
TxD1
25
TxD2
35
TxD3
6
CTS0
CTS1
26
CTS2
36
CTS3
7
DTR0
DTR1
27
DTR2
37
DTR3
9
GND0
GND1
29
GND2
39
GND3
*There are two 40-pin box header connectors on the CA-108, each
of which connects to 4 serial ports.
RS-422, 4-wire RS-485 (CA-132 V2, CA-132I V2, CA-114,
CA-134I)
Pin
Signal
Pin
Signal
Pin*
Signal*
Pin*
Signal*
1
TxD0-(A)
11
TxD1-(A)
21
TxD2-(A)
31
TxD3-(A)
3
TxD0+(B)
13
TxD1+(B)
23
TxD2+(B)
33
TxD3+(B)
5
RxD0+(B)
15
RxD1+(B)
25
RxD2+(B)
35
RxD3+(B)
7
RxD0-(A)
17
RxD1-(A)
27
RxD2-(A)
37
RxD3-(A)
9
GND0
19
GND1
29
GND2
39
GND3
*Pins 21 to 40 are for CA-114, CA-134I only
2- wire RS-485 (CA-132 V2, CA-132I V2, CA-114, CA-134I)
Pin
Signal
Pin
Signal
Pin*
Signal*
Pin*
Signal*
5
Data0+(B)
15
Data1+(B)
25
Data2+(B)
35
Data3+(B)
7
Data0-(A)
17
Data1-(A)
27
Data2-(A)
37
Data3-(A)
9
GND0
19
GND1
29
GND2
39
GND3
*Pins 21 to 40 are for CA-114, CA-134I only

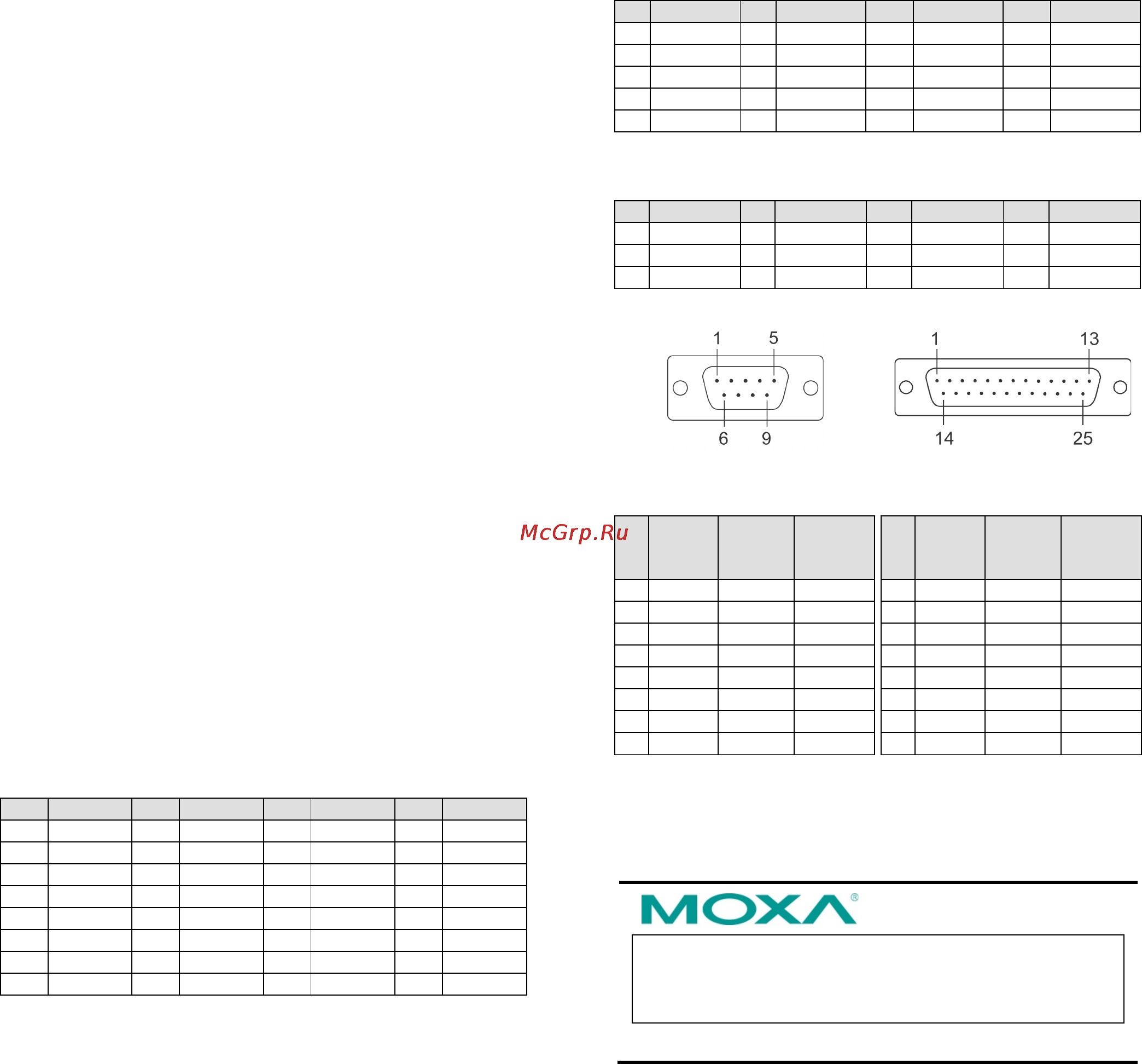

DB9 (M) connectors
(CBL-F40M9x4-50,
CBL-F20M9x4-50)
DB25 (M) connectors
(CBL-F40M25x4-50,
CBL-F20M25x4-50)
Pin
RS-232
RS-422,
4-wire
RS-485
2-wire
RS-485
Pin
RS-232
RS-422,
4-wire
RS-485
2-wire
RS-485
1
DCD
TxD-(A)
---
2
TxD
RxD+(B)
Data+(B)
2
RxD
TxD+(B)
---
3
RxD
TxD+(B)
---
3
TxD
RxD+(B)
Data+(B)
4
RTS
---
---
4
DTR
RxD-(A)
Data-(A)
5
CTS
---
---
5
GND
GND
GND
6
DSR
---
---
6
DSR
7
GND
GND
GND
7
RTS
8
DCD
TxD-(A)
---
8
CTS
20
DTR
RxD-(A)
Data-(A)
