DA-681A Series Windows Software Configuring the Serial Interface
3-2
Overview
The DA-681A supports the following serial modes: RS-232, RS-485-2-wire, and RS-422/485-4-wire.
These modes can be configured as either COM1 or COM2.
Configuring the Serial Interface Mode
Take the following steps to configure the serial interface mode:

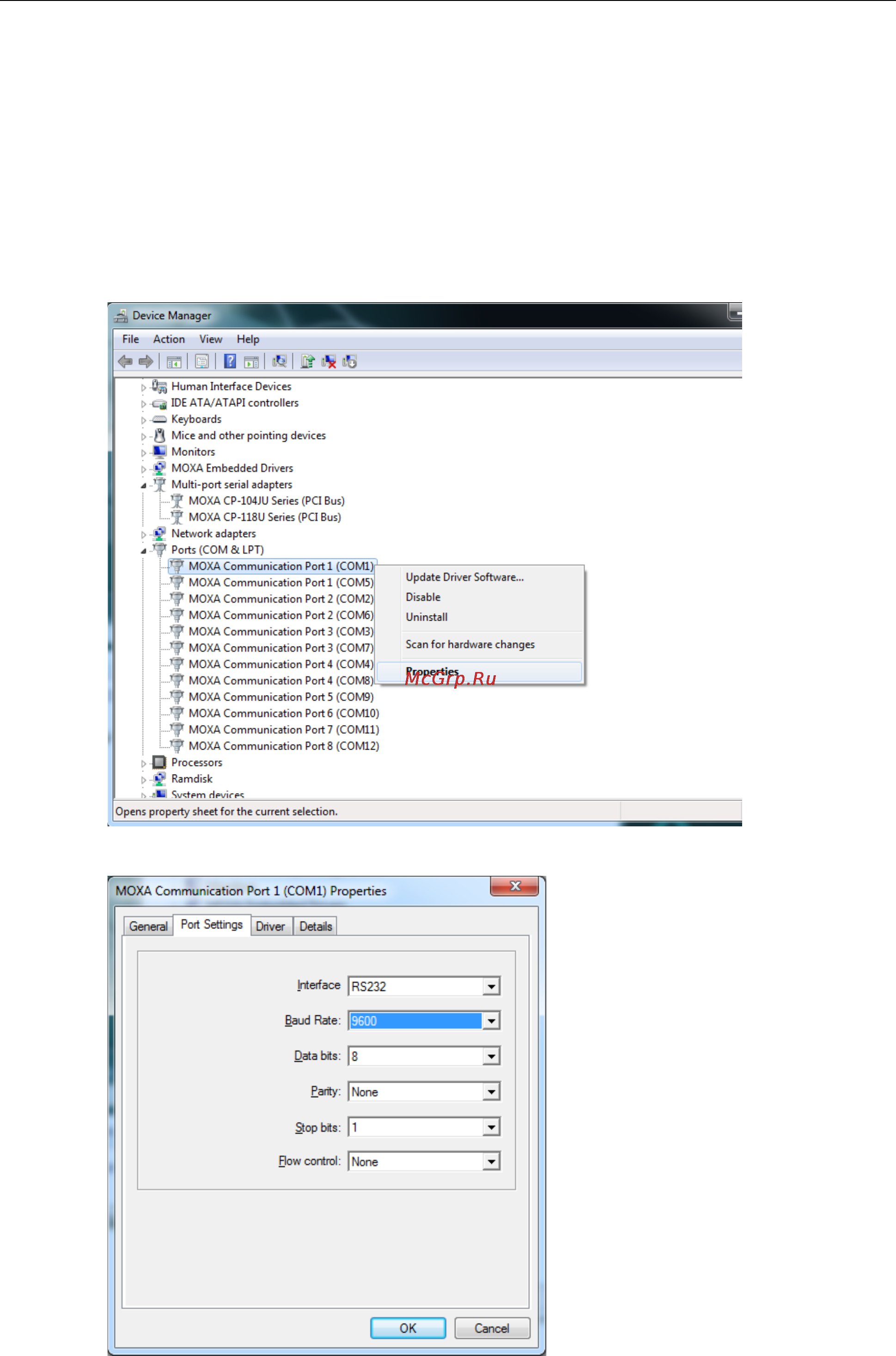

1. Right-click the port you would like to configure, and then select Properties.
2. Select the Port Settings tab.
