DA-681A Series Windows Software Enabling Embedded Filters

4-9

Excluding Files from FBWF Protection

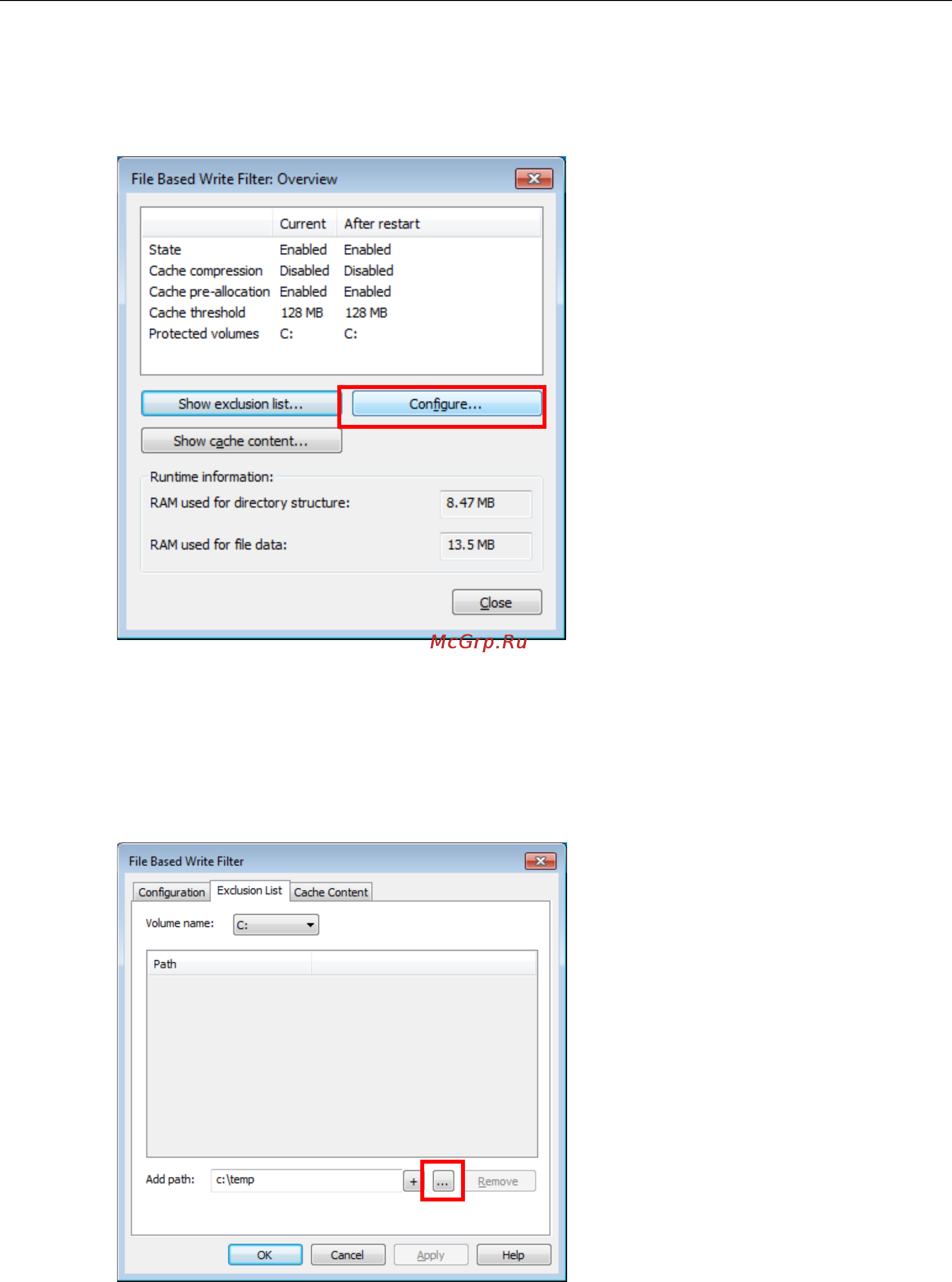

1. Click on the FBWF icon (in the desktop systray) to open the Overview dialog. Click on Configure to switch

to the configuration interface.

2. Click on the Exclusion List tab. Make sure the correct drive volume is shown in the dropdown menu labeled

Volume name; if not, select the correct volume from the dropdown menu.

Next, you must select the file path you wish to exclude from FBWF protection; doing so will allow the drive

to write to the selected files and directories, so be careful. You may indicate an entire section of the file tree

by selecting an entire file path, or you may select individual files.

To select individual files, click on the Browse button (marked with ellipses, in the lower right corner, as

shown below) to open a Windows Explorer interface.
