DA-682A-DPP Linux Software System Recovery
6-8

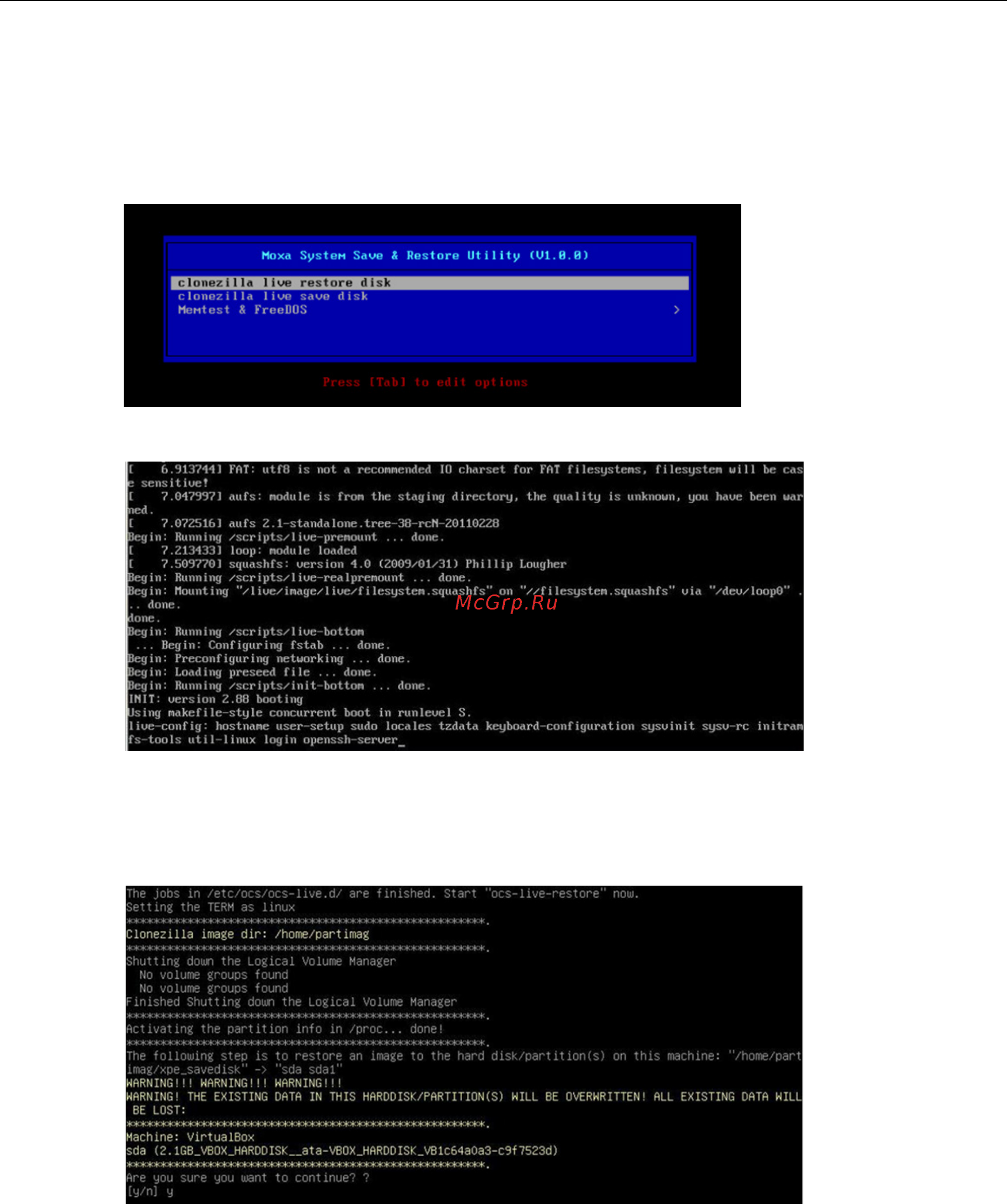

Step 5: Performing a System Recovery
Connect the USB drive to any of the DA-682A-DPP’s USB ports and then reboot the computer. The system will
boot from the USB into the Clonezilla boot loader.
1. Select Clonezilla Live Restore Disk to boot into the system restoration environment.
2. Wait for the boot process to finish.
3. At this point, the system will remind you that you are about to overwrite your entire operating system with
a new drive image, and ask you if you want to continue. When prompted, enter Y (case insensitive) from
the keyboard to start the system restoration process. Any other letter or Ctrl-C will cancel it and exit
Clonezilla.
