USB Ports
The DA-685 comes with two USB 2.0 ports on the rear panel. Use
these USB ports to connect flash drives for storing large amounts
of data.
Serial Ports
The DA-685 offers six 2-wire terminal block RS-485 ports and two
software-selectable DB9 RS-232/422/485 ports. The pin
assignments for the ports are shown in the following table:
Pin
RS-232
RS-422
RS-485
(4-wire)
RS-485
(2-wire)
1
DCD
TxDA(-)
TxDA(-)
–
2
RxD
TxDB(+)
TxDB(+)
–
3
TxD
RxDB(+)
RxDB(+)
DataB(+)
4
DTR
RxDA(-)
RxDA(-)
DataA(-)
5
GND
GND
GND
GND
6
DSR
–
–
–
7
RTS
–
–
–
8 CTS – – –
Ethernet Ports
The DA-685 provides 6 100/1000 Mbps Ethernet RJ45 ports. The
pin assignments are shown in the following table:
Pin
100 Mbps
1000 Mbps
1
ETx+
TRD(0)+
2
ETx-
TRD(0)-
3
ERx+
TRD(1)+
4
–
TRD(2)+
5
–
TRD(2)-
6
ERx-
TRD(1)-
7
–
TRD(3)+
8
–
TRD(3)-
The default IP addresses and netmasks of the Ethernet ports are as
follows. Note that the XPE and W7E models use DHCP.
Default IP Address
Netmask
LAN 1
192.168.3.127
255.255.255.0
LAN 2
192.168.4.127
255.255.255.0
LAN 3
192.168.5.127
255.255.255.0
LAN 4
192.168.6.127
255.255.255.0
LAN 5
192.168.7.127
255.255.255.0
LAN 6
192.168.8.127
255.255.255.0

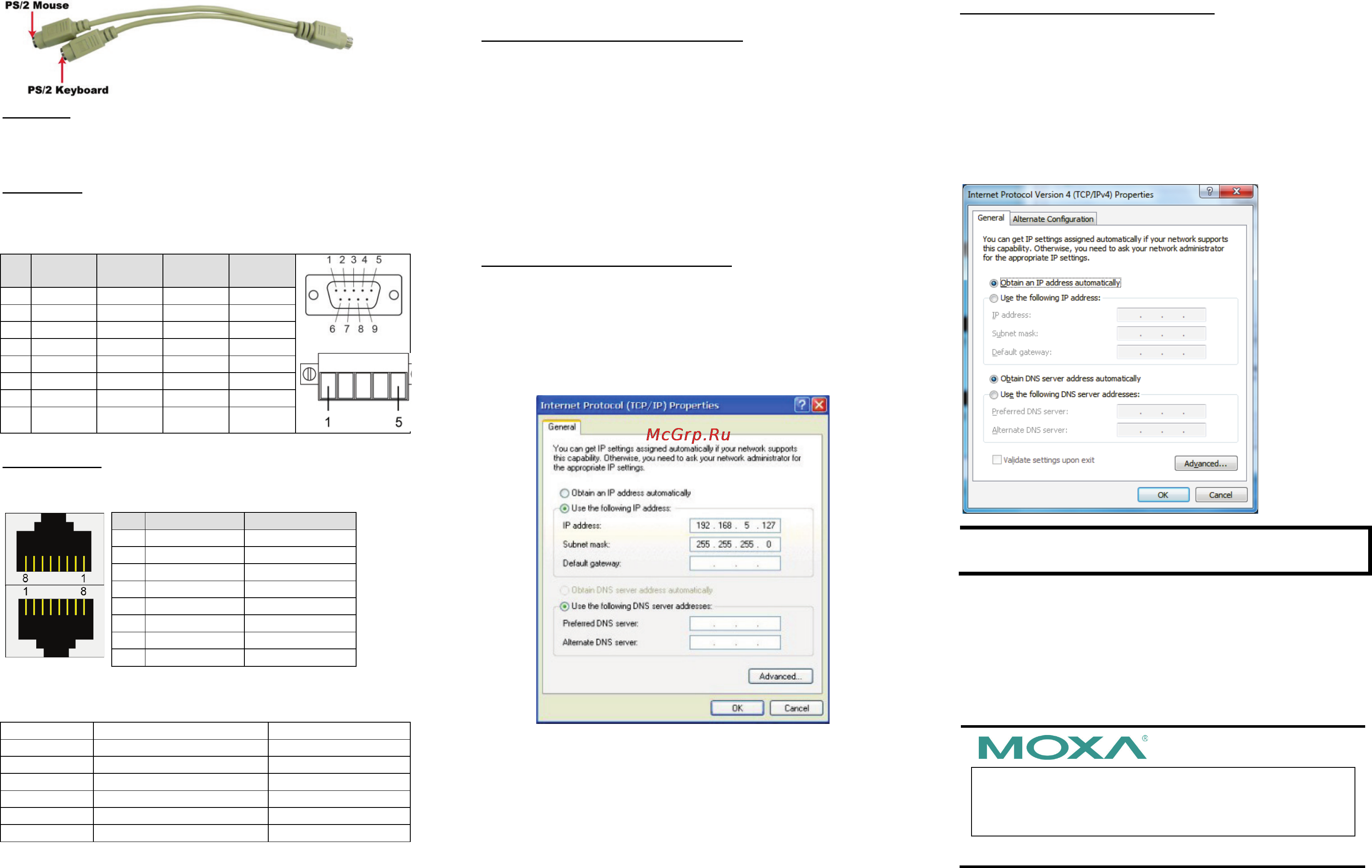

4. Configuring the Ethernet Interface
Linux users should follow these steps:
If you use the console cable to configure Network settings for the
first time, use the following commands to edit the interfaces file:
#ifdown –a
//Disable LAN1~LAN6 interface first, before you
reconfigure the LAN settings. LAN1 = eth0, LAN2 = eth1 and so
on//
#vi /etc/network/interfaces
//check the LAN interface first//
After the boot setting of the LAN interface has been modified, use
the following commands to activate the LAN settings immediately:
#sync; ifup –a
XPE users should follow these steps:
Step 1:
Go to Start Network Connections.
Step 2:
In the screen of Local Area Connection Properties
,
click
Internet Protocol (TCP/IP) and then select
Properties
.
Step 3:
Click OK after inputting the proper IP address and
netmask.
W7E users should follow these steps:
Step 1:
Go to Start Control Panel-> Network and Internet
-
> View network status and tasks -> Change
adapter setting.
Step 2:
In the screen of Local Area Connection Properties
,
click
Internet Protocol (TCP/IP) and then select
Properties
.
Select Internet Protocol Version 4, then click
Properties.
Step 3:
Click OK
after inputting the proper IP address and
netmask.
NOTE
Refer to the User’s Manual for additional configuration
information.
