DA-685 / W7E System Recovery
6-5
the first boot priority. If you have not yet reset the boot priority, first return to Step 2: Settingthe BIOS to
Boot via USB, just above, and follow the directions there.

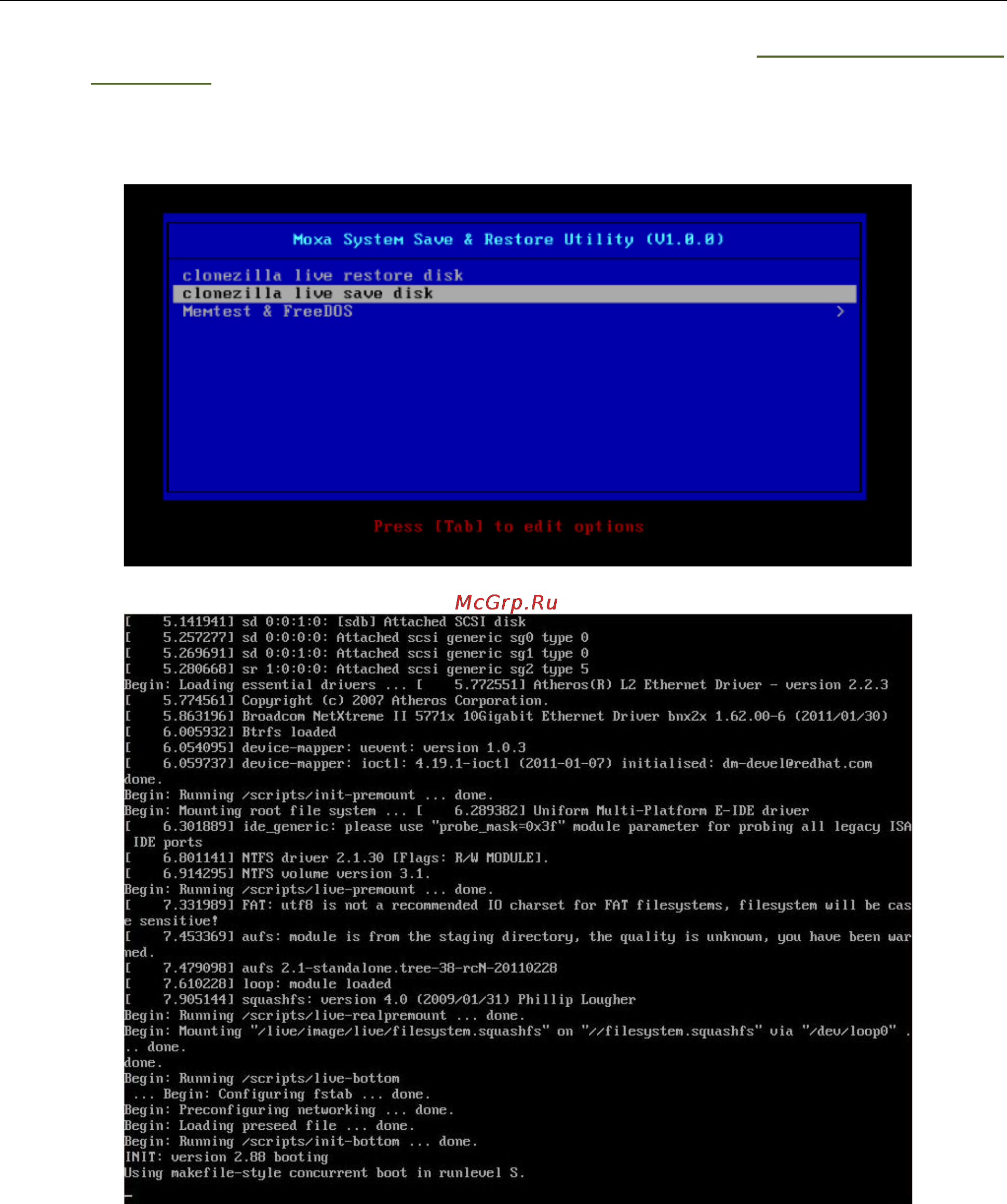

1. Once the system has launched and the DA-685 has booted the recovery environment from the USB drive,
navigate to the entry ClonezillaLive Save Disk, and select it by pressing Enter. This will take you into the
recovery image creation environment, allowing you to copy your full system setup to the USB drive.
2. The DA-685 will now boot into the image creation environment. Wait for the boot process to finish.
3. Once the image creation environment has completed booting up, you will be given a warning and asked if
you wish to continue. Please keep in mind that if you create the recovery image, then any residual files
currently copied to the
/home/partimag directory will be deleted. If there are any files remaining in
the USB partition image directory and you wish to save them, you must exit the recovery environment
and copy these files to another disk. If you wish to continue with the image creation, pressY (case
insensitive) to continue.
