V2201 Series Hardware Hardware Connection Description
3-10

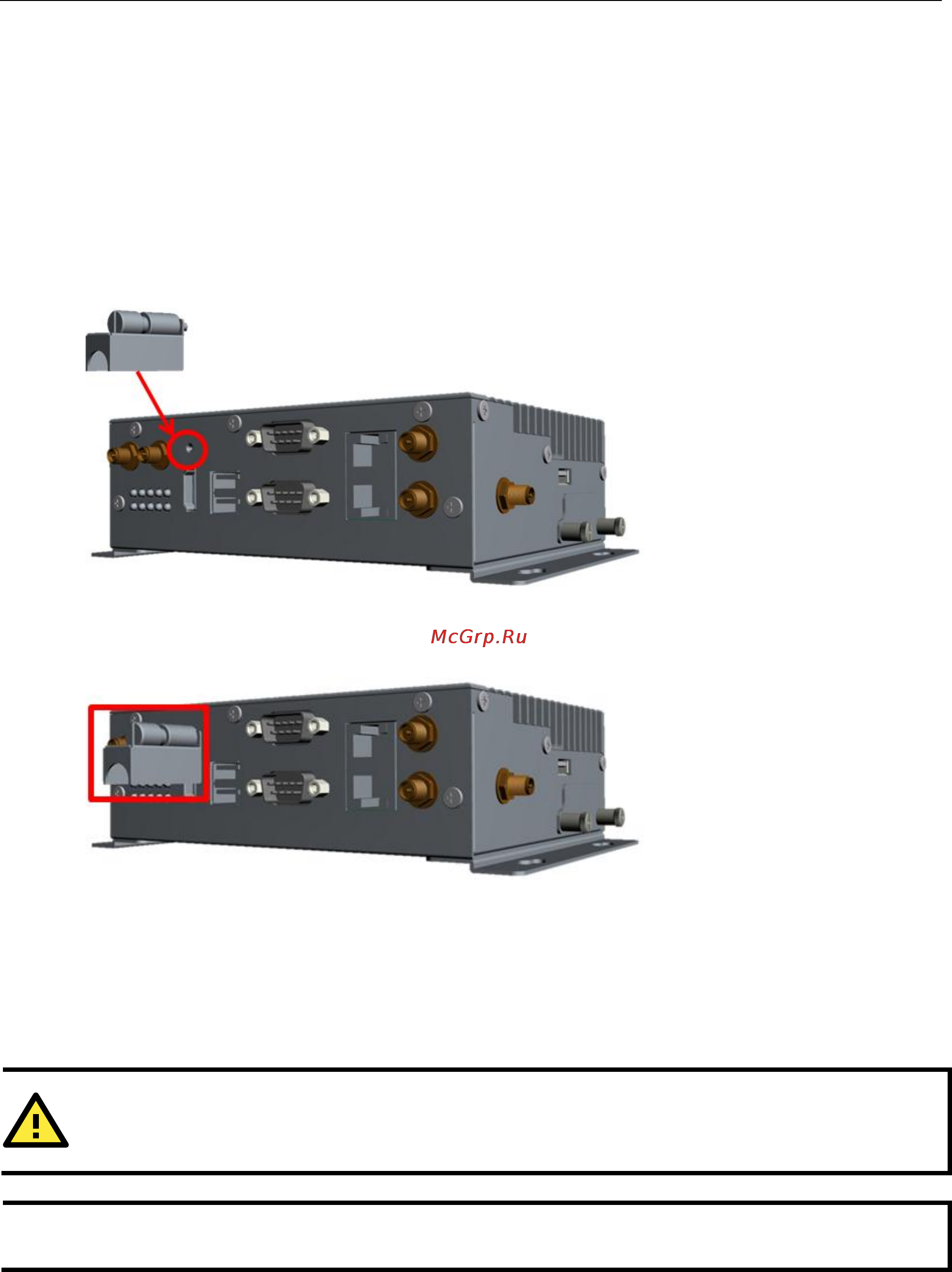

Connecting to an HDMI Monitor
The V2201 comes with a type A HDMI female connector on the front panel to connect an HDMI monitor.
The screw hole above the HDMI connector can be used to install a customized lock for the HDMI connector
(note that different HDMI connector are not all the same).
Please contact a Moxa sales representative if you would like to order a customized lock.
The lock for the screw hole
Finished look
RTC Battery Replacement
The V2201’s real-time clock is powered by a lithium battery. We strongly recommend that you do not replace
the lithium battery without help from a qualified Moxa support engineer. If you need to change the battery,
contact the Moxa RMA service team.
ATTENTION
There is a risk of explosion if the battery is replaced by an incorrect type of battery.
NOTE
The V2201 embedded computer can be customized to support an easy RTC battery replacement function.
Please contact your Moxa sales representative for details.
