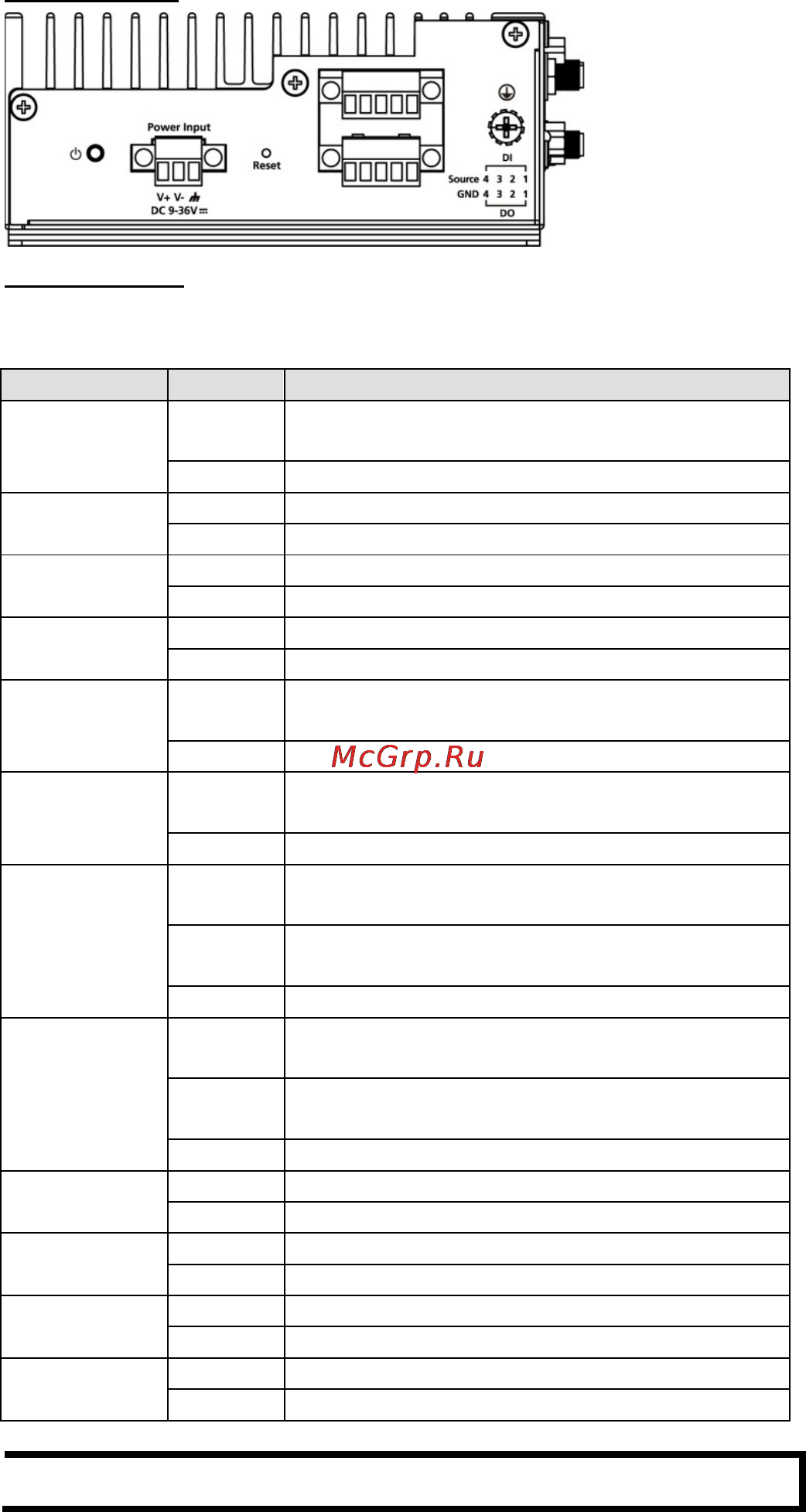

Left Side View
LED Indicators
The following table describes the LED indicators located on the front panel
of the V2201.
LED Name
Status
Function
Power
Green
Power is on and computer is functioning
normally.
Off
Power is off
User Defined
Red
Event has occurred
Off
No alert
mSATA
Yellow
Blinking: Data is being transmitted
Off
Not connected / No data transmission
SD Card
Yellow
Blinking: Data is being transmitted
Off
Not connected / No data transmission
Wireless 1
Green
Steady On: Link is On
Blinking: Data is being transmitted
Off
Not connected
Wireless 2 Green Steady On: Link is On
Blinking: Data is being transmitted
Off
Not connected
LAN 1
Yellow
Steady On: 1000 Mbps Ethernet link
Blinking: Data is being transmitted
Green
Steady On: 100 Mbps Ethernet link
Blinking: Data is being transmitted
Off
10 Mbps Ethernet link or LAN is not connected
LAN 2
Yellow
Steady On: 1000 Mbps Ethernet link
Blinking: Data is being transmitted
Green Steady On: 100 Mbps Ethernet link
Blinking: Data is being transmitted
Off
10 Mbps Ethernet link or LAN is not connected
Tx 1
Green
Blinking: Data is being transmitted
Off
Not connected
Tx 2
Green
Blinking: Data is being transmitted
Off
Not connected
Rx 1
Yellow
Blinking: Data is being transmitted
Off
Not connected
Rx 2
Yellow
Blinking: Data is being transmitted
Off
Not connected
NOTE
The mini-PCIe card’s LED behavior depends on the module
