Overview

The Moxa V2201 series ultra-compact x86 embedded computer is based

on the Intel® Atom™ E3800 series processor, features the most reliable

I/O design to maximize connectivity, and supports dual wireless modules,

making it suitable for a diverse range of communication applications. The

computer’s thermal design ensures reliable system operation in

temperatures ranging from -40 to 85°C, and wireless operation in

temperatures ranging from -40 to 70°C with a special purpose Moxa

wireless module installed. The V2201 series supports “Moxa Proactive

Monitoring” for device I/O status monitoring and alerts, system

temperature monitoring and alerts, and system power management.

Closely monitoring the system status makes it easier to recover from

errors and provides the most reliable platform for your applications.

Package Checklist

Before installing the V2201, verify that the package contains the following

items:

• V2201 embedded computer

• Terminal block to power jack converter

• Wall mounting kit

• Quick installation guide (printed)

• Documentation and software CD or DVD

• Warranty card

NOTE: Please notify your sales representative if any of the above

items are missing or damaged.

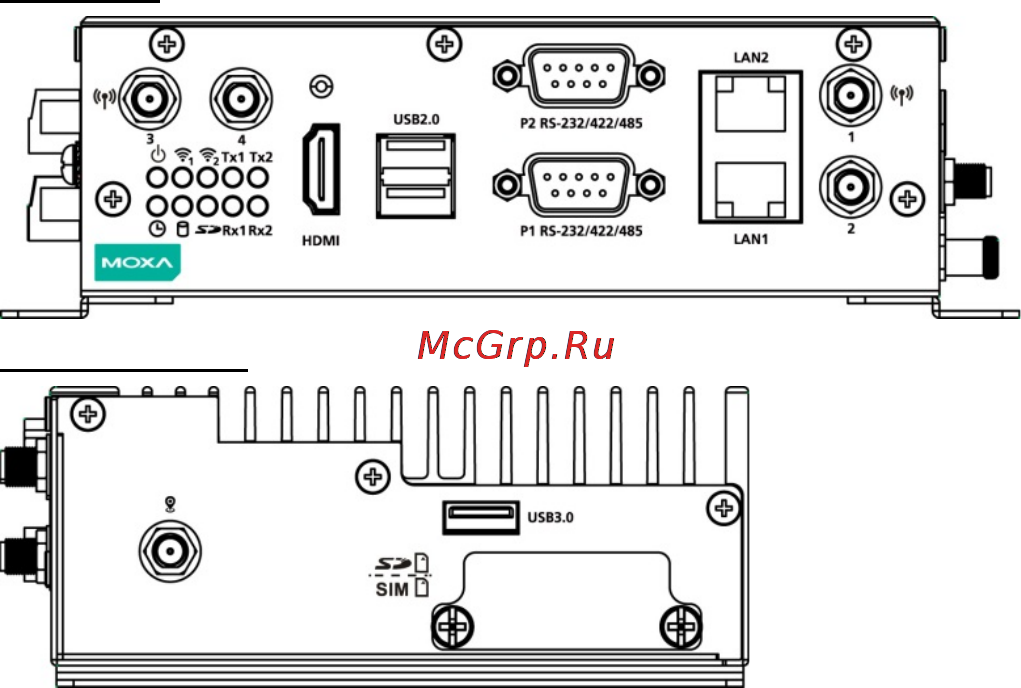

V2201 Panel Layout

The following figures show the panel layouts of the V2201-W series; for

“non-W” series, the 5 antenna connectors will not be installed during

production.

Rear View

Right Side View
