V2201 Series Hardware Hardware Connection Description

3-5

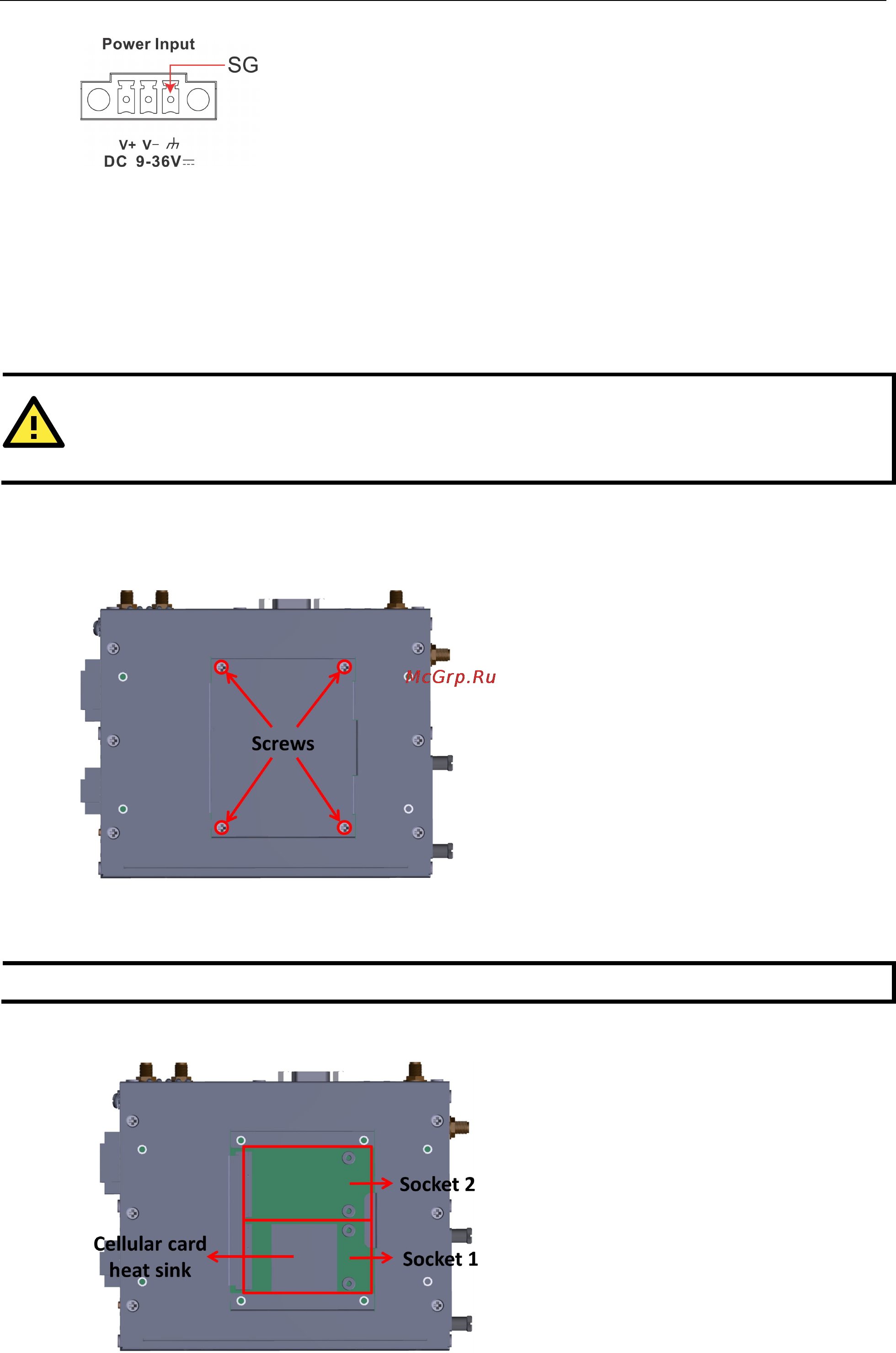

SG: The Shielded Ground (sometimes called Protected Ground) contact is the

right most of the 3

pin power terminal block connector when viewed from the

angle shown here.

Connect the SG wire to an appropriate grounded metal

surface.

Connecting Data Transmission Cables

In this section, we describe how to connect the V2201 embedded computer to a network and serial devices.

Installing the Wireless Modules

ATTENTION

V2201 series

“-W” models (e.g., V2201-E2-W-T) include a cellular card heat sink and 5 x wireless SMA

connectors

, which are installed during the production process.

The V2201 features two mini-PCIe sockets on the bottom panel. One socket supports USB signals only using

MC9090, MC7354, or MC7354 mini-PCIe cards. The other socket supports standard USB + PCIe signals.

STEP1: Loosen the four screws in the middle of the bottom panel and open the bottom cover.

There are two mini-PCIe sockets:

Socket 1: USB signal, for 3G/LTE mini-PCIe card (Sierra Wireless MC9090, MC7304, MC7354).

NOTE

Cellular card heat sink is installed in socket 1.

Socket 2: Standard USB + PCIe signal, for Wi-Fi mini-PCIe cards.
