V2201 Series Hardware Hardware Connection Description
3-6

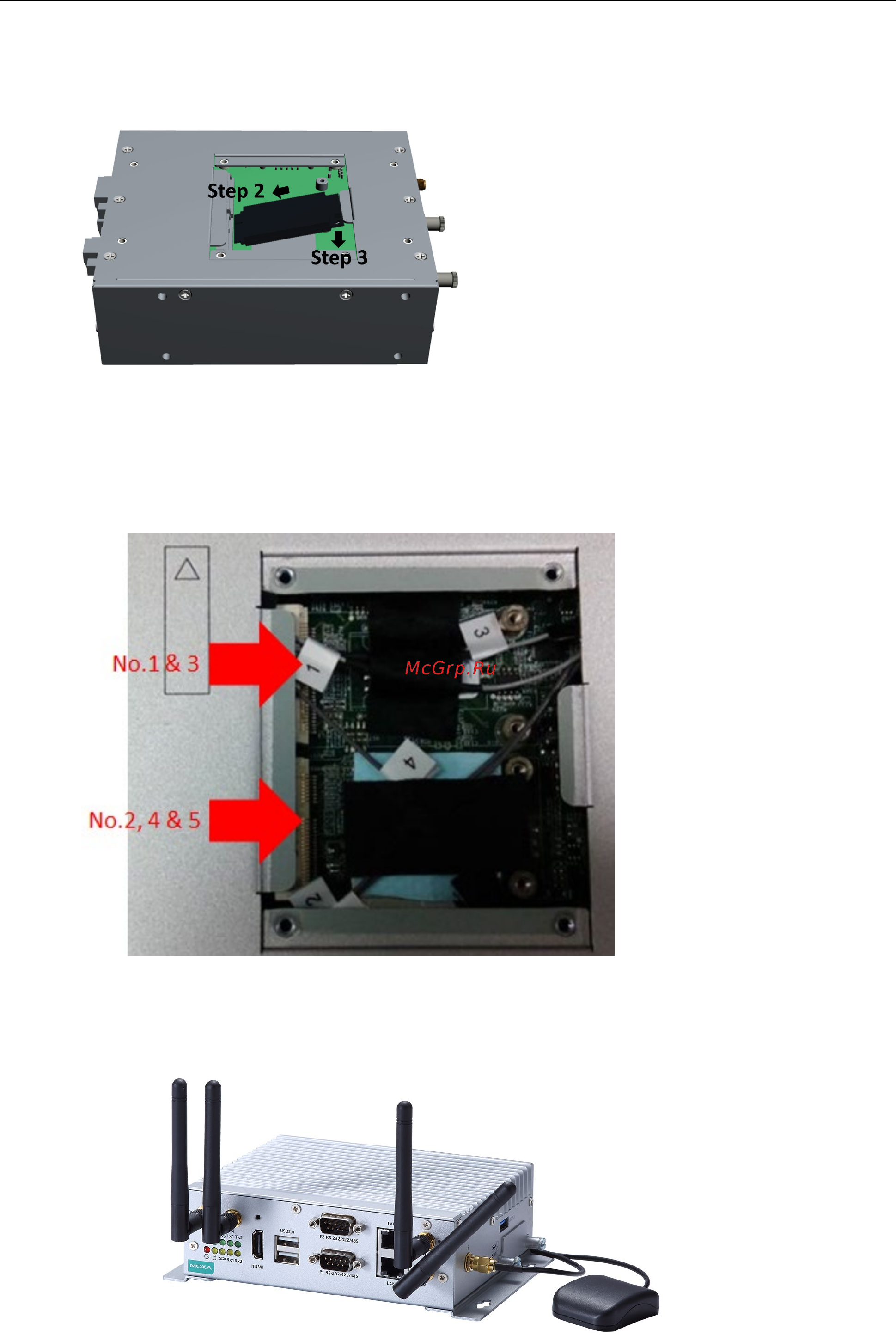

STEP 2: Insert the wireless module card at an angle.
STEP 3: Push down the wireless module card and then use the 2 screws included in the package to attach it to
the V2201.
STEP 4: Connect the connectors with the corresponding wireless module cards.
The following figure illustrates 5 connectors in the mini-PCIe sockets:
No.1 & No.3: Wi-Fi mini-PCIe card
No.2 & No.4: 3G/LTE mini-PCIe card
No.5: GPS
STEP 5: Replace the bottom cover.
STEP 6: You may also purchase external antennas for 3G, 4G, and Wi-Fi from Moxa. Please contact a Moxa
sales representative for information. When installed, the product should appear as shown below:
