![Pioneer A-10-K [12/57] Diagnosis](/img/pdf.png)
Pioneer A-10-K [12/57] Diagnosis
![Pioneer A-10-K [12/57] Diagnosis](/views2/1199331/page12/bgc.png)
12
A-30-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4

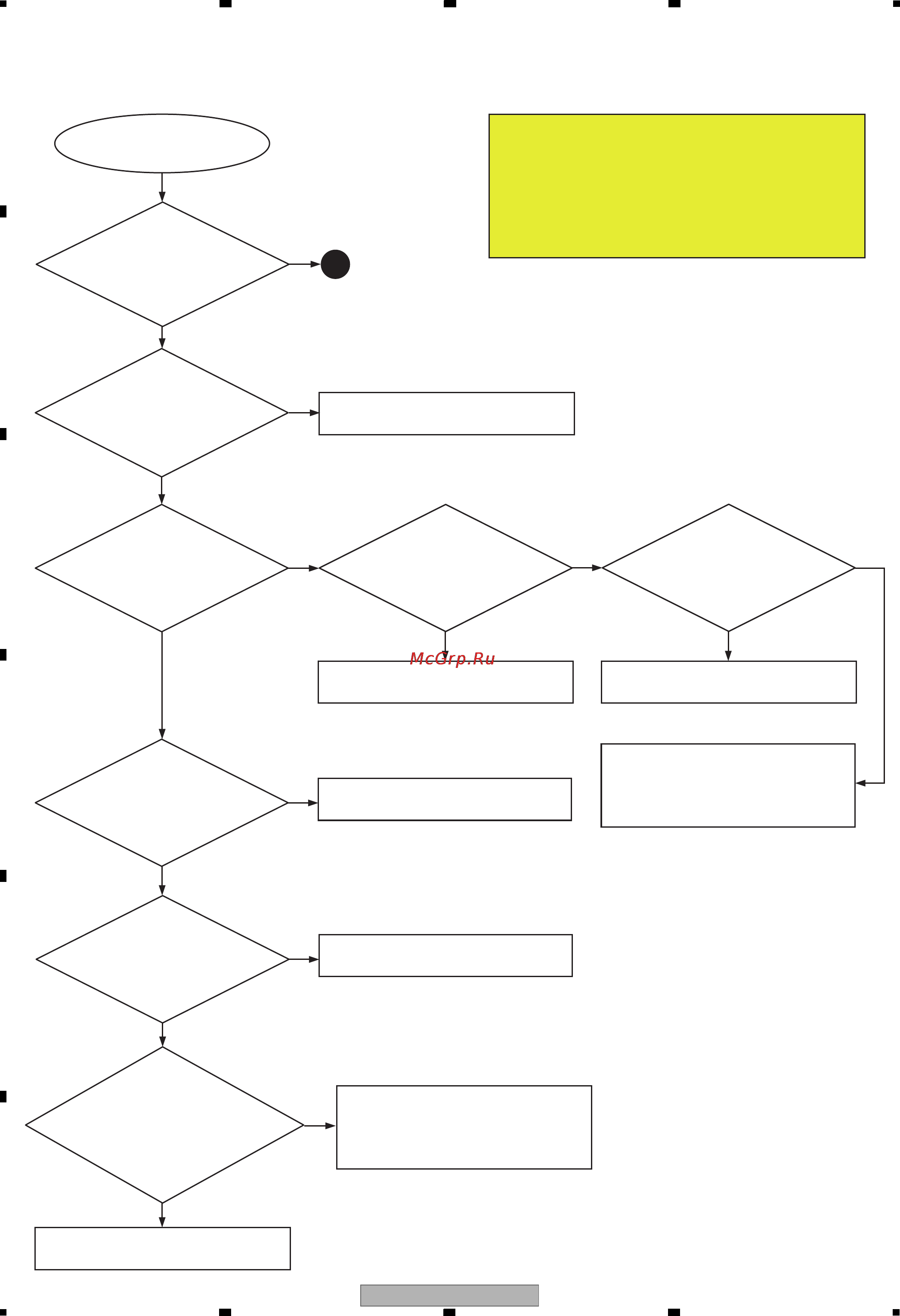

5. DIAGNOSIS
5.1 TROUBLESHOOTING
Is the Power supply
turned ON ?
A
No
No
Yes
Yes
No No No
Yes Yes
Yes
Yes
Yes
Yes
No
No
No
[Status of product]
Insert AC Power cord
Main unit POWER SW: ON (A-30/A-20)
POWER ON operation by remote control Unit
Select SPEAKER-A
INPUT : SACD/CD
Is the standby LED blinking ?
No sound
The protection circuit is operating
Is the voltage of ST_+3.3V
(CN94: 4, 5 pins) +3.3V ?
Is the voltage of IC91: 2 pin
approximately 5V ?
Is there AC waveform on
D913 anode side ?
IC91 failure
D913 failure
D914 failure
Is BACK UP line set to "H" ?
(CN94: 7 pin)
Q903, D917 failure
F901 failure
T901 failure
Is voltage of IC11: 1 pin +3.3V ?
IC12 failure
Is there
a waveform of Remote
Controller signal at IC11: 59 pin
(REMOTE IN) when POWER key
on the Remote Control
Unit pressed ?
IC11 failure
RC11 failure
Connection failure between BN94
and CN94(A-30/A-20)
(For the type, refer to the 5.2 PROTECTION CIRCUIT DESCRIPTION)
No sound
