V2403 Series Linux Software System Recovery
5-17

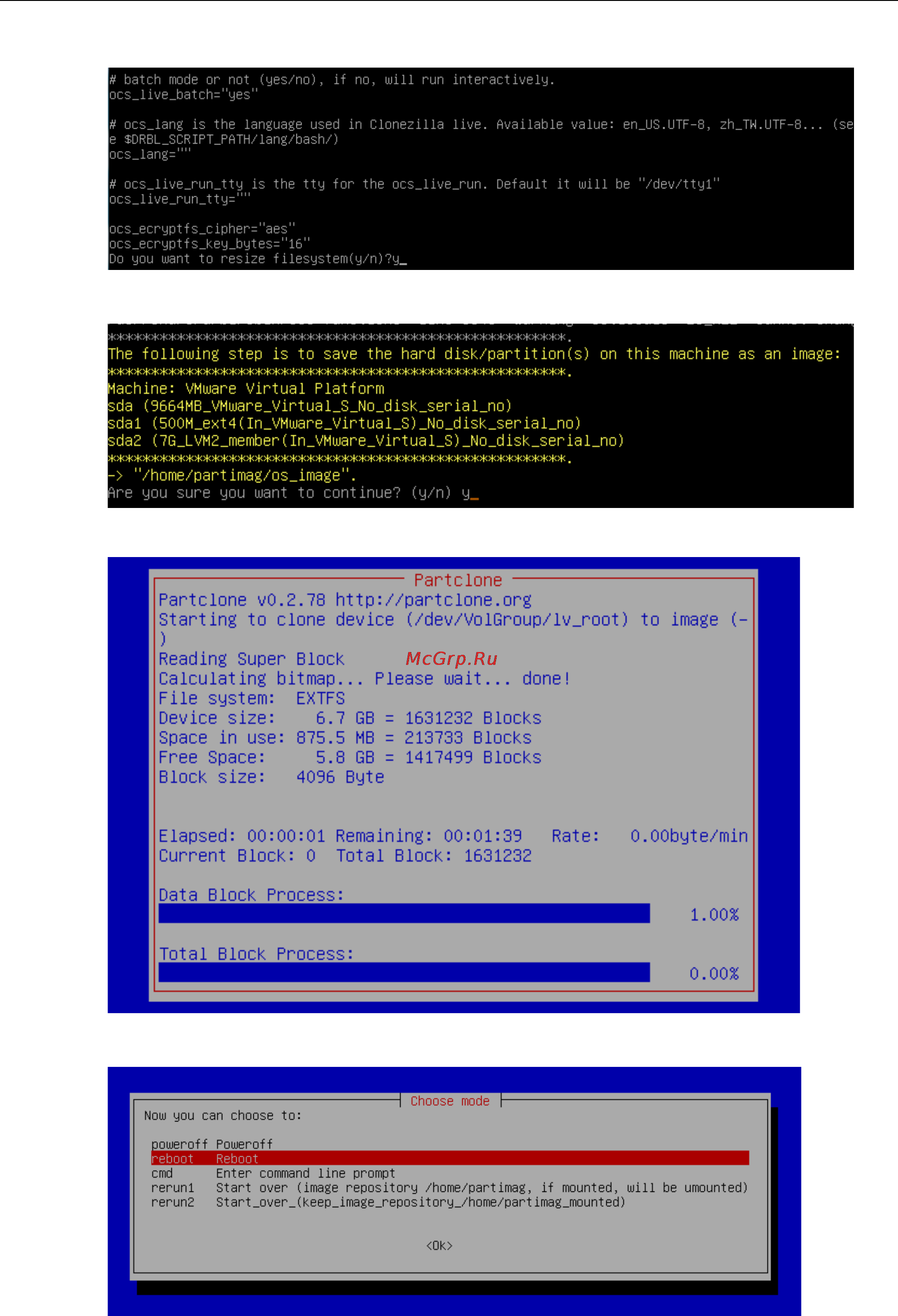

3. If you want to resize the file system, press y to continue the restore process.
4. Enter y to continue the restore process.
5. Wait for the process to finish.
6. Select reboot to reboot the computer.
7. Remove the USB drive after the computer has been rebooted.
