Changing the LVDS Settings

The V2401/2402-XPE computer comes with an LVDS connector, allowing users to connect an

LVDS display. Before you connect your LVDS panel to the embedded computer, be sure the

display settings match your LVDS panel. Use the following steps to adjust LVDS settings.

1. Select [Advanced] tab in the BIOS Menu.

2. Select [Advanced Chipset Features] and then select the [LCD Panel Type] and [Panel Data

Format] compatible with your LVDS panel.

3. Double-click the display icon at the bottom right of the screen

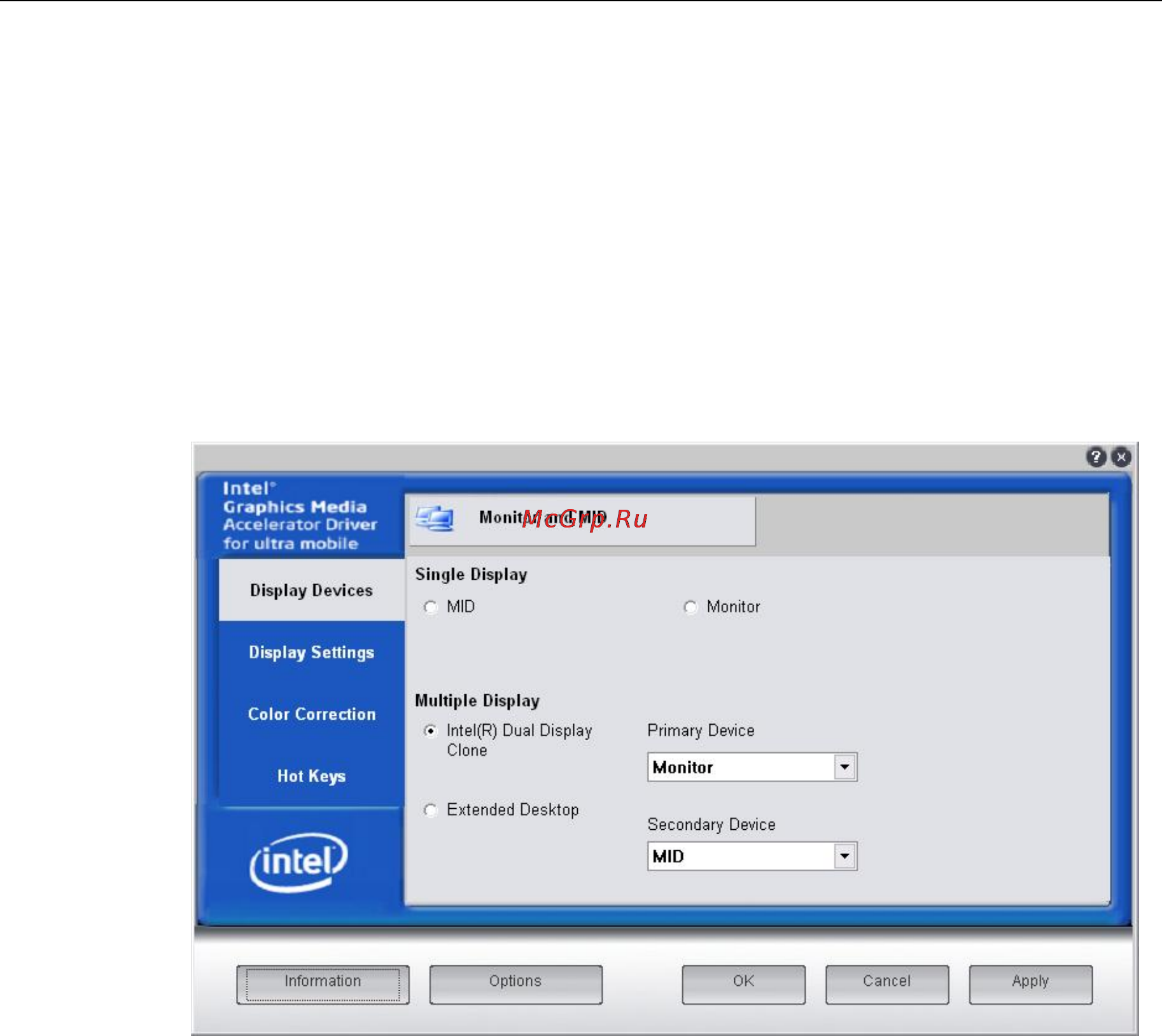

4. Select Graphics Properties. (Ex. Intel(R) Dual Display Clone mode for both CRT and LVDS

output)
