V2101 WinXP User’s Manual Software Configuration

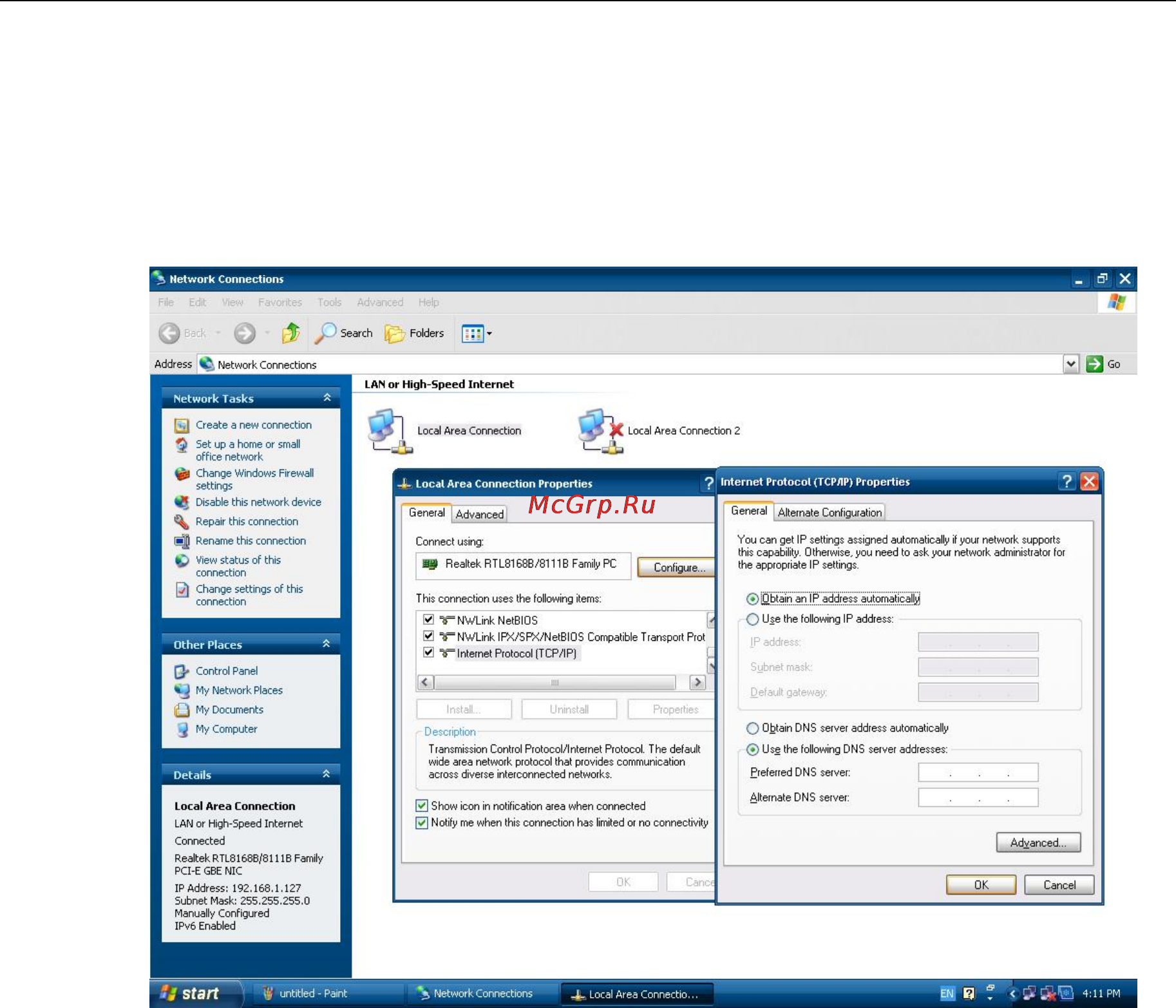

Changing the Network Settings

The V2101-XPE computer comes with two network interfaces. Both of the default IP addresses

are DHCP. Choose Start Æ Control panel Æ Network Connections to enter the network settings

page. Select the connection and choose Properties on the pop-up menu by right-clicking. You can

specify the IP address manually or by DHCP. In addition, you can disable or enable either one or

both connections with the pop-up menu.

Operating Your V2101-XPE Computer with a Telnet Client

Use a crossover Ethernet cable to connect your development workstation directly to the target

computer, or use a straight-through Ethernet cable to connect the computer to a LAN hub or switch.

Next, use a telnet client on your development workstation to connect to the Telnet console utility

of the target computer. After a connection has been established, type the login name and password

as requested to log on to the computer.

After logging in through the Telnet client, a list of commands will be available for operating the

computer. Use HELP to display all of the commands, or type HELP [command name] to display

extended help for the selected command. Some of these commands, such as DATE and TIME, are

very useful for managing the computer’s system time. Other commands, such as DIR and MKDIR,

are good utilities for file management. For example, to inspect the file structure of the root

directory, type DIR.

NOTE: The default user id is “administrator” and the default password is not set; you need to

create a new password for this account to use this telnet client.

NOTE: There is a connection limitation on using Telnet clients. You are only allowed to create

connections with two Telnet clients at the same time.

2-5
