V2101 WinXP User’s Manual Software Configuration

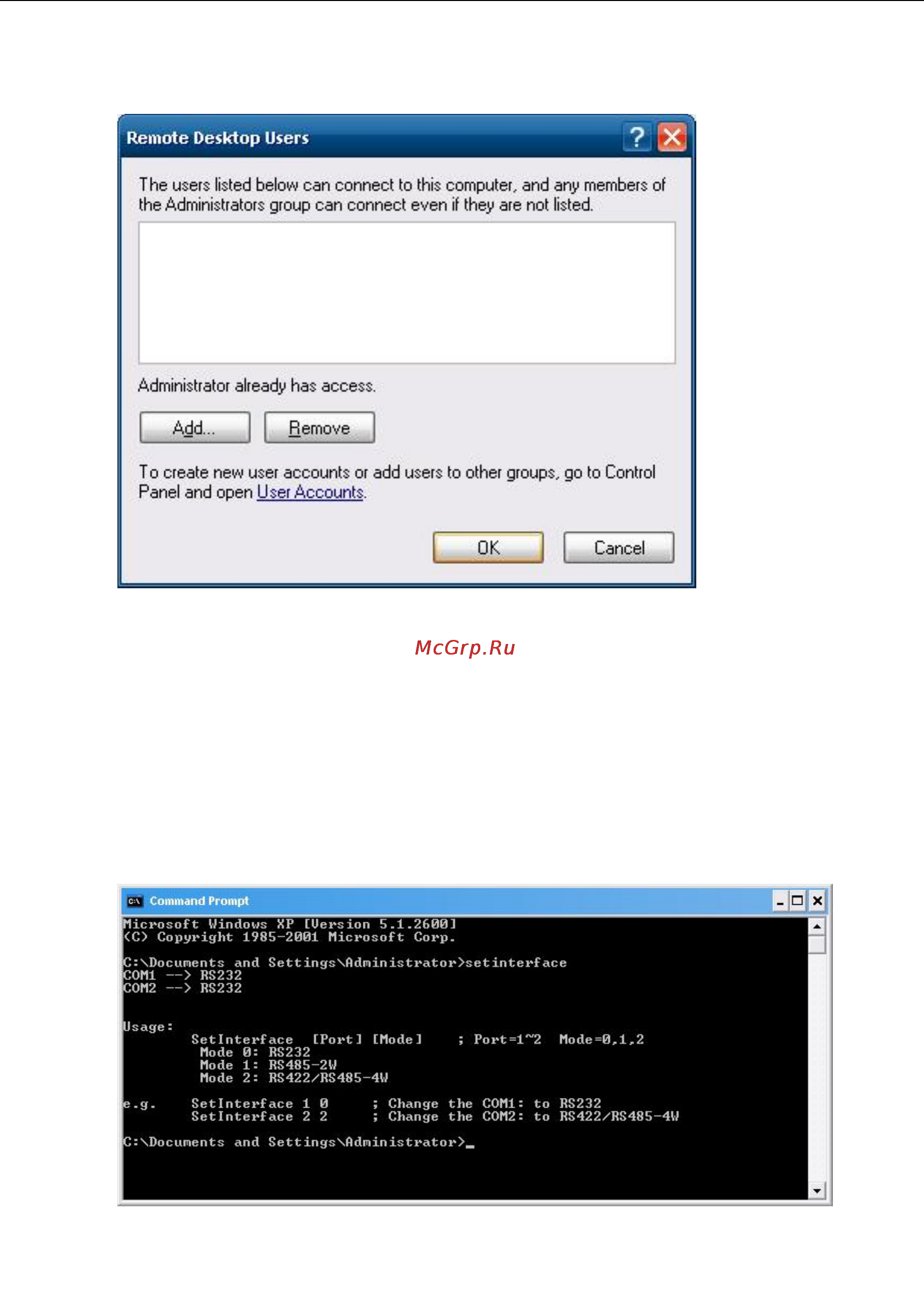

Make sure that the Allow users to connect remotely to this computer checkbox is selected. Next,
click Select Remote Users, and add the users allowed to connect to your desktop. When finished,
click OK.
Serial Ports
V2101-XPE embedded computers have 2 serial ports on the back panel. These ports are designed
to provide reliable, high-speed, 3-in-1 (RS-232, RS-422, and RS-485) operation. Each of the ports
supports baudrates up to 115,200 bps.
Ports 1 and 2 are the embedded serial ports of the CPU chipset. They are standard 16550 UART
ports, and support a baudrate maximum Baudrate of 115,200 bps. Note that these two ports do not
support Hardware Flow Control.
The command line utility “SetInterface.exe” is for users to view and set the current operation
mode.
2-10
