Unpacking da-682a-irigb-driver
(from .../da-682a-irigb-driver_1.1_amd64.deb) ...
Selecting previously unselected package
da-682a-irigb-timesync-daemon.
Unpacking da-682a-irigb-timesync-daemon
(from .../da-682a-irigb-timesync-daemon_1.2_amd64.d
eb) ...
Setting up da-682a-irigb-driver (1.1) ...
WARNING: -e needs -E or –F
Setting up da-682a-irigb-timesync-daemon (1.2) ....
7. Verify that the driver is loaded and that the timesync daemon
is running.
a. Use the lsmod command to check whether the IRIG-B
module is loaded.
root@Moxa:~# lsmod|grep irig
moxa_irigb 12683 1
b. Verify that the timesync daemon is running with the
default configuration.
root@Moxa:~# root@Moxa:~# ps aux|grep ServiceSyncTime
root 3078 0.0 0.1 16136 1140 ? S
10:43 0:00 /usr/sbin/ServiceSyncTime -t 1 -i 10 –B
Off-line Installation
1. Download the driver from the Moxa web site at
http://www.moxa.com
.
2. Upload or copy the following files to the embedded computer
(for example, DA-682A):
• NEW-MOXA-SYS-DEBIAN-KEY
• DA-682A-irigb-driver-1.1_amd64.deb
• DA-682A-irigb_timesync_daemon_1.2_amd64.deb
3. Install Moxa’s public key file on the embedded computer (for
example, DA-682A).
root@Moxa:~# sudo apt-key add NEW-MOXA-SYS-DEBIAN-KEY
4. Install the IRIG-B driver and the timesync daemon. Follow the
on-screen instruction.
root@Moxa:/home/moxa/DebianServer# dpkg -i
DA-682A-irigb-driver-1.1_amd64.deb
Selecting previously unselected package
da-682a-irigb-driver.
(Reading database ... 31660 files and directories
currently installed.)
Unpacking da-682a-irigb-driver (from
DA-682A-irigb-driver-1.1_amd64.deb) ...
Setting up da-682a-irigb-driver (1.1) ...
root@Moxa:/home/moxa/DebianServer# dpkg -i
DA-682A-irigb_timesync_daemon_1.2_amd64.deb
Selecting previously unselected package
da-682a-irigb-timesync-daemon.
(Reading database ... 31661 files and directories
currently installed.)
Unpacking da-682a-irigb-timesync-daemon (from
DA-682A-irigb_timesync_daemon_1.2_amd64.deb) ...
Setting up da-682a-irigb-timesync-daemon (1.2) ...
5. Verify that the IRIG-B module is running.
a. Use the lsmod command to check whether the IRIG-B
module is loaded.
root@Moxa:~# lsmod|grep irig
moxa_irigb 12683 1
b. Verify that the timesync daemon is running with the
default configuration.
root@Moxa:~# root@Moxa:~# ps aux|grep ServiceSyncTime
root 3078 0.0 0.1 16136 1140 ? S
10:43 0:00 /usr/sbin/ServiceSyncTime -t 1 -i 10 –B
For detailed information on software installation, refer to the
DA-IRIGB-4DIO-PCI104-EMC4 Module User’s Manual that you can
download from the Moxa web site at www.moxa.com
.

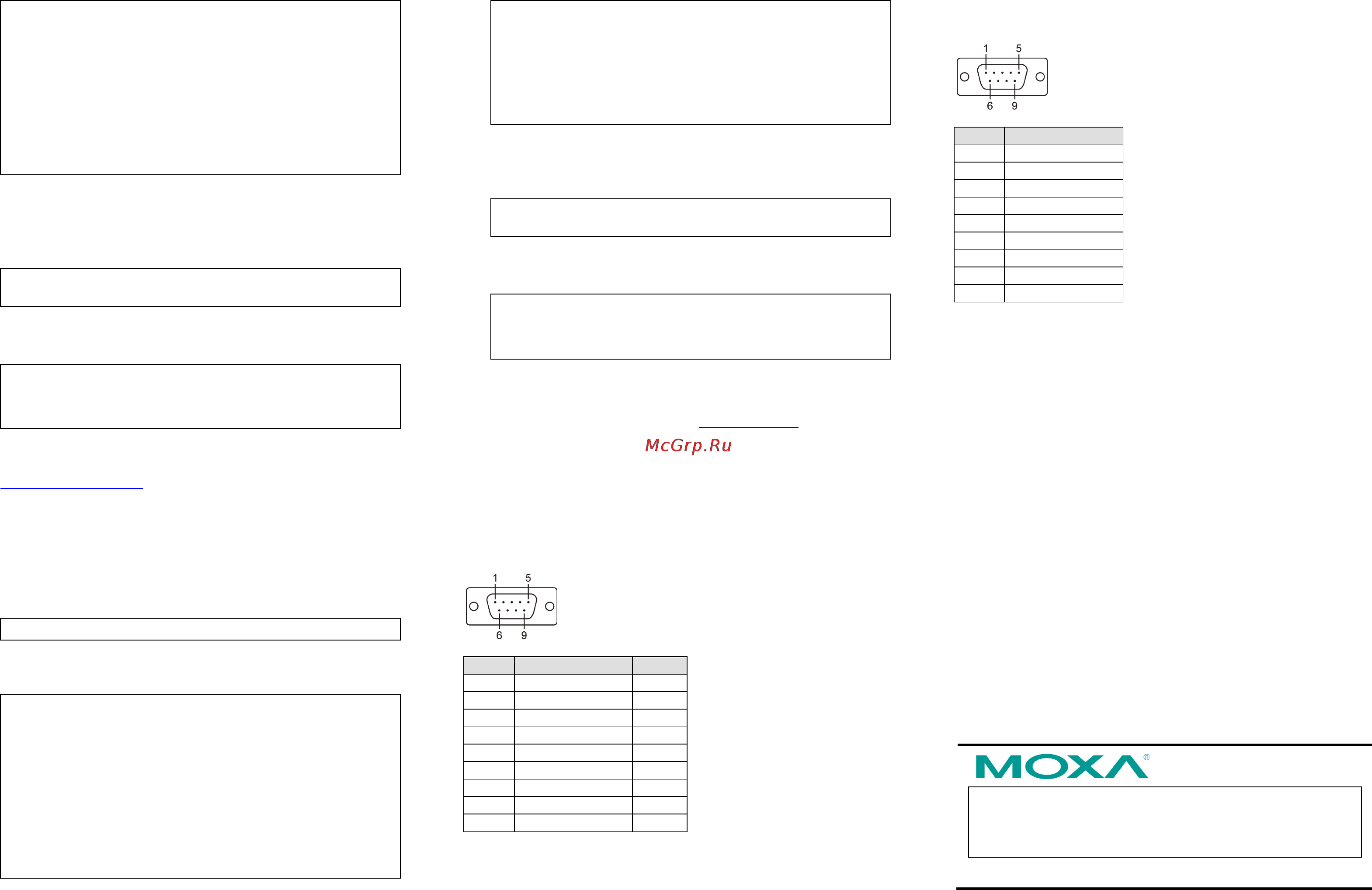

Pin Assignments
This section includes the pin assignments for the male DB9
connectors to connect to an IRIG-B signal source or a digital input
(DI) or digital output (DO) device.
IRIB-B Signal Input
Pin Differential TTL
1 – –
2 – –
3 Data + TTL
4 Data - GND
5 – –
6 – –
7 – –
8 – –
9 – –
Digital Input/Digital Output
Pin DI/DO
1 DO 0
2 DO 1
3 DO 2
4 DO 3
5 DO COM
6 DI 0
7 DI 1
8 DI 2
9 DI Source
