DA-681 Linux Software Configuration
2-3

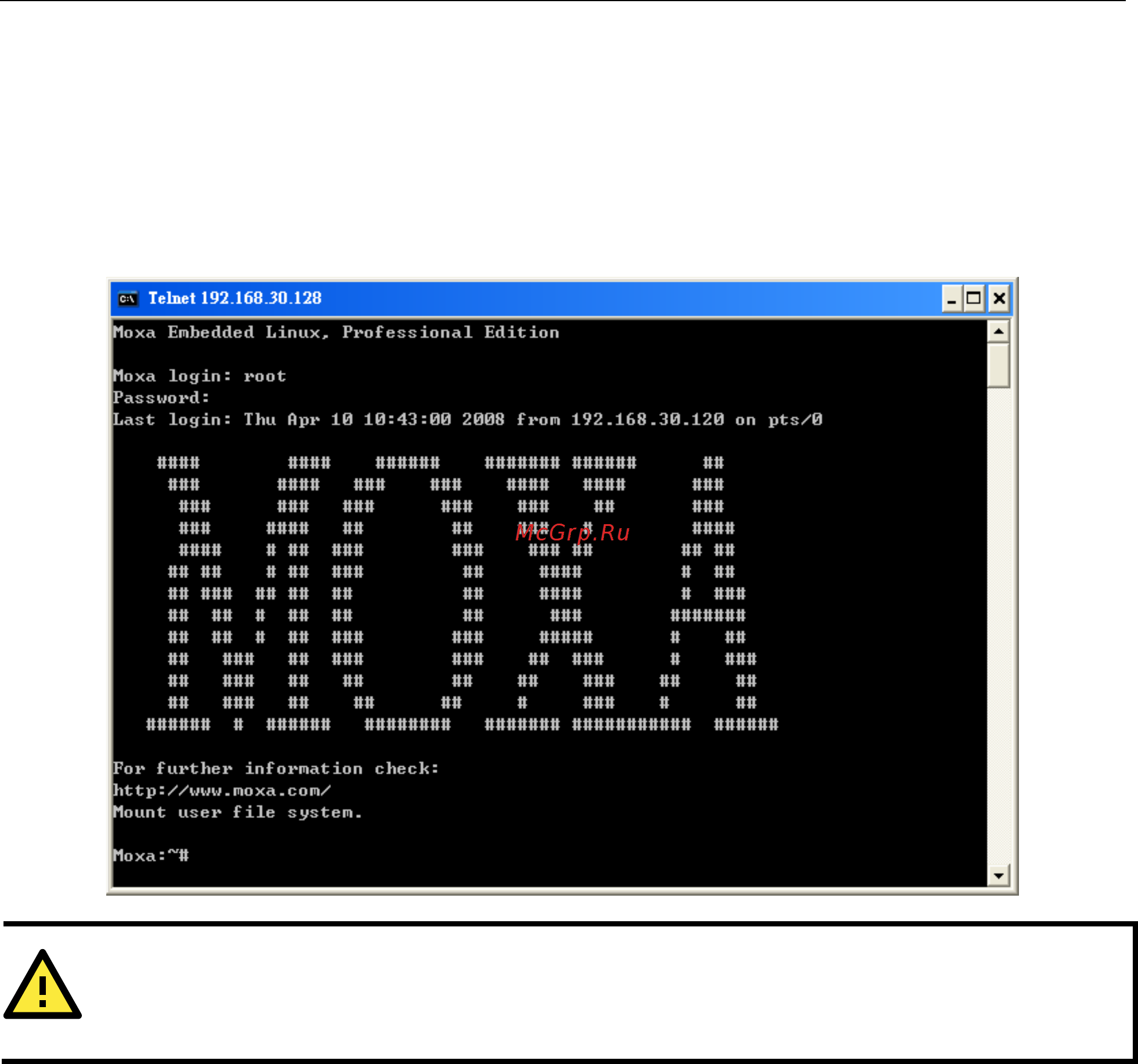

Use a cross-over Ethernet cable to connect your development workstation directly to the target computer, or
use a straight-through Ethernet cable to connect the computer to a LAN hub or switch. Next, use a Telnet client
on your development workstation to connect to the target computer. After a connection has been established,
type the login name and password as requested to log on to the computer. The default values are both root.
Login: root
Password: root
ATTENTION
If you cannot get connected on the first try, re
-
check the IP address and netmask settings, and then unplug and
re
-plug the DA-681-LX’s power cord.
Connecting from an SSH Console
The DA-681-LX computer supports an SSH Console to offer users with better security over the network
compared to Telnet.
