DA-683 Hardware Hardware Installation

2-9

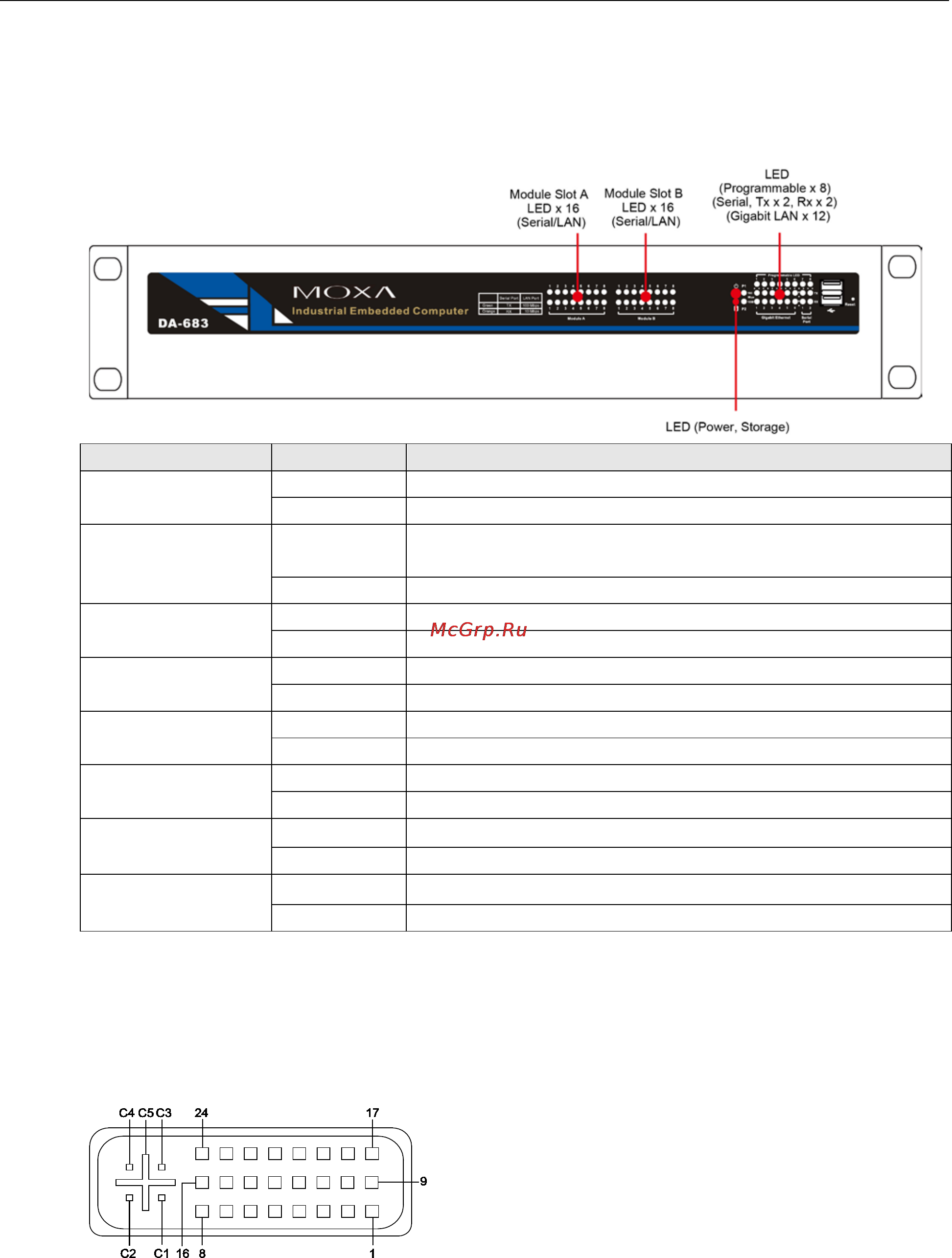

Front Panel LEDs

There are 60 LED indicators on the front panel. Information about each LED is given in the following table. The

additional LEDs, named Port 1 and Port 2, are reserved for future use.

LED Name Color LED Description

Power Green Power is on

Off No power input or power error

Storage Yellow /

Blinking

Data is being written to or to read from the storage unit

Off Storage unit is idle

Ethernet Port

1000 Mbps

Green 1000 Mbps of Ethernet port is active

Off No activity

Ethernet Port

100 Mbps

Yellow 100 Mbps of Ethernet port is active

Off 10 Mbps or no activity

Serial Port TX 1-2

Green

Serial port is transmitting data

Off No operation

Serial Port RX 1-2 Yellow Serial port is receiving data

Off No operation

Module Slot A Green Serial port is transmitting data, or 100 Mbps Ethernet port is active

Orange Serial port is receiving data, or 10 Mbps Ethernet port is active

Module Slot B Green Serial port is transmitting data, or 100 Mbps Ethernet port is active

Orange Serial port is receiving data, or 10 Mbps Ethernet port is active

Connecting to a Display

Your DA-683 embedded computer comes with a 25-pin DVI-I female connector to connect to the DVI-I monitor.

Be sure to remove the power before you connect or disconnect the monitor cable.
