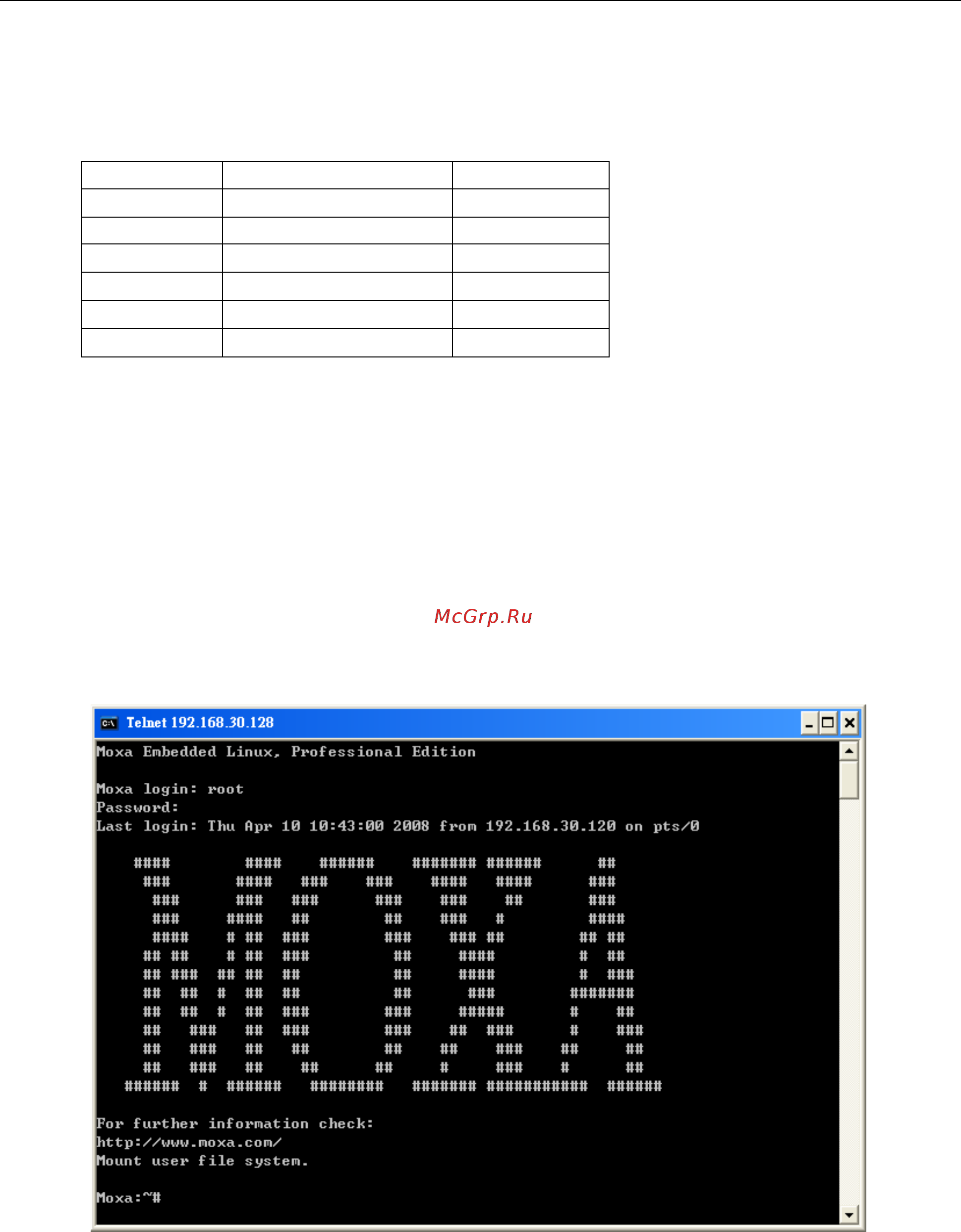

DA-683-LX Software Configuration
2-3
Connecting from a Telnet Console
The DA-683-LX computer comes with six Ethernet ports named LAN1 to LAN6. The default IP addresses and
netmasks of the network interfaces are as follows:
Default IP Address Netmask
LAN 1 192.168.3.127 255.255.255.0
LAN 2 192.168.4.127 255.255.255.0
LAN 3 192.168.5.127 255.255.255.0
LAN 4 192.168.6.127 255.255.255.0
LAN 5 192.168.7.127 255.255.255.0
LAN 6 192.168.8.127 255.255.255.0
Before using the Telnet client, you should change the IP address of your development workstation so that the
network ports are on the same subnet as the IP address for the LAN port that you connect to. For example, if
you connect to LAN 1, you could set your PC’s IP address to 192.168.3.126, and the netmask to 255.255.255.0.
If you connect to LAN 2, you can set your PC’s IP address to 192.168.4.126, and the netmask to
255.255.255.0.
Use a crossover Ethernet cable to connect your development workstation directly to the target computer, or
use a straight-through Ethernet cable to connect the computer to a LAN hub or switch. Next, use a Telnet client
on your development workstation to connect to the target computer. After a connection has been established,
type the login name and password as requested to log on to the computer. The default values are both root.
Login: root
Password: root
