ATTENTION

This product should be mounted on a well-grounded mounting surface such as a metal panel.

V+V-

12-48V

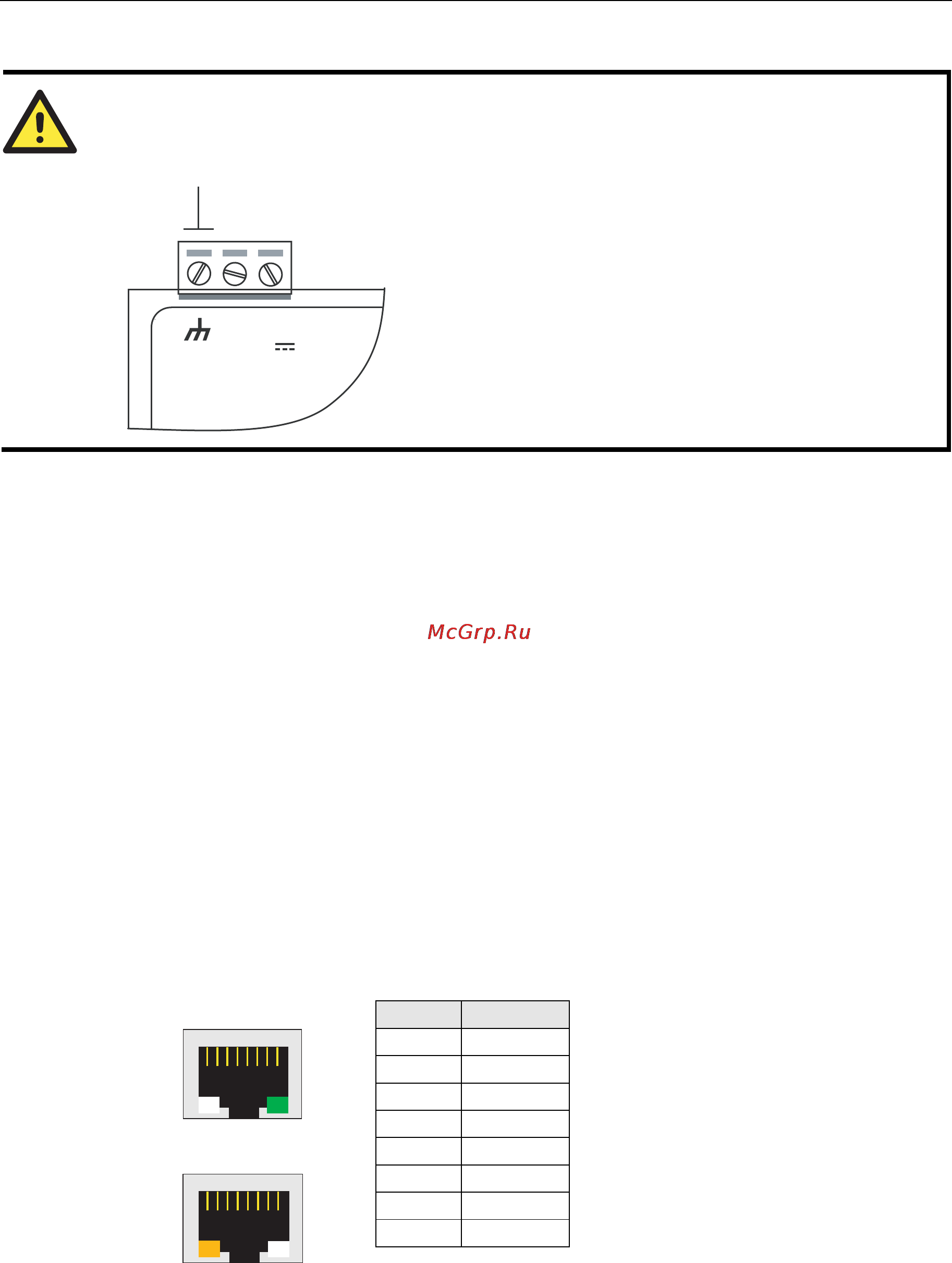

SG: The Shielded Ground (sometimes called

Protected Ground) contact is the left most contact

of the 3-pin power terminal block connector when

viewed from the angle shown in the figure at the

left. Connect the SG wire to an appropriate

grounded metal surface.

Connecting Data Transmission Cables

This section describes how to connect the UC-7101 to the network, to serial devices, and to a

serial COM terminal.

Connecting to the Network

Connect one end of the Ethernet cable to the UC-7101’s 10/100M Ethernet port, and the other end

of the cable to the Ethernet network. If the cable is properly connected, the UC-7101 will indicate

a valid connection to the Ethernet in the following ways:

y The top-right LED on the connector glows a solid green when connected to a 100 Mbps

Ethernet network.

y The top-left LED on the connector glows a solid orange when connected to a 10 Mbps

Ethernet network.

y The LEDs will flash when Ethernet packets are being transmitted or received.

The 10/100 Mbps Ethernet LAN 1 port uses 8-pin RJ45 connectors. Pinouts for the port are shown

in the following diagram.

8-pin RJ45

Pin Signal

1 ETx+

2 ETx-

3 ERx+

4 ---

5 ---

6 ERx-

7 ---

8 ---
