Moxa UC-8410A-LX [2/7] Overview

- 2 -

Overview

The UC-8410A series of dual-core embedded computers support a rich

variety of communication interfaces, and come with 8 RS-232/422/485

serial ports, 3 Ethernet ports, 1 PCIe mini slot for a wireless module, 4

digital input channels, 4 digital output channels, 1 mSATA slot, and 2 USB

2.0 hosts. The computer's built-in 1-GB SD card and 512 MB DDR3

SDRAM give you sufficient memory to run your applications, and the

mSATA slot provides you the flexibility to expand the data storage

capacity.

Package Checklist

• 1 UC-8410A embedded computer

• Wall-mounting kit

• DIN-rail mounting kit

• Ethernet cable: RJ45 to RJ45 cross-over cable, 100 cm

• CBL-4PINDB9F-100: 4-pin pin header to DB9 female console port

cable, 100 cm

• Quick installation guide (printed)

• Document and software CD

• Warranty card

Please notify your sales representative if any of the above items are

missing or damaged.

Panel Layout

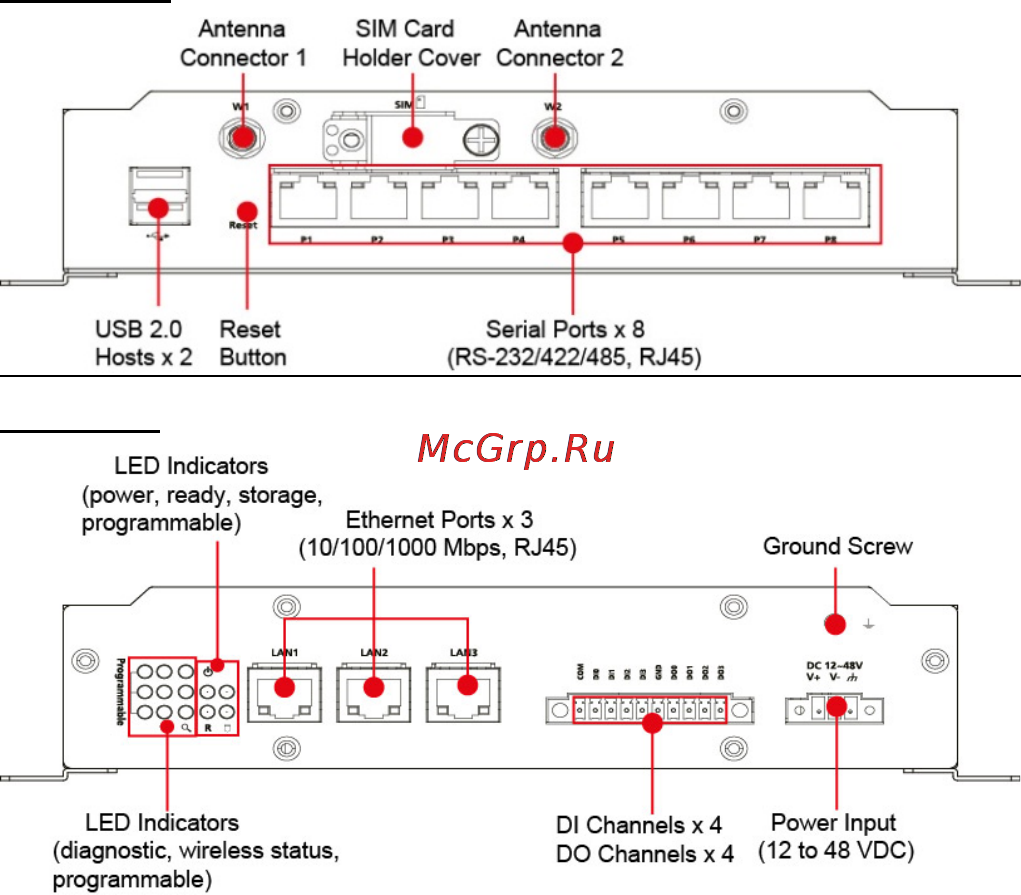

Refer to the following figures for the panel layouts.

Front View

Rear View
