- 4 -

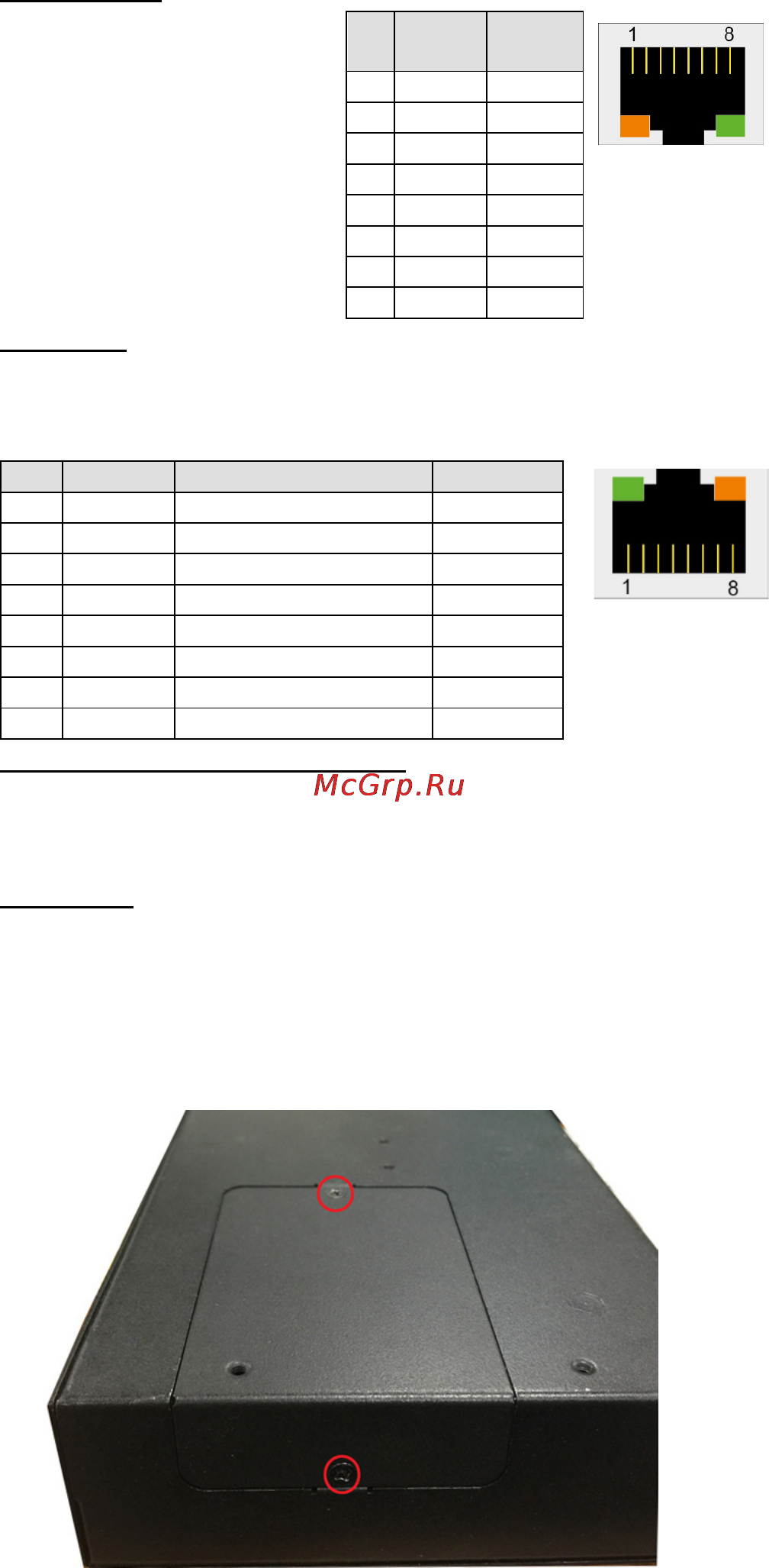

Ethernet Port
The 3 10/100/1000 Mbps
Ethernet ports (LAN 1, LAN 2,
and LAN3) use RJ45 connectors.
PIN
10/100
Mbps
1000
Mbps
1
ETx+
TRD(0)+
2
ETx-
TRD(0)-
3
ERx+
TRD(1)+
4
---
TRD(2)+
5
---
TRD(2)-
6
ERx-
TRD(1)-
7
---
TRD(3)+
8
---
TRD(3)-
Serial Port
The 8 serial ports (P1 to P8) use RJ45 connectors. Each port can be
configured by software as RS-232, RS-422, or RS-485. The pin
assignments are shown in the following table:
Pin
RS-232
RS-422/RS-485-4W
1
DSR
–
2
RTS
TXD+
3
GND
GND
4
TXD
TXD-
5
RXD
RXD+
6
DCD
RXD-
7
CTS
–
8
DTR
–
Digital Inputs and Digital Outputs
The UC-8410A has 4 digital output channels and 4 digital input channels.
Refer to the UC-8410A Hardware User's Manual for detailed pinouts and
wiring.
SD/mSATA
The UC-8410A comes with a pre-installed SD card that contains the Linux
operating system. In addition, the UC-8410A is provided with a built-in
mSATA socket for installing an mSATA drive. To replace or install the SD
card, or to install an mSATA drive, follow these steps:
1. Use a screwdriver to remove the screws on the rear and side panels of
the cover over the mSATA socket.
