- 3 -
Installing the UC-8410A
Wall or Cabinet
The two metal brackets included with the UC-8410A can be used to attach
it to a wall or the inside of a cabinet. Using two screws per bracket, first
attach the brackets to the bottom of the UC-8410A. Next, use two screws
per bracket to attach the UC-8410A to a wall or cabinet.

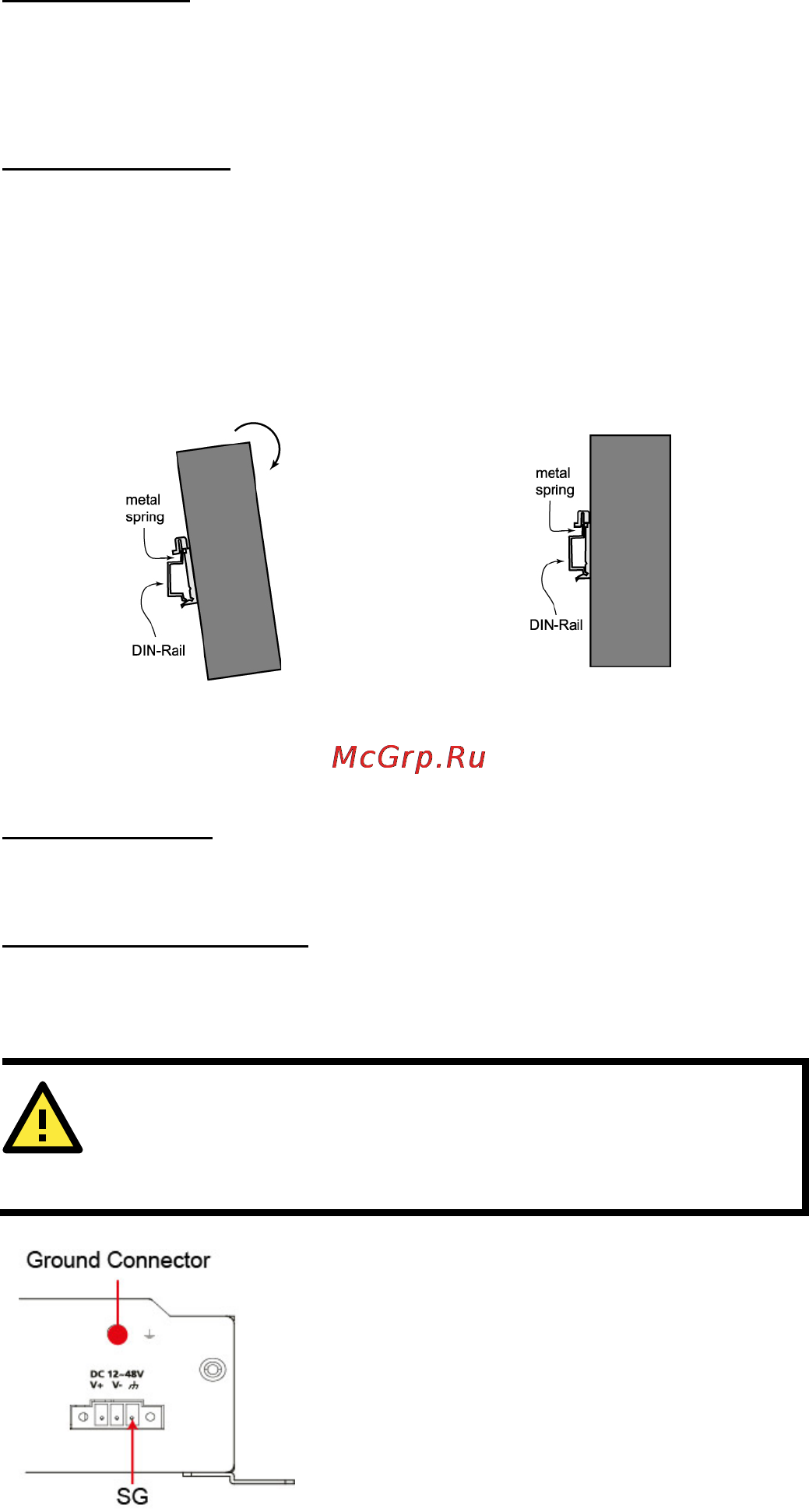

DIN-Rail Mounting
An aluminum DIN-rail attachment plate is included in the package. To
attach the plate to the UC-8410A, situate the stiff metal spring towards
the top.
STEP 1:
Insert the top of the DIN
rail into
the slot just below the stiff metal
spring.
STEP 2:
The DIN
-rail attachment unit will
snap into place as shown below
:
To remove the UC-8410A from the DIN rail, reverse Steps 1 and 2 above.
Connector Description
Power Connector
Connect the 12-48 VDC power line to the UC-8410A’s terminal block. The
Ready LED will glow a steady green color when the OS is ready.
Grounding the UC-8410A
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting the power.
ATTENTION
This product is intended to be mounted
on to a well-grounded
mounting surface, such as a metal panel.
SG: The Shielded Ground (sometimes called
Protected Ground) contact is the
right
most
contact
on the 3-pin power terminal block
connector when viewed from the angle
shown here. Connect the SG wire to an
appropriate grounded metal surface.
An
additional ground connector is provided just
above the power terminal block, which you
can use for grounding protection.
