UC-8410/8416/8418/8430
Quick Installation Guide
Fifth Edition, March 2011
1. Overview
The UC-8410/8416/8418/8430 embedded computers feature 8
RS-232/422/485 serial ports, 3 10/100 Mbps Ethernet ports,
digital input and digital output channels, switch ports, CF and USB
ports for storage expansion, and 2 VGA outputs (V8430 only). All
of these features make the UC-8410/8416/8418/8430 computers
ideal for your embedded applications.
2. Package Checklist
• 1 UC-8410 or UC-8416 or UC-8418 or UC-8430 embedded
computer
• Wall-mounting kit
• DIN-Rail mounting kit
• Ethernet Cable: RJ45 to RJ45 cross-over cable, 100 cm
• CBL-4PINDB9F-100: 4-pin pin header to DB9 female console
port cable, 100 cm
• Universal power adaptor (includes terminal block to power jack
converter)
• Quick installation guide (this guide)
• Document and software CD
• Warranty card
Note: Please notify your sales representative if any of the
above items are missing or damaged.

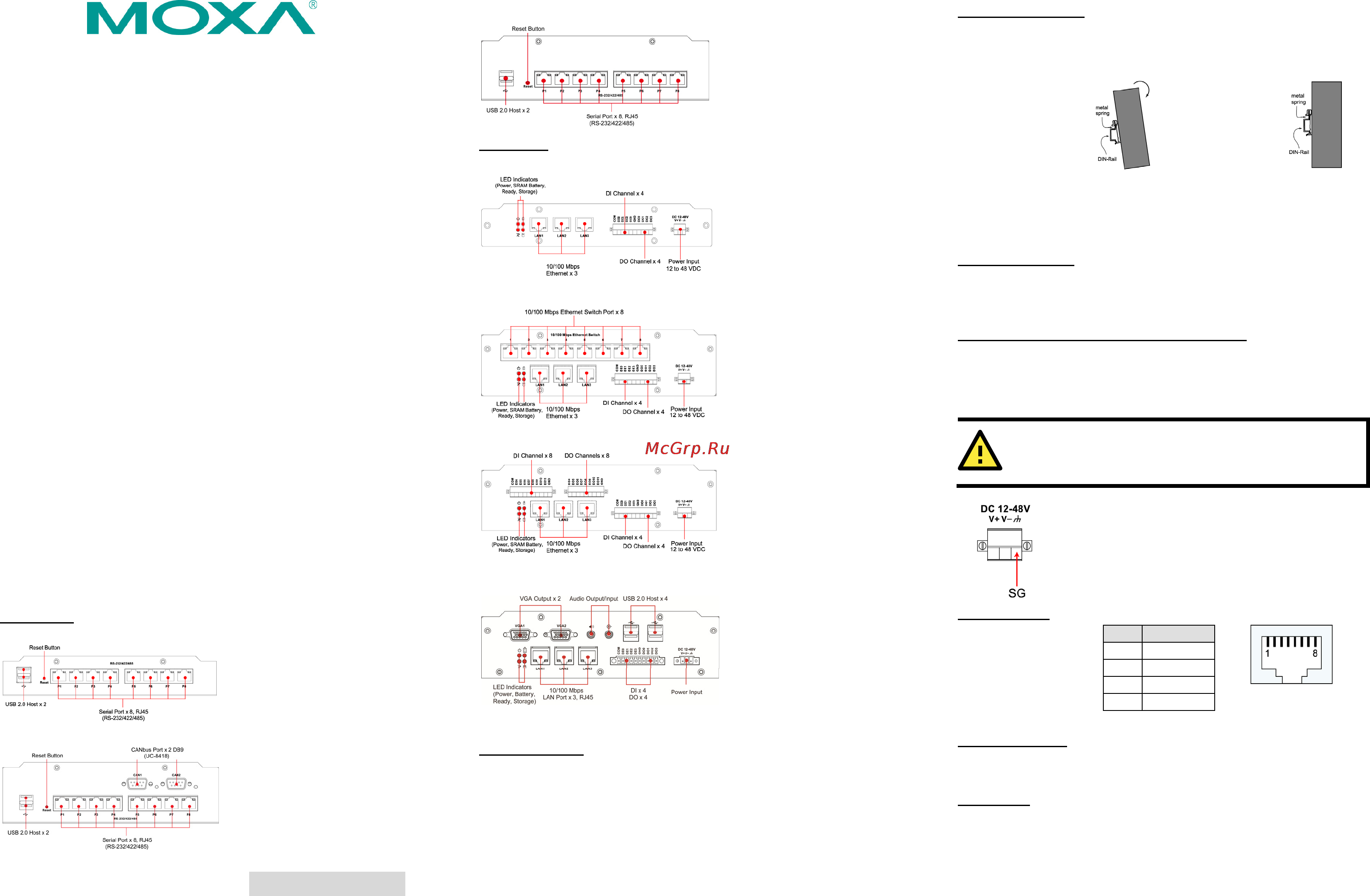

3. Panel Layout
Refer to the following figures for the panel layouts.
Front View
UC-8410
UC-8416/8418
UC-8430
Rear View
UC-8410
UC-8416
UC-8418
UC-8430
4. Installing the UC-8410/8416/8418/8430
Wall or Cabinet
The two metal brackets included with the
UC-8410/8416/8418/8430 can be used to attach it to a wall or the
inside of a cabinet. Using two screws per bracket, first attach the
brackets to the bottom of the UC-8410/8416/8418/8430. Next,
use two screws per bracket to attach the
UC-8410/8416/8418/8430 to a wall or cabinet.
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate is included in the
package. To attach the plate to the UC-8410/8416/8418/8430,
situate the stiff metal spring towards the top.
STEP 1: Insert the
top of the DIN-Rail
into the slot just
below the stiff metal
spring.
STEP 2: The
DIN-Rail
attachment unit
will snap into place
as shown below.
To remove the UC-8410/8416/8418/8430 from the DIN-Rail,
reverse Steps 1 and 2 above.
5. Connector Description
Power Connector
Connect the 12-48 VDC power line to the
UC-8410/8416/8418/8430’s terminal block. The Ready LED will
glow a steady green color when the OS is ready.
Grounding the UC-8410/8416/8418/8430
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection
from the ground screw to the grounding surface prior to connecting
the power.
ATTENTION
This product is intended to be mounted to a well-grounded
mounting surface, such as a metal panel.
SG: The Shielded Ground (sometimes called
Protected Ground) contact is the right most contact
of the 3-pin power terminal block connector when
viewed from the angle shown here. Connect the SG
wire to an appropriate grounded metal surface.
Ethernet Port
The 3 10/100 Mbps
Ethernet ports (LAN 1,
LAN 2, and LAN3), and
8 10/100 Mbps switch
ports (UC-8416 only)
use RJ45 connectors.
Pin Signal
1 ETx+
2 ETx-
3 ERx+
6 ERx-
VGA Connectors
The MC-8430 comes with two D-Sub 15-pin female connectors to
connect the VGA CRT monitors.
Serial Port
The 8 serial ports (P1 to P8) use RJ45 connectors. Each port can be
configured by software as RS-232, RS-422, or RS-485. The pin
assignments are shown in the following table (next page):
