EM-1240-LX
Quick Installation Guide
Third Edition, June 2008
1. Overview
Thank you for purchasing the Moxa EM-1240 Embedded Module. The
product’s features include 4 software-selectable RS-232/422/485 serial
ports, two 10/100 Mbps Ethernet ports, and SD signals for external SD
socket connections, based on the Moxa ARM9 32-bit 192 MHz
communication processor. These features make the EM-1240 ideal for
use as the core module of an industrial embedded system.
In addition, Moxa provides an EM-1240 Development Kit, which is
designed for system and software program development at the system
evaluation stage. The kit includes the EM-1240 embedded computer,
and the EM-1240-DK carrier board, which is used to evaluate the
EM-1240. The EM-1240’s pre-installed, ready-to-run μClinux Kernel
2.6 makes it easy for users to develop programs for any application.
2. Package Checklist
Before installing the EM-1240 Development Kit, verify that the
package contains the following items:
y 1 EM-1240 Embedded Module
y 1 EM-1240-DK (the carrier board of the EM-1240 Development Kit)
y Quick Installation Guide
y Document & Software CD
y Cross-over Ethernet cable
y Universal Power Adaptor
y Product Warranty Statement
Please notify your sales representative if any of the above items are
missing or damaged.
3. Product Features
y Moxa ART ARM9 32-bit 192 MHz communication processor
y 16 MB RAM, 8 MB Flash ROM on the board
y 4 software-selectable RS-232/422/485 serial ports
y Dual 10/100 Mbps Ethernet ports
y RS-232 console port (supports full signal and PPP)
y Ready-to-Run μClinux Kernel 2.6.9 communication platform
y SD signals supported for external Secure Digital (SD) socket
connection
y 10 GPIO reserved for system integration (NOTE: To enable GPIO,
SD must first be disabled)

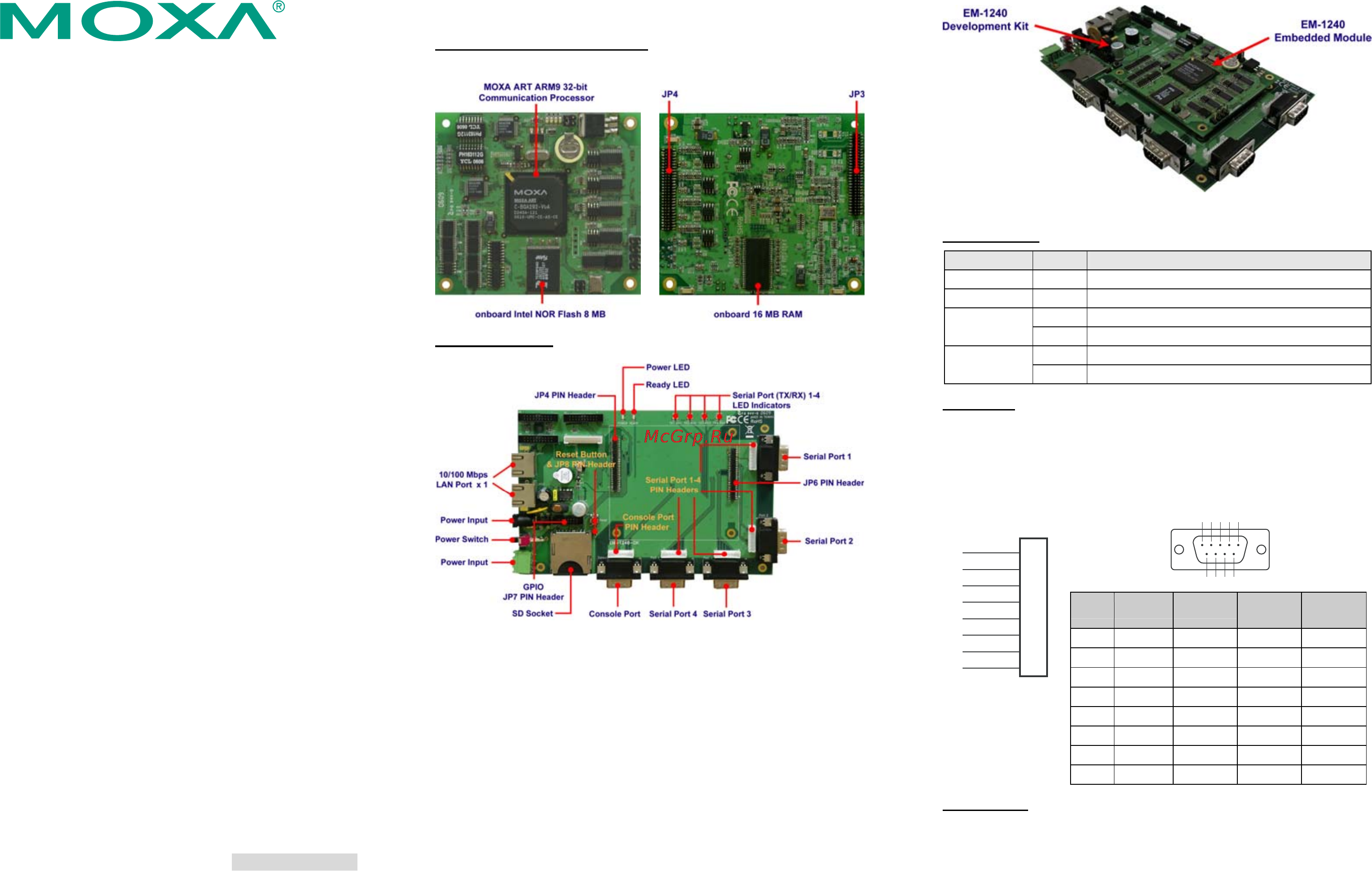

4. Hardware Introduction
EM-1240 Embedded Module View
Top View Bottom View
EM-1240-DK View
5. Combining Embedded Module with EM-1240-DK
Insert the EM-1240 embedded module vertically onto the Development
Kit board. Note that the pin marked “JP4” on the embedded module
must be matched with the pin marked “JP6” on the Development Kit;
the pin marked “JP3” on the embedded module must be matched with
the pin marked “JP4” on the development kit. Use caution when
combining the boards, since improper handling could damage the
boards’ pins.
6. EM-1240-DK Introduction
LED Indicators
LED Name Color LED Function
Power Green Power is on.
Ready Green Power is on and system functions normally.
Green Serial port 1-4 is transmitting data.
P1-P4 (Tx)
Off Serial port 1-4 is not transmitting data.
Yellow Serial port 1-4 is receiving data.
P1-P4 (Rx)
Off Serial port 1-4 is not receiving data.
Serial Ports
The EM-1240 embedded module offers 4 software-selectable serial
ports. The software that comes with the product can be used to
configure these ports. Detailed information is provided in the Software
User’s Manual.
Male DB9 Port
54
321
9876
Pin Header
J1/J3/J4/J6
1
2
3
4
5
6
7
8
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
Pin RS-232 RS-422
4-wire
RS-485
2-wire
RS-485
1 DCD TxDA(-) TxDA(-) ---
2 RxD TxDB(+) TxDB(+) ---
3 TxD RxDB(+) RxDB(+) DataB(+)
4 DTR RxDA(-) RxDA(-) DataA(-)
5 GND GND GND GND
6 DSR --- --- ---
7 RTS --- --- ---
8 CTS --- --- ---
Console Ports
The EM-1240 embedded module has 1 serial console port for onsite
configuration. However, it can also be used as an RS-232 serial port.
Detailed information is provided in the Software User’s Manual.
P/N: 1802012400012
