UC-8410/8416/8418/8430 Getting Started
2-4
Linux Users

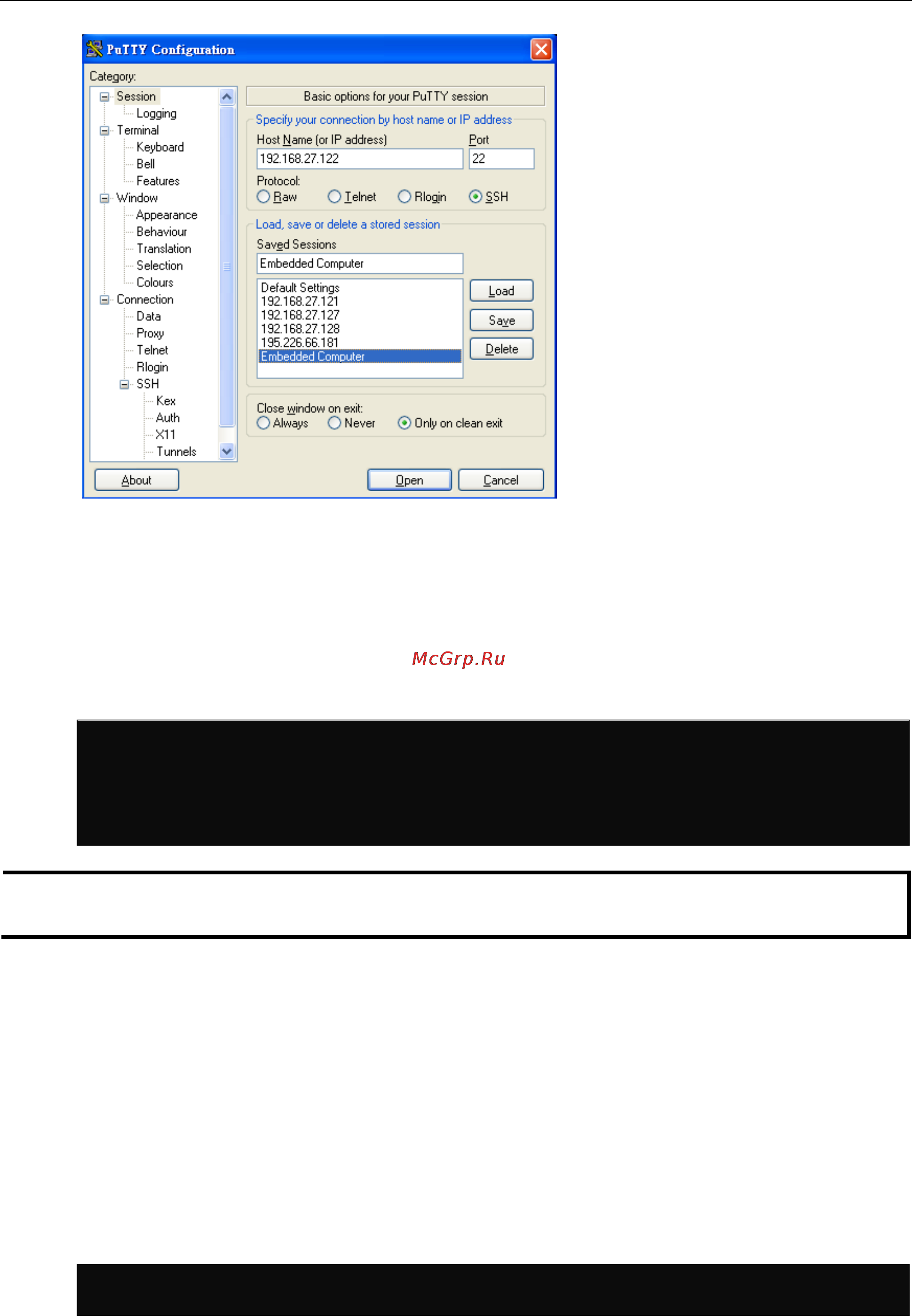

From a Linux machine, use the “ssh” command to access the UC-8410/8416/8418/8430’s Console utility via
SSH.
#ssh 192.168.3.127
Select yes to complete the connection.
[root@bee_notebook root]# ssh 192.168.3.127
The authenticity of host ‘192.168.3.127 (192.168.3.127)’ can’t be established.
RSA key fingerprint is 8b:ee:ff:84:41:25:fc:cd:2a:f2:92:8f:cb:1f:6b:2f.
Are you sure you want to continue connection (yes/no)? yes_
NOTE
SSH provides better security compared to Telnet for accessing the UC-8410/8416/8418/8430
’s console utility
over the network.
Configuring the Ethernet Interface
The network settings of the UC-8410/8416/8418/8430/8430 can be modified with the serial console, or online
over the network.
Modifying Network Settings with the Serial Console
In this section, we use the serial console to configure network settings of the target computer.
Follow the instructions given in a previous section to access the console utility of the target computer via the
serial console port, and then type #cd /etc/network to change directory.
root@Moxa:# cd /etc/network/
root@Moxa:/etc/network/#
Type #vi interfaces to edit the network configuration file with vi editor. You can configure the
UC-8410/8416/8418/8430’s Ethernet ports for static or dynamic (DHCP) IP addresses.
