UC-8410/8416/8418/8430 Hardware Hardware Connection Description
4-6

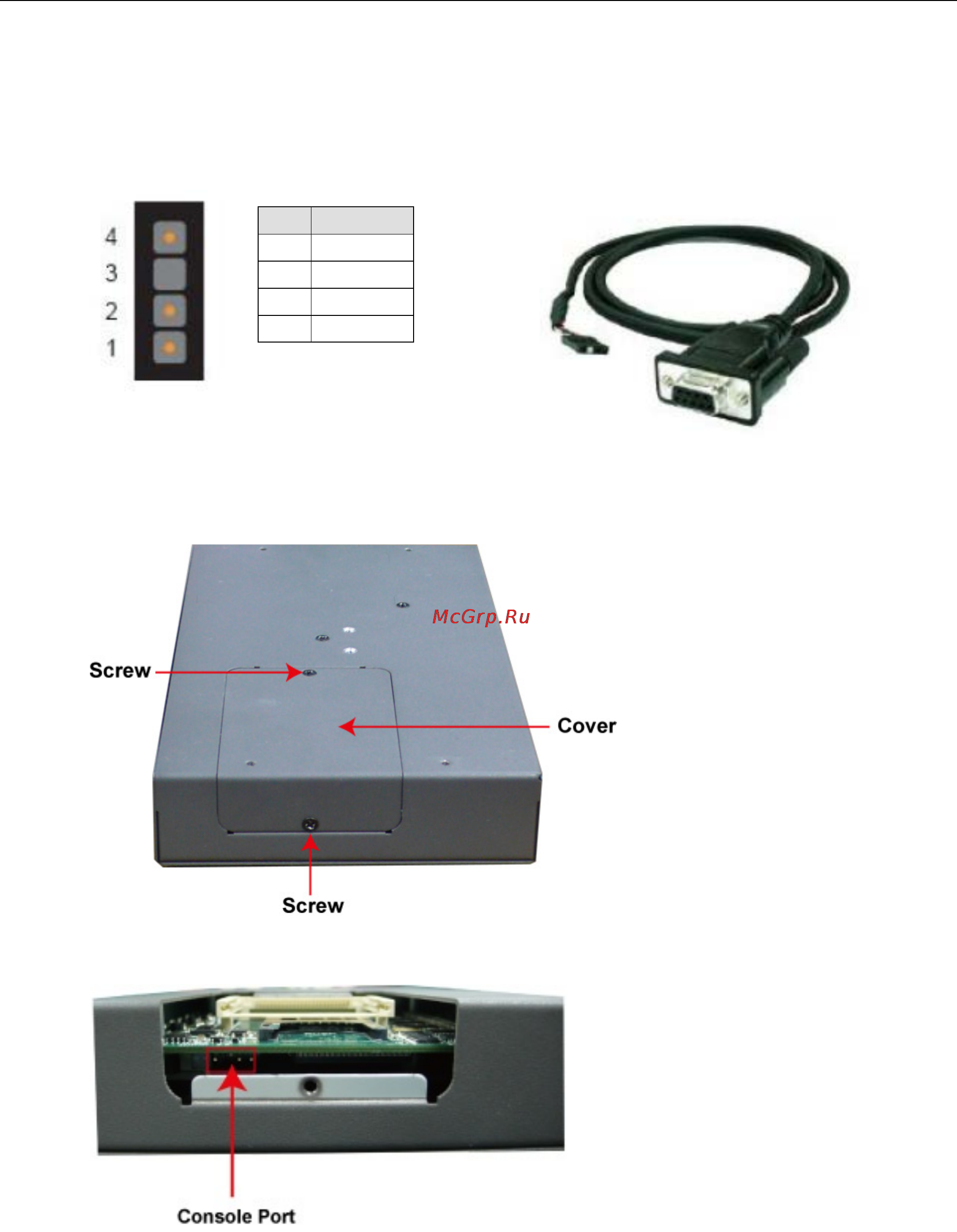

Connecting to the Console Port
The UC-8410/8416/8418/8430’s console port is a 4-pin pin header RS-232 port. Refer to the following figure
for console port cable pin assignments.
Serial
Console Port and Pinouts Serial Console Cable
Pin Signal
1 TxD
2 RxD
3 NC
4 GND
The console port is located blow the CF card socket. Use a screwdriver to remove the two screws holding the
cover to the embedded computer’s housing.
Refer to the following figure for the location of the console port.
