Compact/Fanless Computers

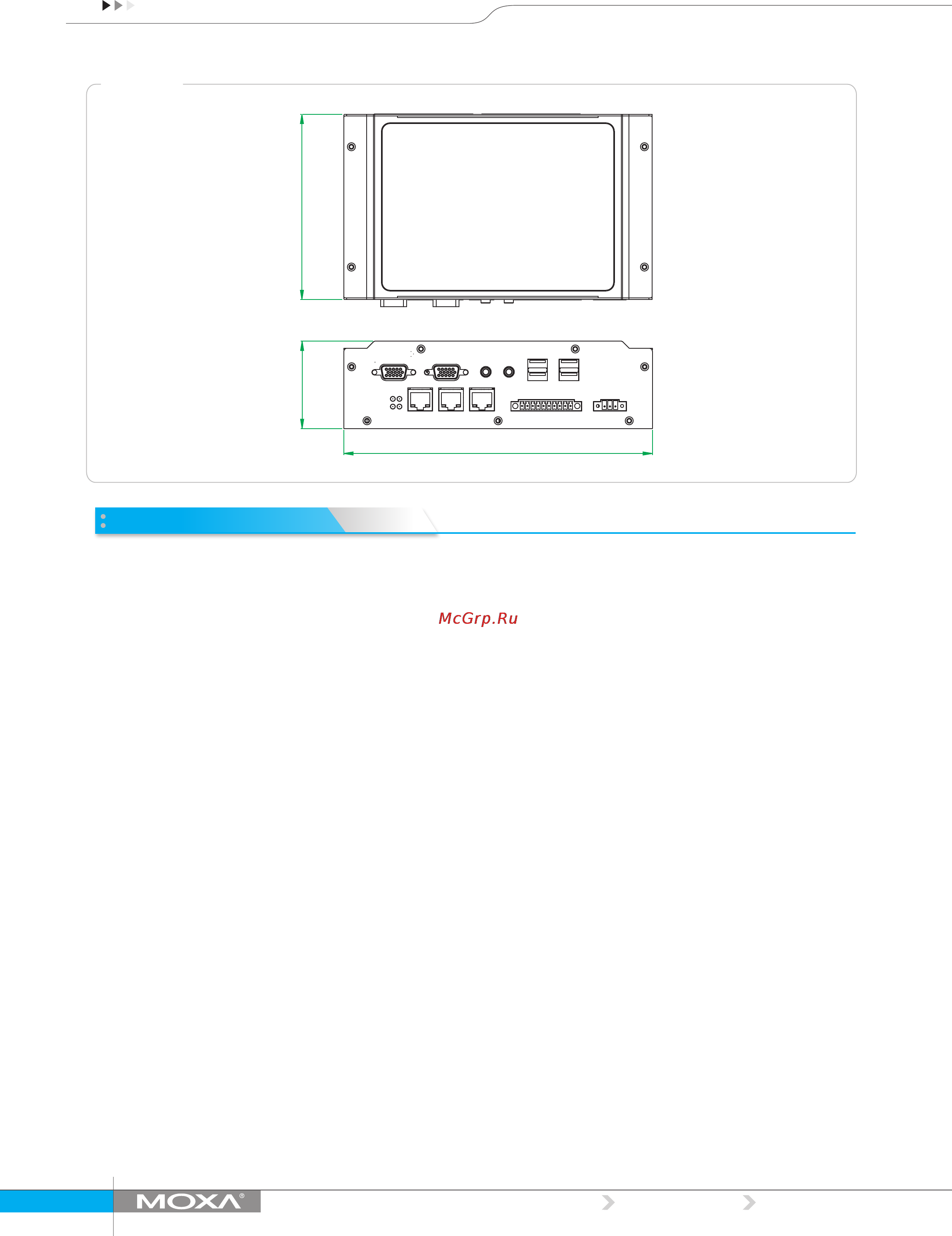

Dimensions
Unit: mm (inch)
200 (7.87)
57 (2.24) 120 (4.72)
Hardware Specifications
Computer
CPU: Intel XScale IXP435, 533 MHz
OS (pre-installed): Linux, Window CE 6.0
DRAM: 256 MB DDR2 SDRAM onboard (supports DDR2 up to 512
MB)
SRAM: 256 KB, battery backup
Flash:
32 MB NOR Flash onboard to store OS
32 MB NAND Flash onboard to store data
USB: USB 2.0 host x 6
Storage
Storage Expansion: CompactFlash socket
Expansion Bus: PCI/104
Other Peripherals
Audio: SM502 chip with line-in/out interface
Display
Graphics Controller: SM502 chip
Display Interface: 15-pin D-Sub connector x 2
Resolution: CRT display mode with pixel resolution up to 1024 x 768
Ethernet Interface
LAN: 3 auto-sensing 10/100 Mbps ports (RJ45)
Magnetic Isolation Protection: 1.5 kV built-in
Serial Interface
Serial Standards: 8 RS-232/422/485 ports, software-selectable (8-pin
RJ45)
Console Port: RS-232 (TxD, RxD, GND), 4-pin pin header output
(115200, n, 8, 1)
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction
control) for RS-485
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates;
see user’s manual for details)
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Digital Input
Input Channels: 4, source type
Input Voltage: 0 to 30 VDC
Digital Input Levels for Dry Contacts:
• Logic level 0: Close to GND
• Logic level 1: Open
Digital Input Levels for Wet Contacts:
• Logic level 0: +3 V max.
• Logic level 1: +10 V to +30 V (COM to DI)
Connector Type: 10-pin screw terminal block (4 points, COM, GND)
Isolation: 3 kV optical isolation
Digital Output
Output Channels: 4, sink type
Output Current: Max. 200 mA per channel
On-state Voltage: 24 VDC nominal, open collector to 30 V
Connector Type: 10-pin screw terminal block (4 points, GND)
LEDs
System: Power, Ready, Storage, Battery for SRAM
LAN: 10M/Link x 3, 100M/Link x 3 (on connector)
Serial: TxD x 8, RxD x 8
Reset Button: Supports “Reset to Factory Default”
Physical Characteristics
Housing: SECC sheet metal (1 mm)
Weight: 1 kg
Dimensions: 200 x 57 x 120 mm (7.87 x 2.24 x 4.72 in)
Mounting: DIN-Rail, wall
Environmental Limits
Operating Temperature:
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature:
Standard Models: -20 to 75°C (-4 to 167°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
