Modules & Boards

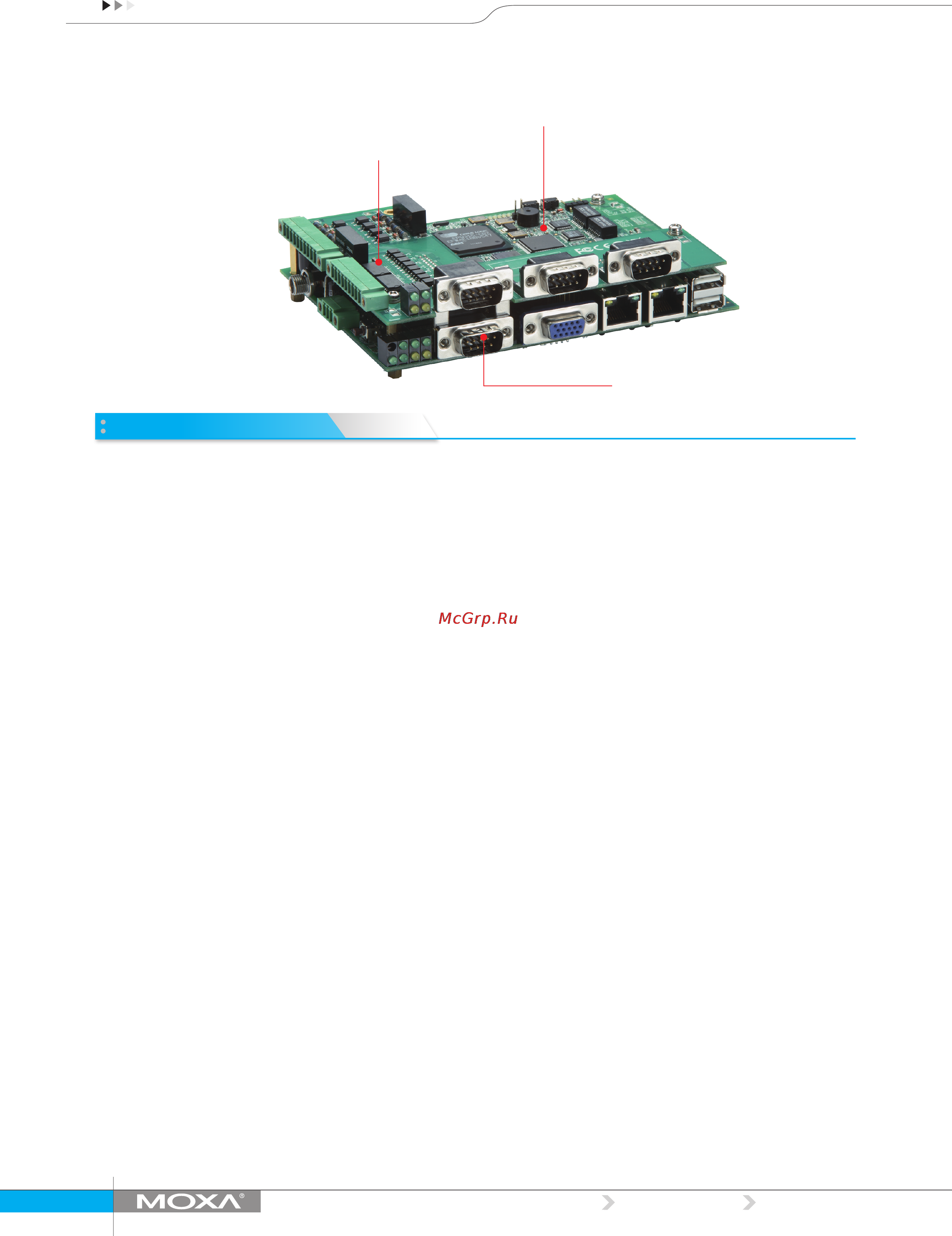

EM-2260 Embedded Module
EM-2260-DK
Peripheral Extension Kit
Hardware Specifications
Computer
CPU: Cirrus Logik EP9315 ARM9 CPU, 200 MHz
OS (pre-installed): Windows CE 6.0 or Linux
DRAM: 128 MB onboard
Flash: 32 MB
Storage
Storage Expansion: EIDE interface for connecting up to 2 external
devices
Display
Graphics Controller: EP9315 internal graphics accelerator engine with
TTL graphical signal support
Display Memory: Dynamic video memory (shares system memory)
Resolution: 1024 x 768, 8 bits
Ethernet Interface
LAN: 2 auto-sensing 10/100 Mbps ports (RJ45)
Magnetic Isolation Protection: 1.5 kV built-in
Serial Interface
Serial Standards: 4 RS-232/422/485 ports, software-selectable
Console Port: RS-232 (TxD, RxD, GND), 4-pin pin header output
(115200, n, 8, 1)
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC
®
(automatic data direction
control) for RS-485
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates;
see user’s manual for details)
Serial Signals
TTL: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Digital Input
Input Channels: 8
Input Voltage: 3.3 V, CMOS level
Digital Output
Output Channels: 8
Digital Output Levels: 3.3 V, CMOS level
Switches and Buttons
Reset Button: Supports “Reset to Factory Default”
Physical Characteristics
Weight: 70 g
Dimensions: 106 x 87 mm (4.17 x 3.43 in)
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature: -20 to 80°C (-4 to 176°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements
Input Voltage: 12 VDC
Power Consumption: 5.8 W (480 mA @ 12 VDC)
Standards and Certifications
EMC: EN 55022 Class A, EN 61000-3-2 Class A, EN 61000-3-3, EN
55024, FCC Part 15 Subpart B Class A
Green Product: RoHS, CRoHS, WEEE
Reliability
Alert Tools: Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)
MTBF (meantime between failures): 131,832 hrs
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Development Kit
