Moxa IA262-I-CE [16/74] Operating your ia26x ce computer via telnet client

IA261/262 WinCE User’s Manual Getting Start

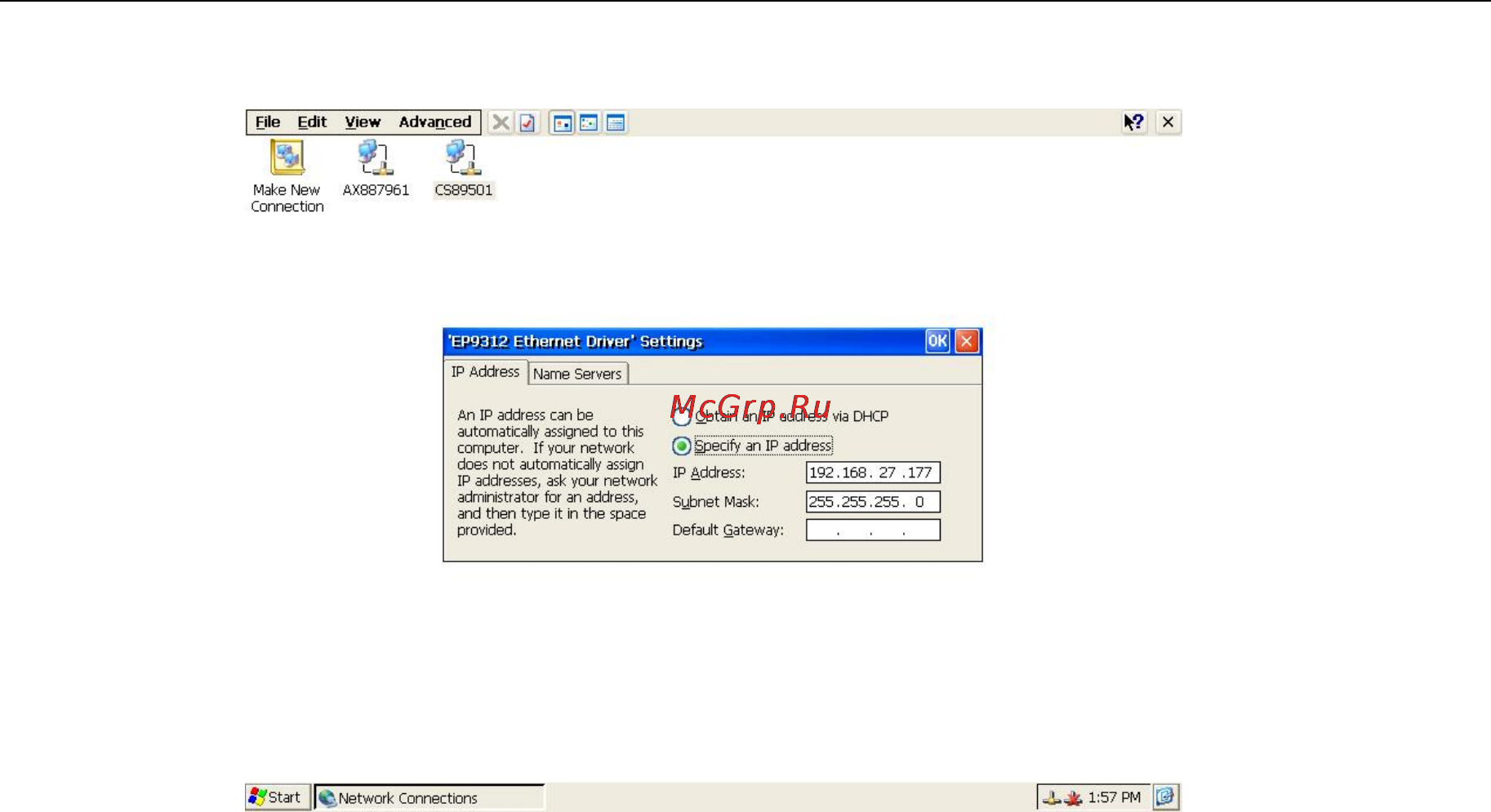

2. Right-Click the LAN icon and click the [property].

3. Click “OK” button after configuration is done.

Operating Your IA26X-CE Computer via Telnet Client

Before operating your IA26X-CE computer using the Telnet client, we suggest that you change the

network settings of the computer (see the earlier section) to have at least one of the two network

ports situated in the same LAN as your development workstation.

Use a cross-over Ethernet cable to directly connect your development workstation to the target

computer, or a straight-through Ethernet cable to connect the computer to a LAN hub or switch.

Next, use a telnet client in your development workstation to connect to the telnet console utility of

the target computer. Upon a successful connection, type the login name and password as requested

to logon to the computer.

After logging in via the console port or a telnet client, you have a list of busybox commands

available to operate the computer. Use HELP to display all the commands, or type HELP

[command name] to display extended help for the selected command. Some of these commands

such as DATE and TIME are very useful to you to easily manage the system time of the computer.

Others commands such as DIR and MKDIR are good utilities for file management. For example,

to inspect the file structure of the root directory, type DIR

\> dir /b

NORFlash

My Documents

Program Files

Temp

Windows

2-4
