Moxa V2406A-C2-T [51/85] V2406a w7e series moxa synmap package

V2406A W7E Series Moxa SynMap Package

6-21

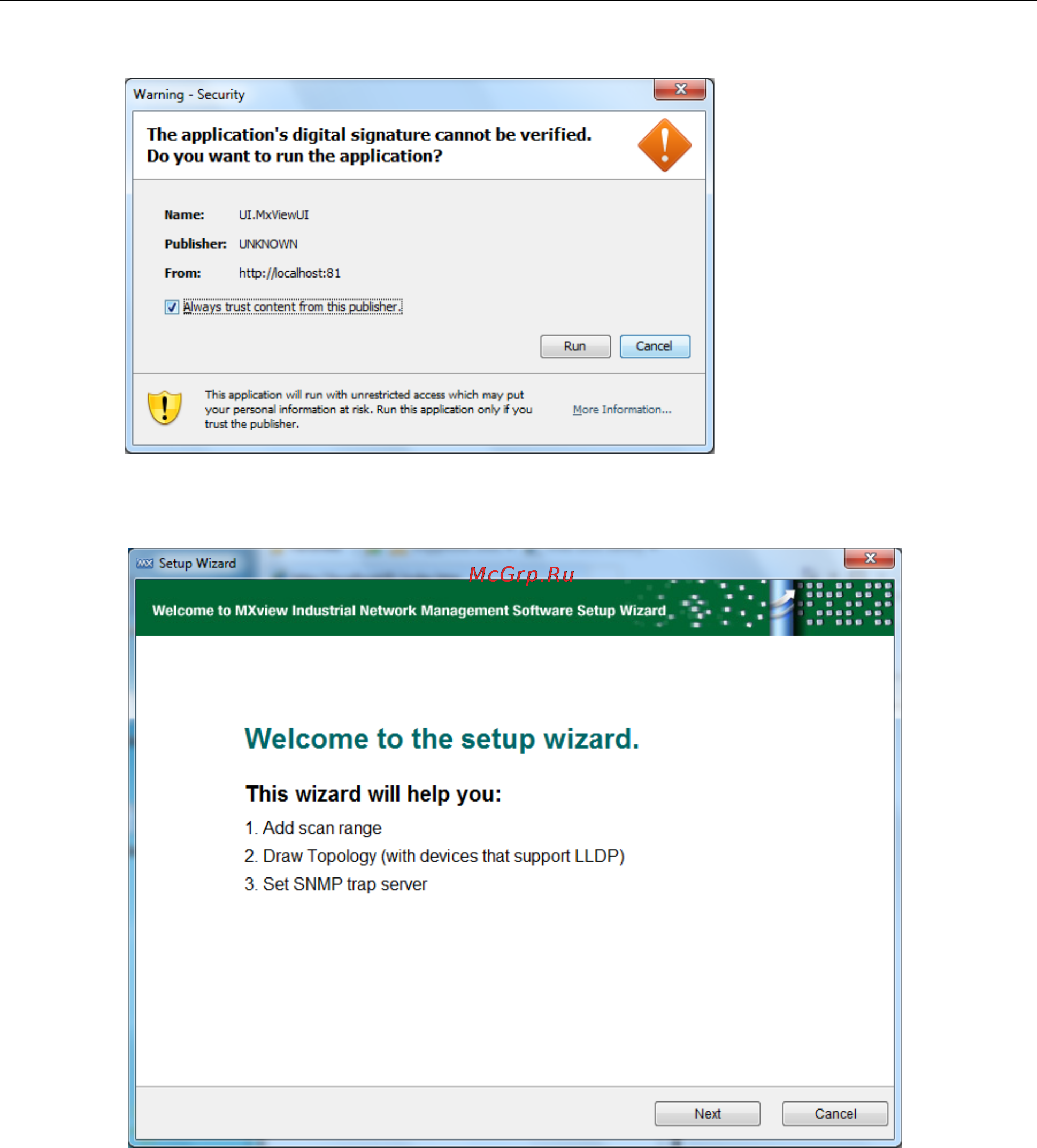

17. Click Run.

18. Click Next to launch the setup wizard to configure basic settings; otherwise, click Cancel to launch the

program immediately.
