Moxa V2406A-C2-W7E [71/85] V2406a w7e series system recovery

V2406A W7E Series System Recovery

8-5

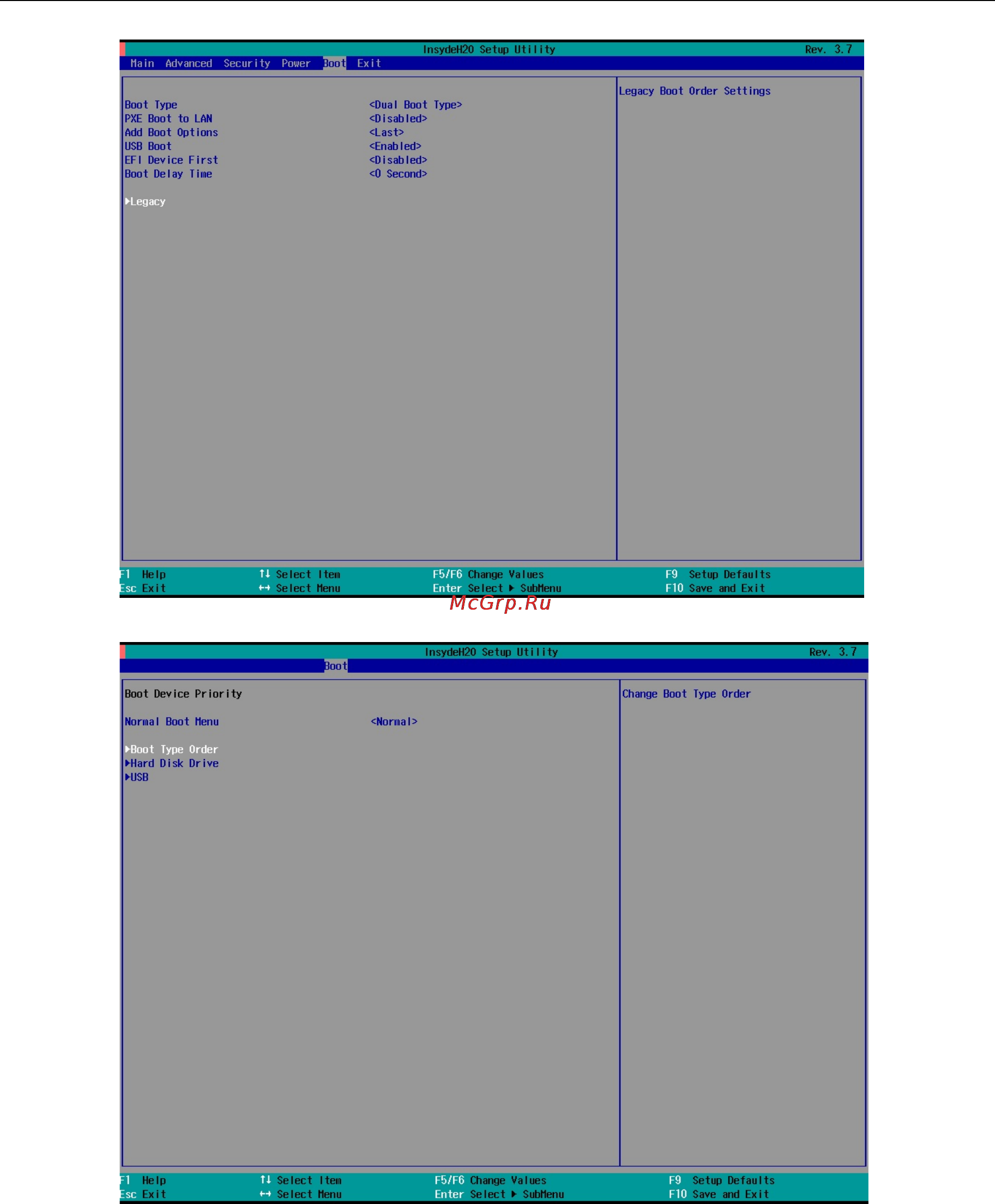

4. Use the up and down arrow keys to navigate to the Boot Type Order link; then, press [Enter].

5. Use the up and down arrow keys to navigate to the USB link; then, use the plus or minus (+/-) key to move

USB to the top of boot priority list.
