Moxa V2406A-C2-W7E [2/5] Hardware specifications

Moxa V2406A-C7 [2/5] Hardware specifications
Railway Computers
2
www.moxa.com

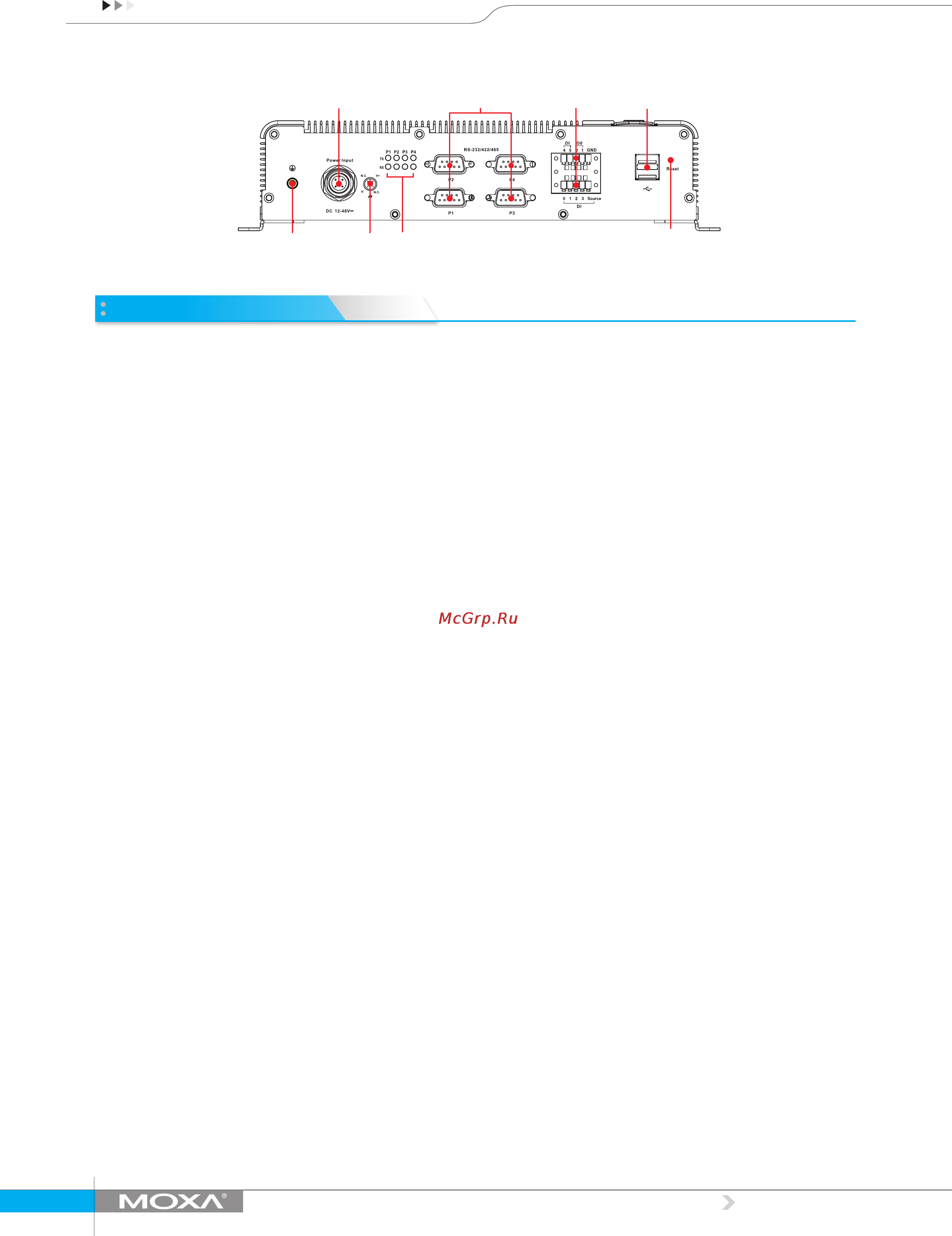

Rear View
Hardware Specifications
Serial Port x 4
(RS-232/422/485, DB9)
DI x 6
DO x 2
USB 2.0 Host x 2
(Type A)
Reset Button
Serial LEDs
(Tx, Rx)
Power Input
(M12 A-coded)
Power Input
Pin Assignment
Grounding
Connector
Computer
CPU:
• Intel Celeron 1047UE processor (2M cache, 1.40 GHz) for the
V2406A-C2 series
• Intel Core i7-3517UE processor (4M cache, 1.7 GHz) for the
V2406A-C7 series
OS: Windows Embedded Standard 7 or Linux Debian 7
System Chipset: Mobile Intel® HM65 Express
System Memory: 1 DDR3-1600 SO-DIMM SDRAM slot, 8 GB max., 4
GB pre-installed
USB: USB 2.0 hosts x 3 (Type A connectors x 2, supporting system
boot up, M12 connectors x 1)
Storage
HDD/SSD Support: 1 internal SATA-II bus for 2.5-inch HDD/SSD*
*Storage drive not included. To be purchased separately.
CFast Support: 1 slot for OS*, 1 slot for backup storage
*32-bit W7E requires at least an 8 GB CFast card
*64-bit W7E requires at least a 16 GB CFast card (optional)
*Linux Debian 7 requires at least an 8 GB CFast card (to be purchased
separately)
Other Peripherals
Audio: Line-in, line-out interface (M12 A-coded)
Display
Graphics Controller: Intel® HD Graphics 4000 (integrated)
Connector Type: 2 DVI-I connectors
Display Interface:
DVI up to 1920x1200 resolution @ 60 Hz
VGA up to 1920x1200 resolution @ 60 Hz
VGA up to 2048x1536 resolution @ 75 Hz
Ethernet Interface
LAN: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
Isolation Protection: 1.5 kV
Serial Interface
Serial Standards: 4 RS-232/422/485 ports, software selectable (DB9
male)
ESD Protection: 4 kV for all signals
Isolation Protection: 1.5 kV
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction
control) for RS-485
Baudrate: 50 bps to 921.6 kbps (non-standard baudrates supported;
see user’s manual for details)
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Digital Input
Input Channels: 6
Input Voltage: 0 to 30 VDC at 25 Hz
Digital Input Levels for Dry Contacts:
• Logic level 0: Close to GND
• Logic level 1: Open
Digital Input Levels for Wet Contacts:
• Logic level 0: +3 V max.
• Logic level 1: +10 V to +30 V (Source to DI)
Isolation: 3 kV optical isolation
Digital Output
Output Channels: 2, sink type
Output Current: Max. 200 mA per channel
On-State Voltage: 24 VDC nominal, open collector to 30 VDC
Connector Type: 10-pin screw-fastened Euroblock terminal (6 inputs,
2 outputs, DI Source, GND)
Isolation: 3 kV optical isolation
LEDs
System: Power, Storage
LAN: 2 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx and Rx)
Switches and Buttons
Power Switch: on/off (front panel)
Reset Button: For warm reboot (front panel)
Physical Characteristics
Housing: Aluminum
Weight: 2 kg (4.44 lb)
Dimensions:
Without ears: 250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in)
With ears: 275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in)
Mounting: Wall, DIN rail (optional), VESA (optional)
Environmental Limits
Operating Temperature*:
Standard models: -25 to 55°C (-13 to 131°F)
Wide temp. models: -40 to 70°C (-40 to 158°F)
Storage Temperature*: -40 to 85°C (-40 to 185°F)
*without HDD installed
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-Vibration: EN 50155 standard
Anti-Shock: EN 50155 standard
Conformal Coating: Available on request
Power Requirements
Input Voltage: 12 to 48 VDC (M12 A-coded)
Note: Compliant with EN 50155 at 24 VDC
Input Current:
• 3.3 A @ 12 VDC
• 0.82 A @ 48 VDC
Power Consumption: 40 W
