V2406A Hardware Manual BIOS Setup
4-3

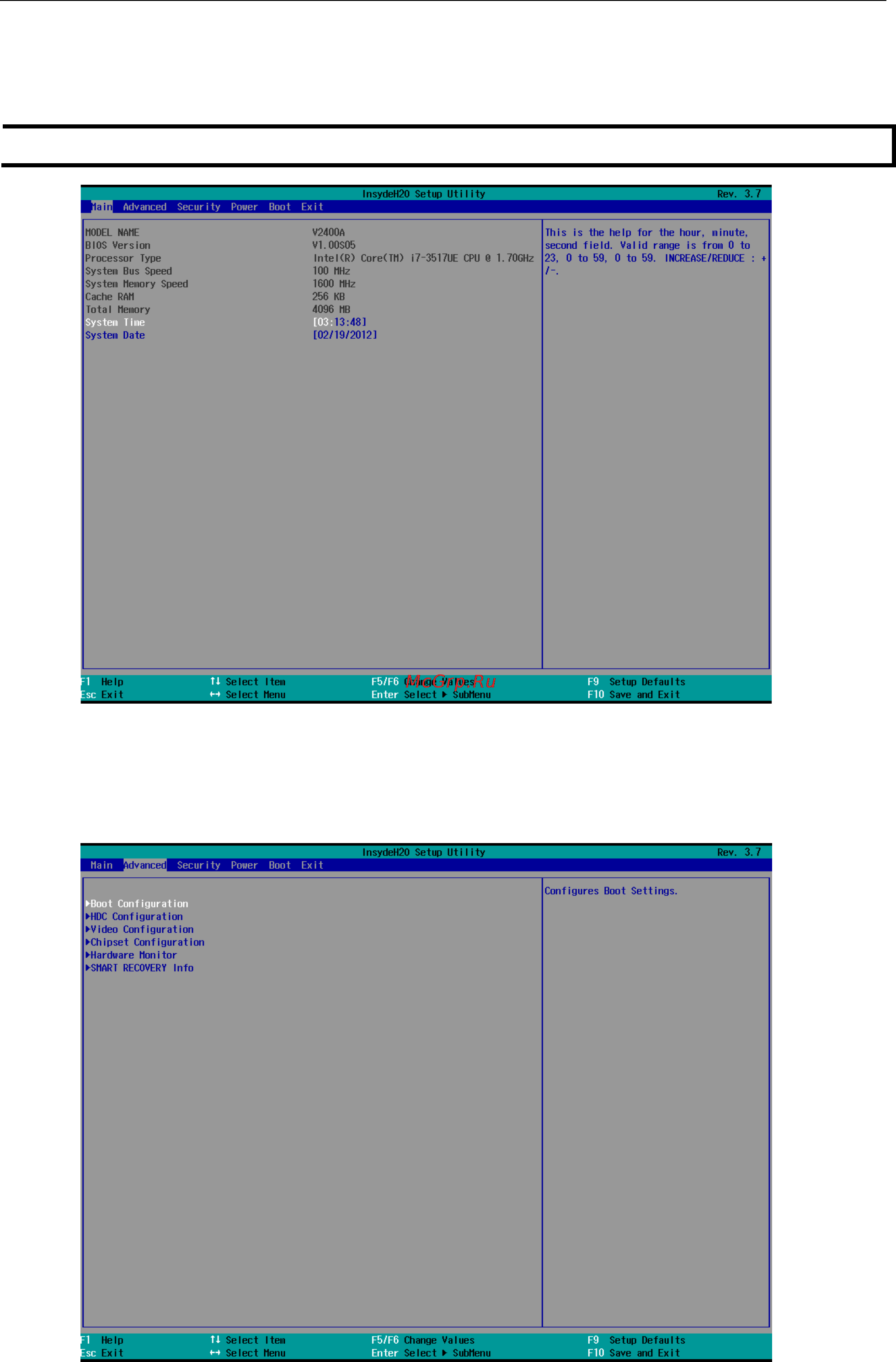

Main Information
The main page shows basic system information, such as the model name, BIOS version, and CPU type.
NOTE The “Processor Type” varies depending on the product model.
Advanced Settings
The Advanced screen appears when you select “Advanced” from the main menu.
